Brand：bobiller
Use: heating, domestic hot water supply
Rated capacity: 80L-300L
Refrigerant:R410A,R134A,R290
Product Features
All-in-one heat pump uses natural energy, no exhaust gas emission, no smoke emission, no toxic gas emission, keep the environment clean.
The product consumes less electricity, can absorb and use a large amount of heat energy in the air, low operating costs, saving a lot of electricity.
Products through the medium of heat exchange, no electric heating element and water contact, clean water, no fuel, no flammable and explosive poisoning.
The product can be installed in indoor and outdoor, balcony, etc., no need for professional machine room, easy and simple installation, can achieve multi-point water supply at the same time.
The product is controlled by microcomputer system, according to the need for timed temperature, automatic start and stop, with memory function, no need to manually guard.
OEM production services can be provided, there are three specifications to choose from, respectively, with 60L, 80L, 100L, 120L, 150L, 200L, 300L water tanks.
Product Parameter

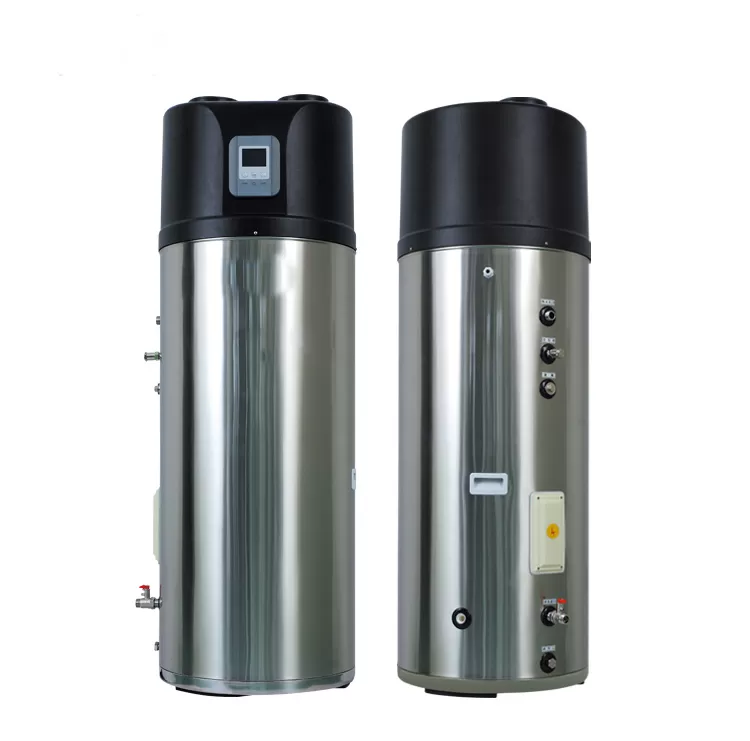

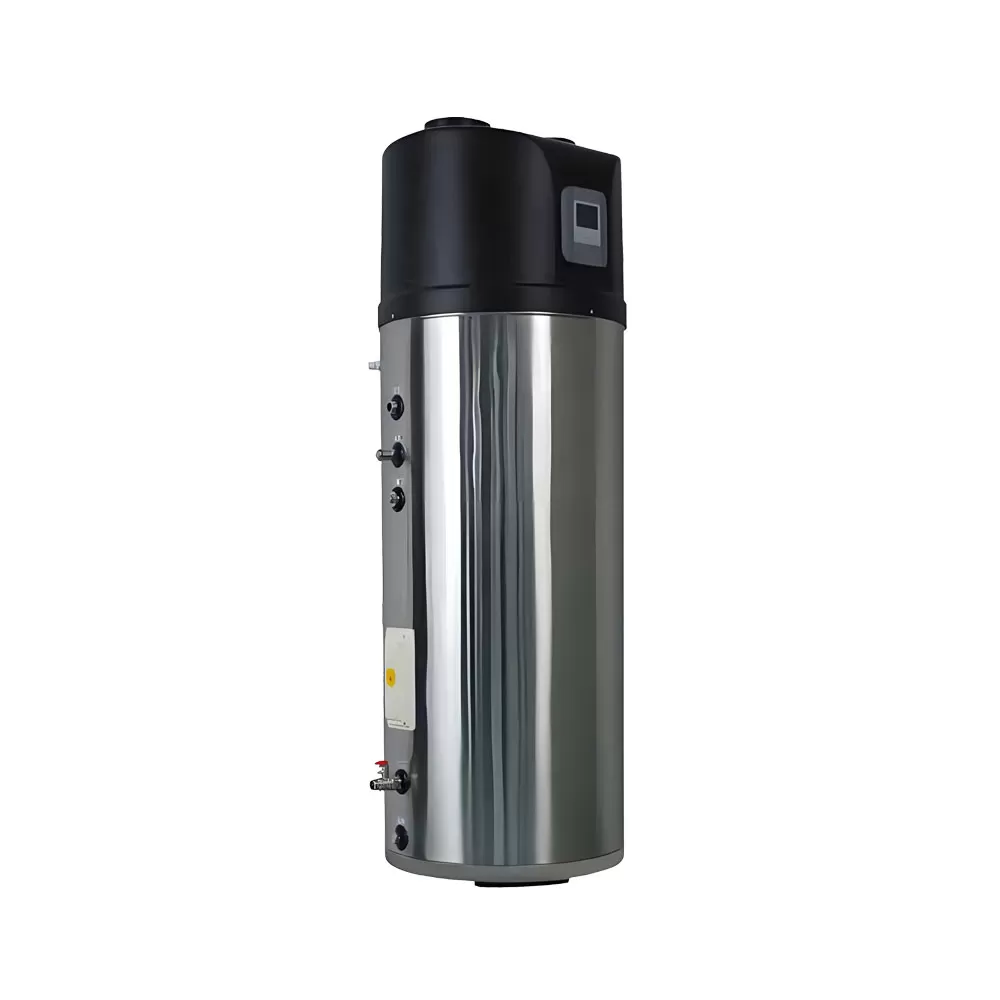

| Product name | All In One Heat Pump Water Heater | ||||
| Model | BO-10-150-C1-A | BO-10-150-C1-A | BO-10-200-C1-A | BO-10-250-C1-A | BO-10-300-C1-A |
| Rated volume capacity | 150L | 150L | 200L | 250L | 300L |
| Rated heating capacity | 3000W | 3000W | 3000W | 3000W | 3000W |
| Rated temperature | 55℃ | 55℃ | 55℃ | 55℃ | 55℃ |
| Max. temp. by heat pump | 55℃ | 55℃ | 55℃ | 55℃ | 55℃ |
| Max. temp. by E-heater | 75℃ | 75℃ | 75℃ | 75℃ | 75℃ |
| Rated power input by heat pump | 765W | 765W | 765W | 765W | 765W |
| Rated power input by E-heater | 1500W | 1500W | 1500W | 1500W | 1500W |
| Maximum power input | 2265W | 2265W | 2265W | 2265W | 2265W |
| Rated power supply | 220-240V/50Hz | ||||
| COP | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 |
| Compressor model | ASN89V1UDZ、PA103M1C-4DZDE2 | ||||
| Control Method | Wired Remote Controller | ||||
| Refrigerant | R410A | ||||
| Cold Water Inlet | 3/4-M(Can be customized) | ||||
| Hot Water Oulet | 3/4-M(Can be customized) | ||||
| Drain port | 1/2-M | ||||
| Mg Anode | Rp 3/4（Φ22*300MM） | ||||
| PT valve port | Rp 3/4 | ||||
| PT valve | 3/4-0.7Mpa-90℃ | ||||
| Tank rated pressure | 0.6Mpa | ||||
| Inner tank material | SUS304/Duplex 2205/Enameled Steel | ||||
| Condenser | Micro-Channel Heat Exchanger | ||||
| Outer material | Painted galvanized steel or stainless steel | ||||
| Insulation | polyurethane foam | ||||
| Insulation thickness | 50MM | ||||
| Noise dB(A) | 53 | ||||
| Sound pressure at 1 M （dB） | 38 | ||||
| Net weight | 52Kg | 52Kg | 60Kg | 66Kg | 75Kg |
| Net size | Φ520*1615MM | Φ560*1345MM | Φ560*1615MM | Φ560*1935MM | Φ650*1705MM |
| Package weight | 57Kg | 57Kg | 70Kg | 76Kg | 87Kg |
| Package size | 590*590*1715MM | 590*590*1445MM | 625*625*1715MM | 625*625*2035MM | 690*690*1805MM |
Q:What refrigerants are available for all in one heat pump?
A:R410A,R134A,R290.
Q：Can we make our own brand of all-in-one heat pump?
A:Yea,we can, make your logo . OEM
Q: What is your terms of payment for domestic hot water tank for heat pump ?
A: T/T ,balance before shipment. AIibaba trade assurance payment available.
