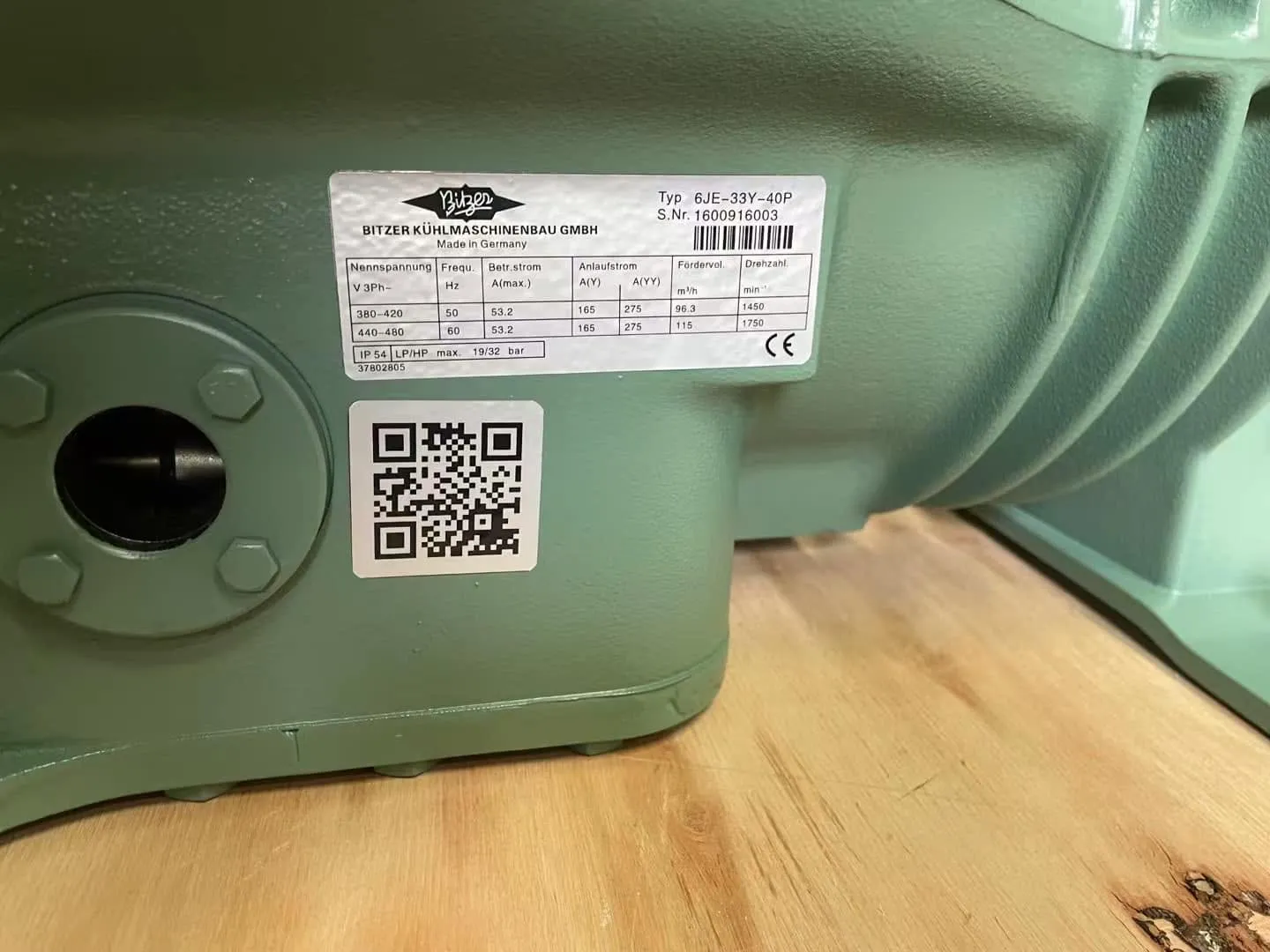

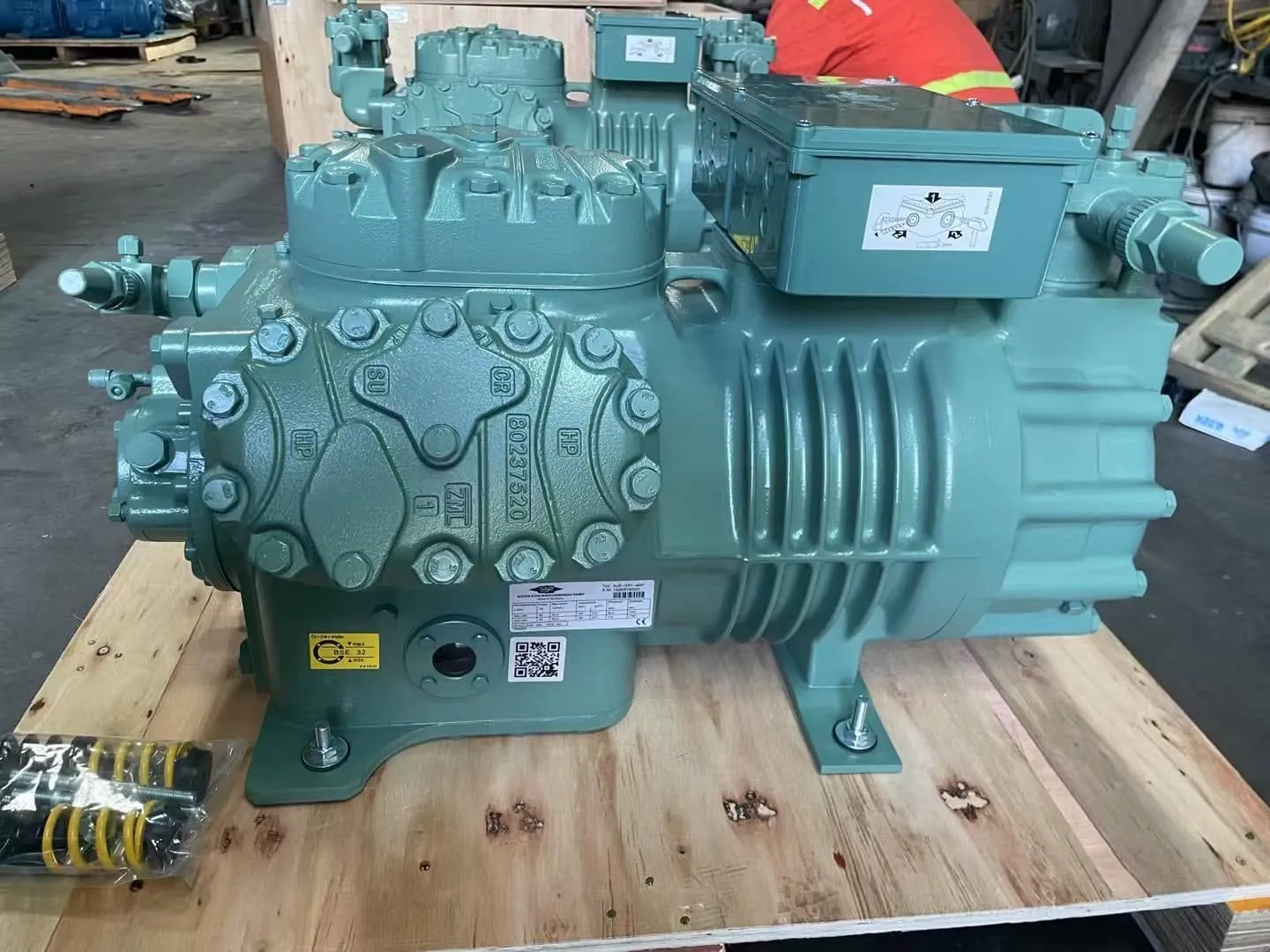

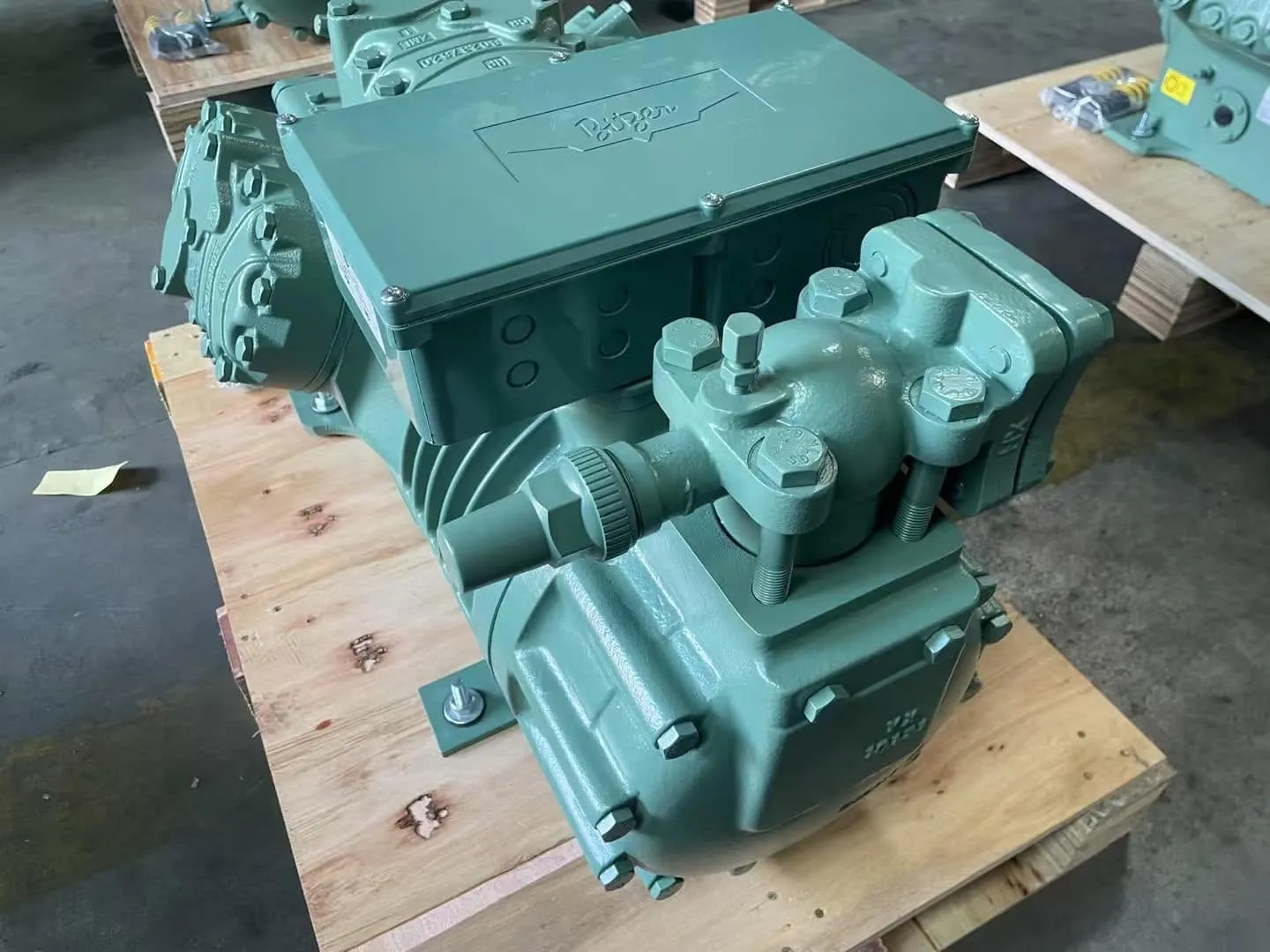

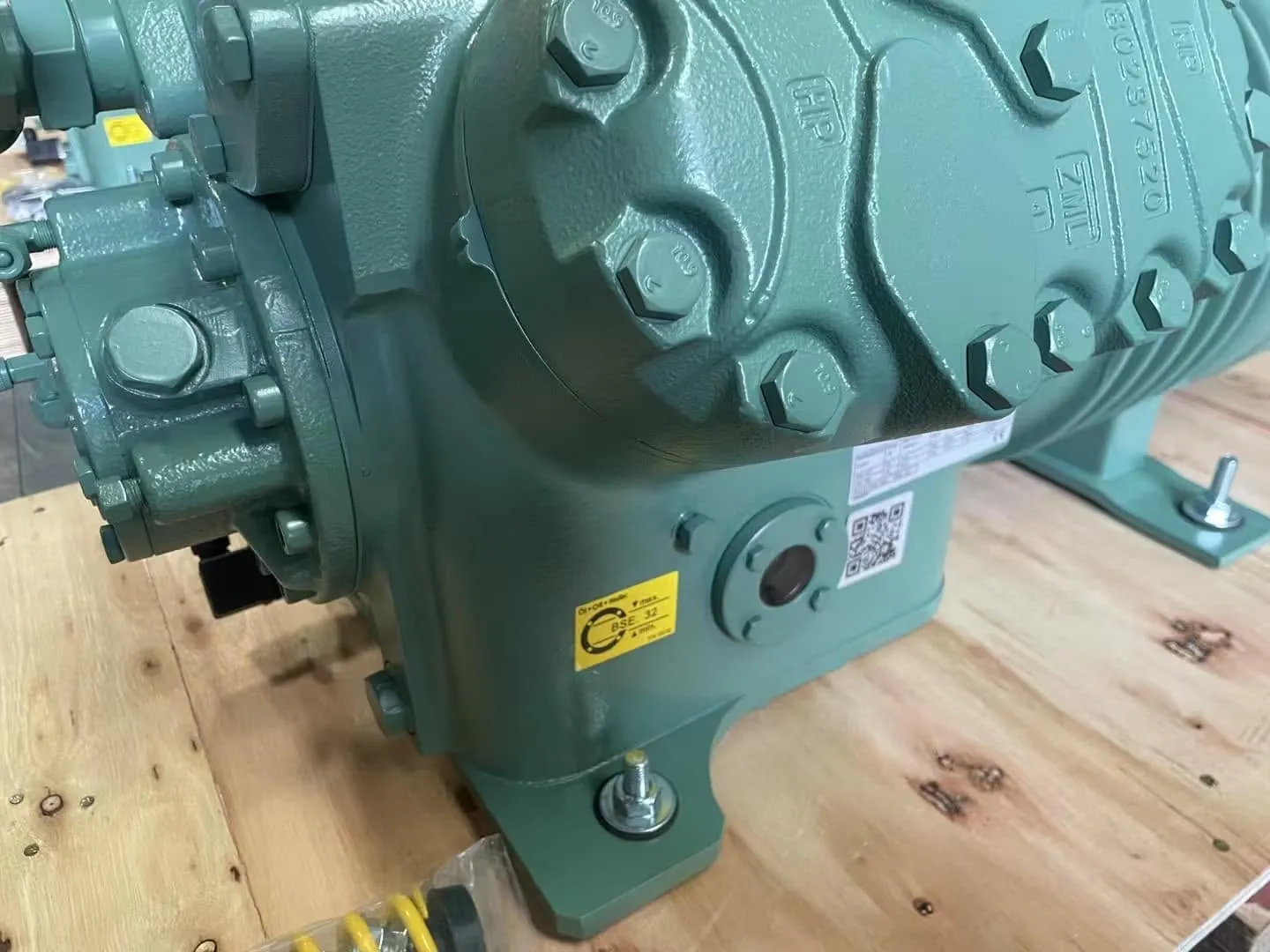

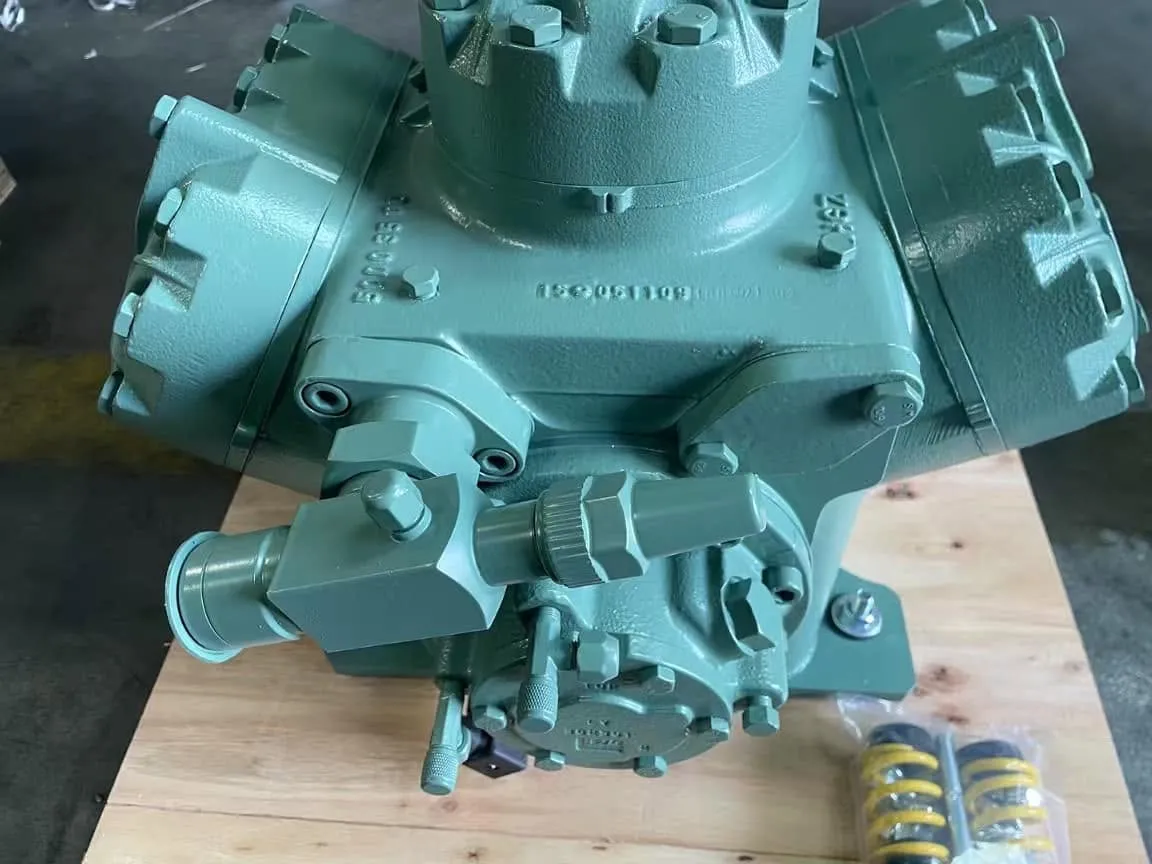

6JE-33Y-40P Semi-hermetic Reciprocating Compressor for Cold Room

 ECOLINE 6JE-33Y-40P Semi-hermetic Reciprocating Compressor

The  6JE-33Y-40P is a highly efficient semi-hermetic reciprocating compressor designed for industrial cold rooms, commercial refrigeration, and condensing units. It is the modern Ecoline replacement for the older 6J-33.2Y model.

Technical ParameterSpecification Details
 Model 6JE-33Y-40P (ECOLINE Series)
Replaces Old Model6J-33.2Y
Number of Cylinders6
Displacement (50Hz / 60Hz)95.3 m³/h / 115.02 m³/h
Nominal Power (HP)33 HP
Compatible RefrigerantsR404A, R134a, R507A, R407A, R407F
Voltage / Frequency380–420V / 3 Phase / 50Hz
Max Operating Current53.2 A
Oil Charge4.75 dm³ (BSE32 Ester Oil)
Net Weight244 kg


 ECOLINE 6JE-33Y-40P Semi-hermetic Reciprocating Compressor

The  ECOLINE 6JE-33Y-40P is a premium, highly efficient semi-hermetic reciprocating compressor engineered for industrial cold storage, commercial refrigeration systems, and parallel condensing units. As part of the advanced ECOLINE series, it provides optimal energy efficiency and outstanding reliability. This model is the official modern upgrade and direct replacement for the older 6J-33.2Y compressor.

???? Key Features & Product Highlights

• High Energy Efficiency: Optimized valve plates and low flow resistance design minimize energy consumption while maximizing cooling capacity.

• Eco-Friendly & Versatile: Fully compatible with mainstream refrigerants including R404A, R134a, R407A, R407F, and R507A.

• Flexible Capacity Control: Supports VARISTEP for 10%–100% stepless capacity regulation or traditional 100-66-33% cylinder unloading.

• Robust Design: Engineered with a wear-resistant drive gear, high-quality internal motor protection, and heavy-duty 6-cylinder construction for an extended service life.

???? Technical Specifications Table

Technical Parameter

Specification Details

 Model

 6JE-33Y-40P (ECOLINE Series)

Replaces Old Model

6J-33.2Y

Number of Cylinders

6

Displacement (50Hz)

95.3 m³/h

Displacement (60Hz)

115.02 m³/h

Nominal Power

33 HP

Voltage / Frequency

380–420V / 3 Phase / 50Hz

Max. Operating Current

53.2 A

Oil Charge

4.75 dm³ (Pre-charged with BSE32 Ester Oil)

Pipe Connections

Suction Line: 54 mm (2 1/8”) | Discharge Line: 35 mm (1 3/8”)

Net Weight

244 kg

Dimensions (L x W x H)

797 mm × 503 mm × 447 mm
Product Link:https://www.alibaba.com/product-detail/6JE-33Y-40P-Semi-hermetic-Reciprocating_1601954528914.html?spm=a2700.micro_product_manager.0.0.5d083e5fL7JzGm
