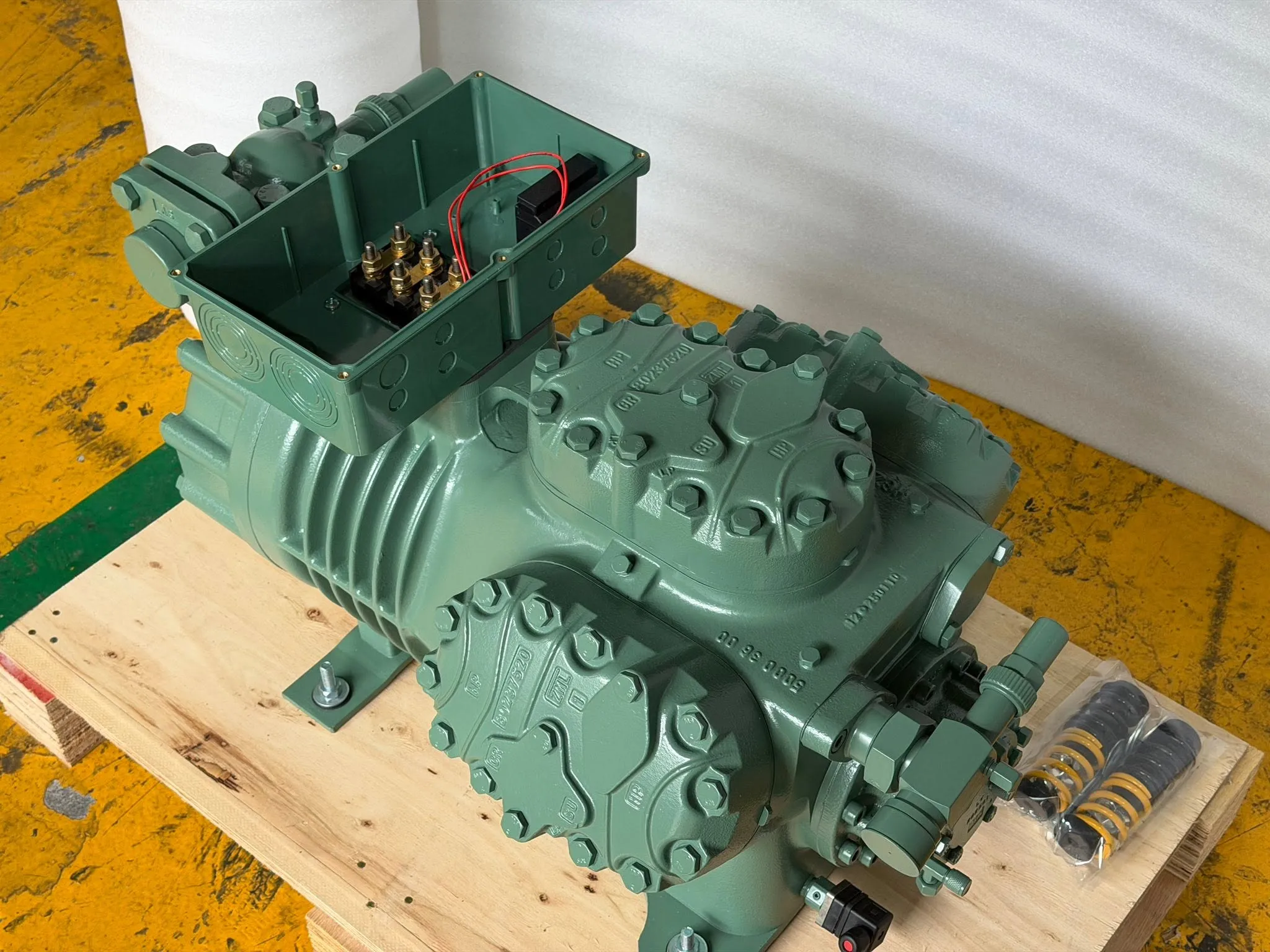

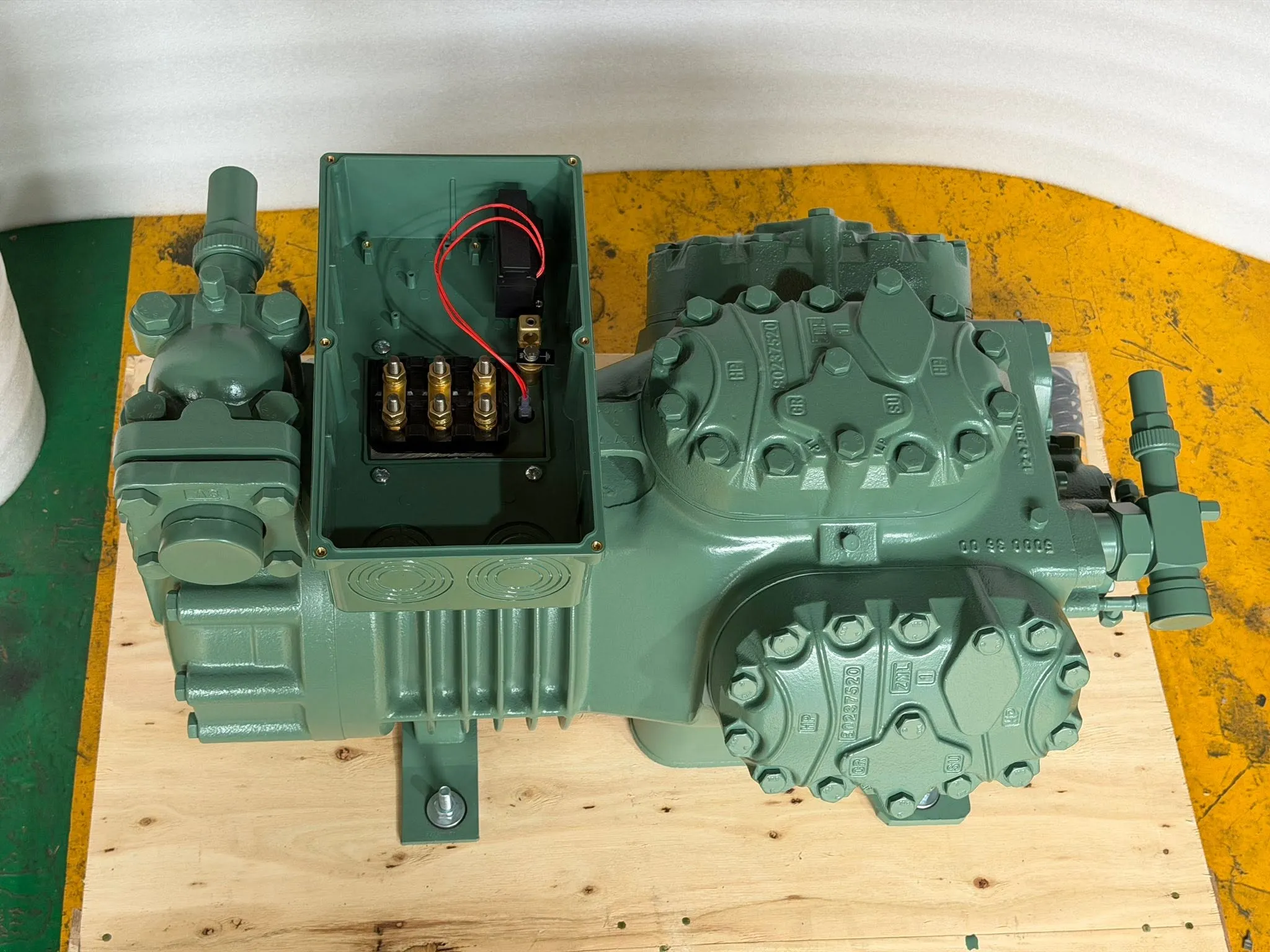

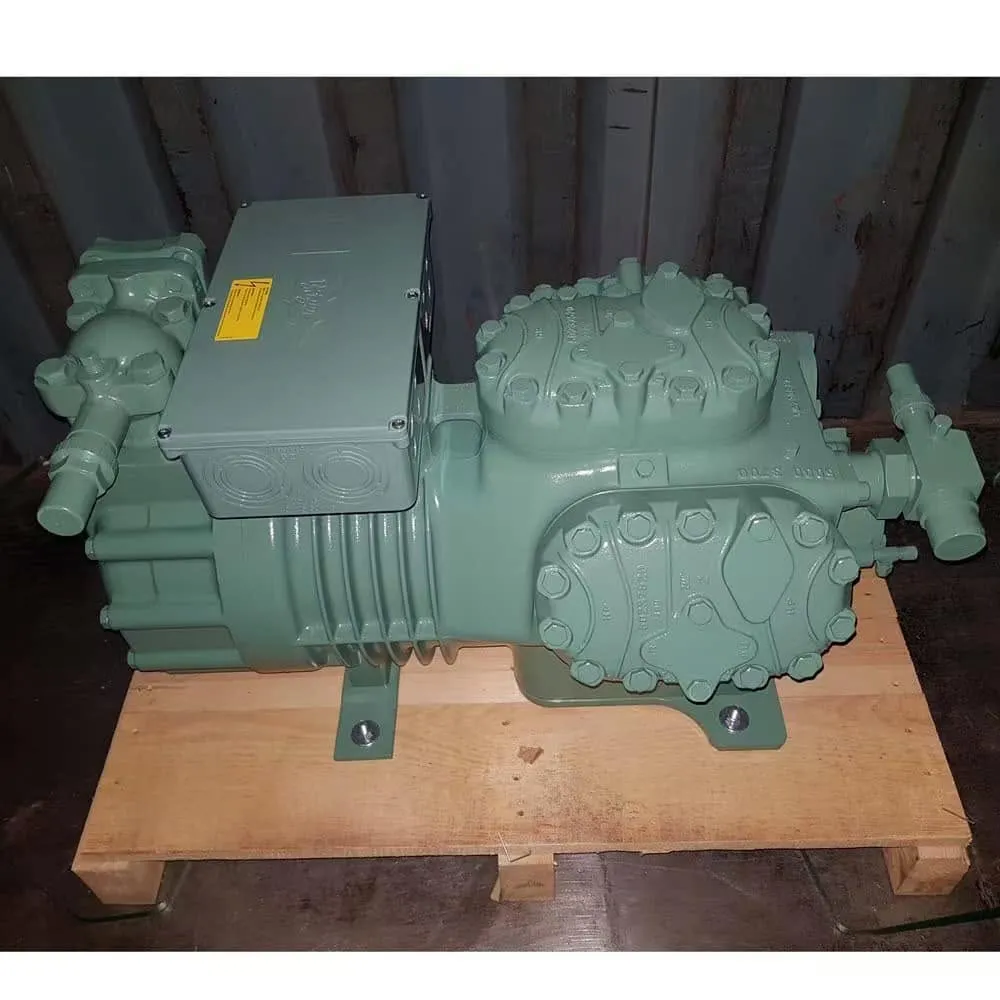

Brand new Bitzer Ecoline 40HP Semi-hermetic Piston Compressor 6GE-40Y-40P
Product Overview
The Bitzer 6GE-40Y-40P is a high-efficiency Ecoline series semi-hermetic reciprocating compressor. Engineered for outstanding performance, reliability, and versatility, it is widely used in medium and low-temperature commercial refrigeration, cold storage facilities, parallel rack systems, and industrial water chillers. It serves as the direct upgraded replacement for the legacy model 6G-40.2Y.

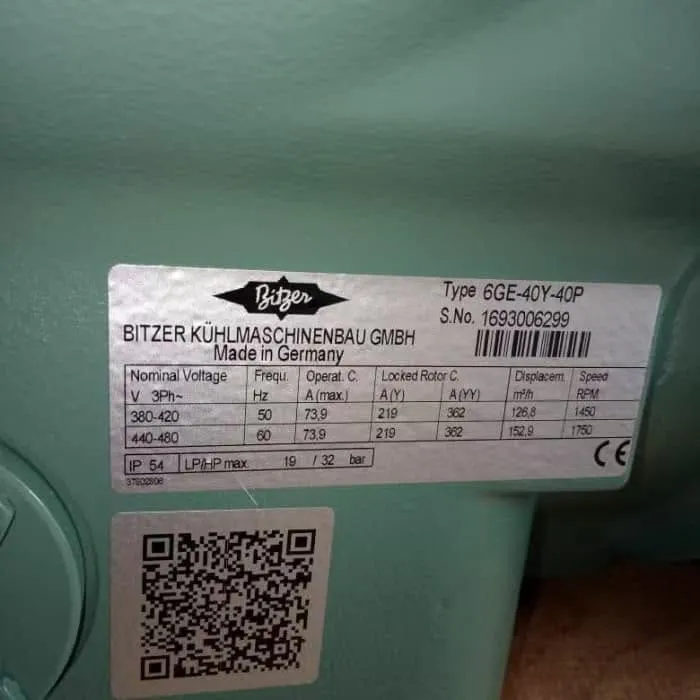

| Category | Technical Parameter | Specification Value |
|---|---|---|
| Basic Info | Brand | Bitzer (100% Original Genuine) |
| Model Number | 6GE-40Y-40P | |
| Legacy Model Replacement | 6G-40.2Y | |
| Compressor Type | Semi-hermetic Reciprocating / Piston | |
| Motor Horsepower | 40 HP | |
| Number of Cylinders | 6 | |
| Performance | Displacement @ 50 Hz | 126.8 m³/h |
| Displacement @ 60 Hz | 153.0 m³/h | |
| Compatible Refrigerants | R404A, R134a, R407F, R448A, R449A, R507A | |
| Capacity Control | 100% - 50% (Standard) / 10% - 100% (VARISTEP Optional) | |
| Electrical Data | Voltage / Frequency | 380V-420V YY / 440V-480V YY - 3Ph - 50/60Hz |
| Starting Method | Part Winding (PW) | |
| Max. Operating Current | 73.9 A | |
| Max. Power Input | 42.0 kW | |
| Locked Rotor Current (LRA) | 219.0 A | |
| Motor Protection Module | SE-B3 (Standard Integrated) | |
| Enclosure Class | IP54 (Standard) / IP65 (Optional) | |
| Lubrication | Oil Charge Capacity | 4.75 dm³ (Liters) |
| Standard Lubricant Oil | BSE32 (Ester Oil for HFC refrigerants) | |
| Physical Specs | Net Weight | 238 kg |
| Dimensions (L x W x H) | 797 x 503 x 447 mm | |
| Suction Line Connection | 54 mm - 2 1/8" | |
| Discharge Line Connection | 35 mm - 1 3/8" | |
| Applications | Target Systems | Cold storage rooms, blast freezers, parallel racks, water chillers |
| Logistics | Standard Packaging | Export-standard seaworthy wooden case / pallet |
