4CES-9Y-40S Semi-hermetic Reciprocating Compressor
As a global benchmark in commercial refrigeration, the German Bitzer Ecoline series semi-hermetic reciprocating compressors combine high energy efficiency, robust durability, wide applications, and smooth operation. The 4CES-9Y-40S model is widely used in cold chain logistics, medium-and-low temperature cold storage, food processing, and various commercial refrigeration units, making it the trusted choice for contractors and wholesalers worldwide.
???? Technical Specifications
• Brand: Bitzer (Germany)
• Model: 4CES-9Y-40S (Ecoline Series)
• Number of Cylinders: 4
• Displacement (50Hz): 32.48 m³/h
• Displacement (60Hz): 39.20 m³/h
• Motor Version: 1 (Optimized for medium/low temperature and various conditions)
• Oil Type: BSE32 (Synthetic ester oil for HFC eco-friendly refrigerants)
• Compatible Refrigerants: R134a, R404A, R507A, R407A, R407F, etc.
???? Core Product Advantages
1. Outstanding Energy Efficiency: Features a cutting-edge valve plate design, low internal flow resistance, and a highly efficient motor, ensuring exceptional performance under both full and part load operations.
2. Superior Durability: High wear-resistant drive gear design and a compact, robust body ensure an ultra-long service life, effectively minimizing subsequent maintenance costs.
3. Low Noise & Smooth Running: Precision dynamic balance optimization ensures extremely low vibration and quiet operation during peak workloads.
4. Eco-Friendly Compliance: Fully compatible with mainstream eco-friendly refrigerants, helping your refrigeration projects meet strict energy efficiency and environmental audits.
???? Packaging & Global Logistics Services
We provide standard export wooden box packaging for maximum safety. Cargo can be dispatched via border ports such as Horgos or major seaports to Central Asia, the Middle East (Turkey), Europe, and worldwide with reliable logistics tracking.
Contact our online sales or submit an inquiry today for the latest Bitzer 4CES-9Y-40S price quote, datasheets, or wholesale distribution options.
Would you like me to translate this content into Turkish or Russian to target your clients in Turkey or Central Asia more effectively? Let me know which languages or specific currencies/price details you need to add.
Here is the fully English version of the Product Details page. All Chinese characters and translations have been completely removed, making it ready to be copied and pasted directly into your global e-commerce or independent storefront platform:
Product Detail
General Information
• Brand / Manufacturer: Bitzer (Germany)
• Model Name: 4CES-9Y-40S
• Series: ECOLINE Series (Semi-hermetic Reciprocating Compressor)
• Application: Medium & Low Temperature Refrigeration (Commercial Cold Storage, Cold Chain Logistics, Supermarket Chillers)
Technical Specifications
Feature Specification Data
Number of Cylinders 4
Displacement @ 50 Hz 32.48 m³/h
Displacement @ 60 Hz 39.20 m³/h
Bore / Stroke 55 mm / 39.3 mm
Weight 91 kg
Max. Pressure (LP/HP) 19 / 32 bar
Connection Suction Line 28 mm - 1 1/8"
Connection Discharge Line 22 mm - 7/8"
Electrical Data
• Motor Voltage / Frequency: 380-420V YY / 3 / 50Hz | 440-480V YY / 3 / 60Hz
• Max. Operating Current: 18.0 A
• Starting Current (Rotor Locked): 81.0 A
• Motor Protection Class: IP65
• Enclosure / Protection Module: SE-B1 (Standard Motor Protection Module)
Oil & Refrigerant Management
• Oil Charge: 2.00 dm³ (Liters)
• Oil Type: BSE32 (Synthetic Ester Oil - for HFC refrigerants)
• Alternative Oil Type: B5.2 (For CFC/HCFC refrigerants like R22)
• Compatible Refrigerants: R134a, R404A, R507A, R407A, R407F, R22
Standard Delivery & Accessorie
Standard Equipment:
• Integrated Varistep capacity control ready structure
• Oil charge (BSE32)
• Protective gas charge
• Electronic motor protection module (SE-B1)
Optional Accessories (Available upon request):
• Crankcase heater
• Additional fan
• Discharge gas temperature sensor
• Mechanical oil pressure switch
Packaging & Shipping Details
• Packaging: Standard export sea-worthy / land-worthy wooden case
• Port of Loading: Major ports in China / Border Land Ports (including Horgos Port for Central Asia and Middle East routes)
• Delivery Lead Time: Stock available for immediate dispatch
Bobiller, The Best Mate!
Our company offers a complete line of heat pump units and refrigeration equipment systems, as well as refrigeration compressors, copper fittings, expansion valves, dual-measure gauges, and other accessories and tools, so you can get everything you need for the refrigeration industry in one place. And we can provide you with customized manufacturing services.
Professional HVAC Manufacturer: Premium Heat Pumps, Compressors & Buffer Tanks OEM/ODM Factory
As a leading HVAC products manufacturer, we provide reliable, fully-tested residential, commercial, and industrial solutions, including state-of-the-art heat pumps, water tanks, and refrigeration compressors with global shipping support.
Oct. 09, 2026
Copeland ZR81KCE-TFD-422 Scroll Compressor For Air Conditioning
We supply Copeland ZR81KCE-TFD-422 scroll compressor, 7HP, R407C, suitable for commercial air conditioning and heat pump systems. It is a popular model for HVAC aftermarket replacement.
Sep. 28, 2026
500L Domestic Hot Water Tank: The Ultimate Specification & Installation Guide
This technical article provides a comprehensive overview of our 500L multi-port domestic hot water storage tank. It includes complete structural layout details, precise port measurements (inlets, outlets, sensor ports, and recirculation paths), and essential installation guidelines for HVAC and plumbing engineers.
Sep. 23, 2026
Ground Source Heat Pump: Working Principles and Energy-Saving Benefits •
This article provides a comprehensive guide to Ground Source Heat Pump (GSHP) systems. We explore how they harvest geothermal energy to deliver efficient indoor climate control, highlighting their exceptional energy efficiency, lower carbon footprints, and long-term financial returns for modern sustainable buildings.
Sep. 23, 2026
Mitsubishi LNB65FAEMC Scroll Compressor for Commercial Refrigeration
The Mitsubishi LNB65FAEMC scroll compressor is designed for medium temperature commercial refrigeration applications. It features stable operation, compact structure and long service life for refrigeration units.
Sep. 17, 2026
Bulk Supply of Premium Commercial Refrigeration Compressors | 100% brand new & Ready to Ship

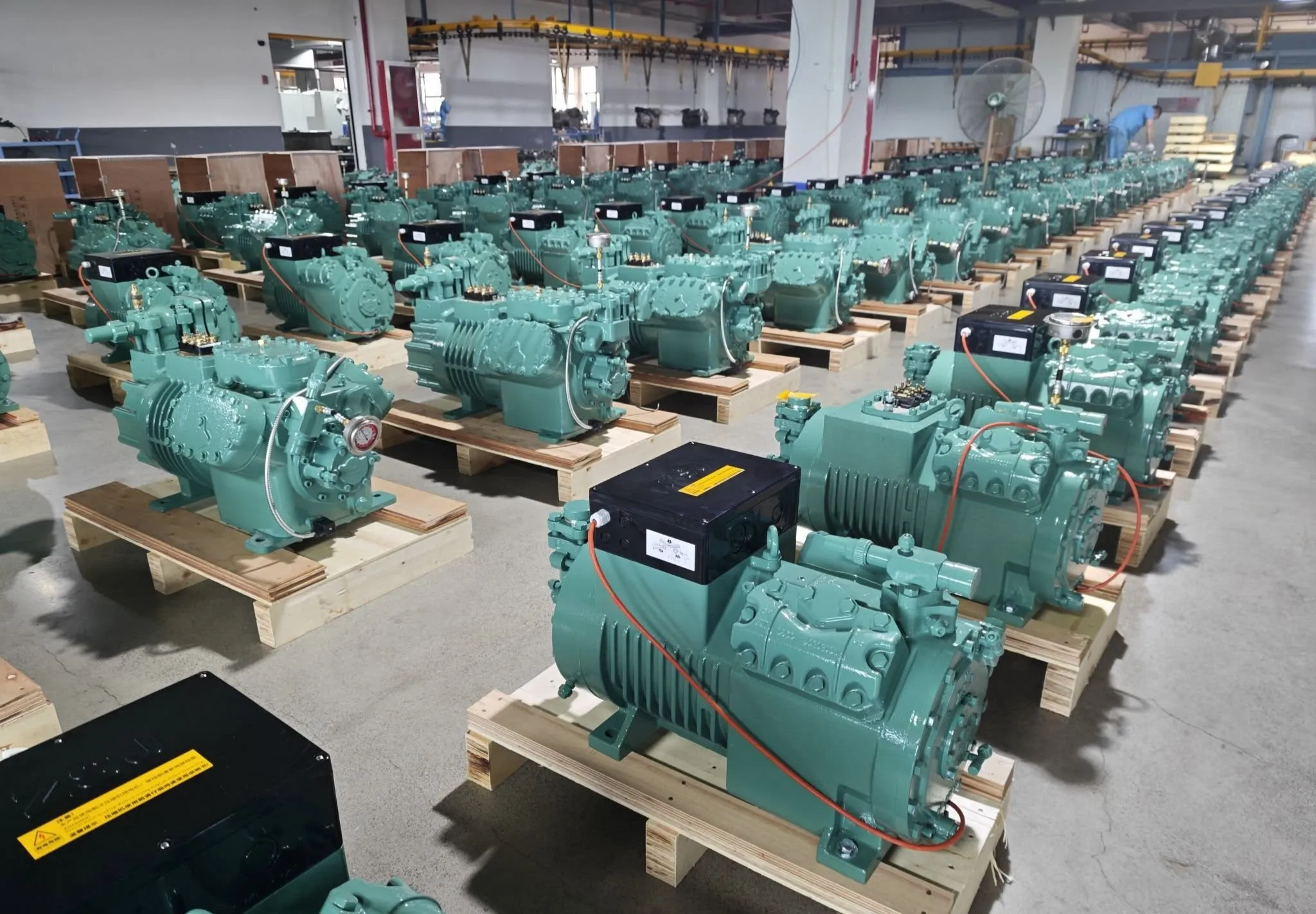

A glance inside our modern logistics and warehousing center, packed with rows of heavy-duty semi-hermetic and scroll refrigeration compressors. As a leading cooling equipment provider, we offer bulk wholesale distribution to support cold chain engineering, commercial refrigeration projects, and global HVAC contractors.
