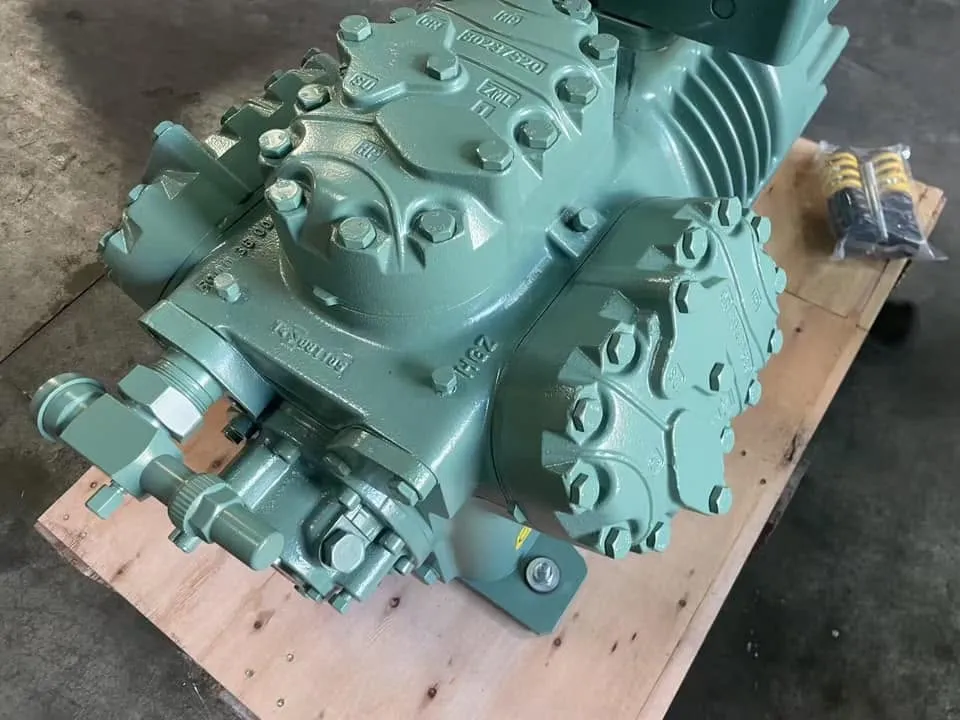

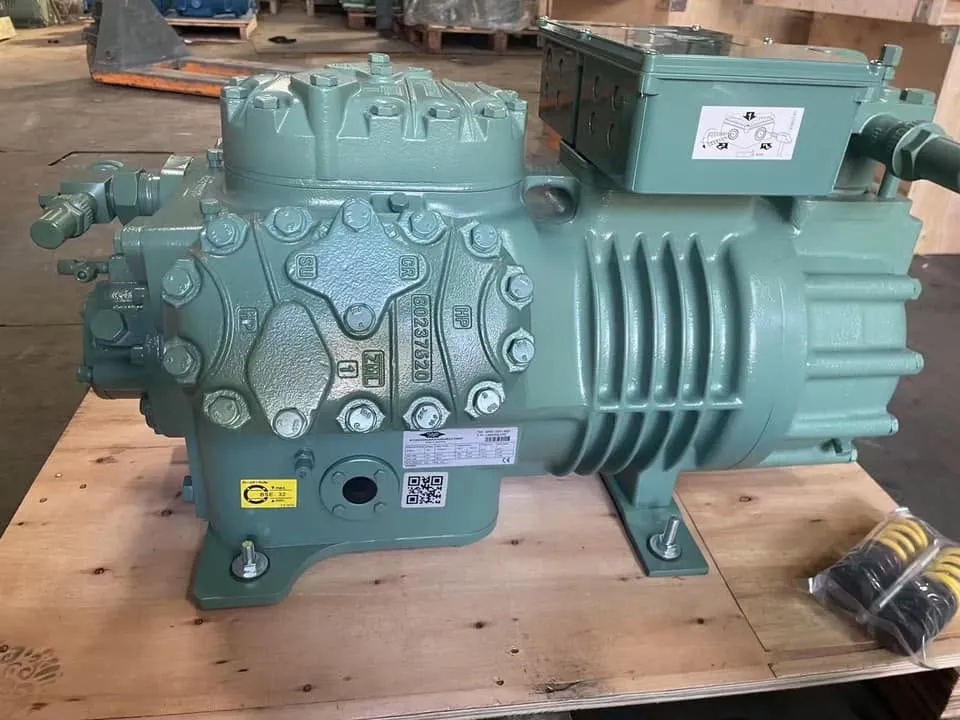

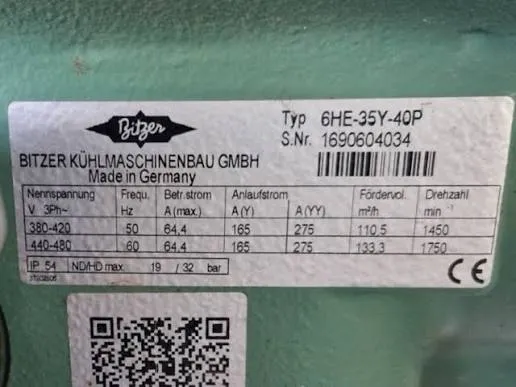

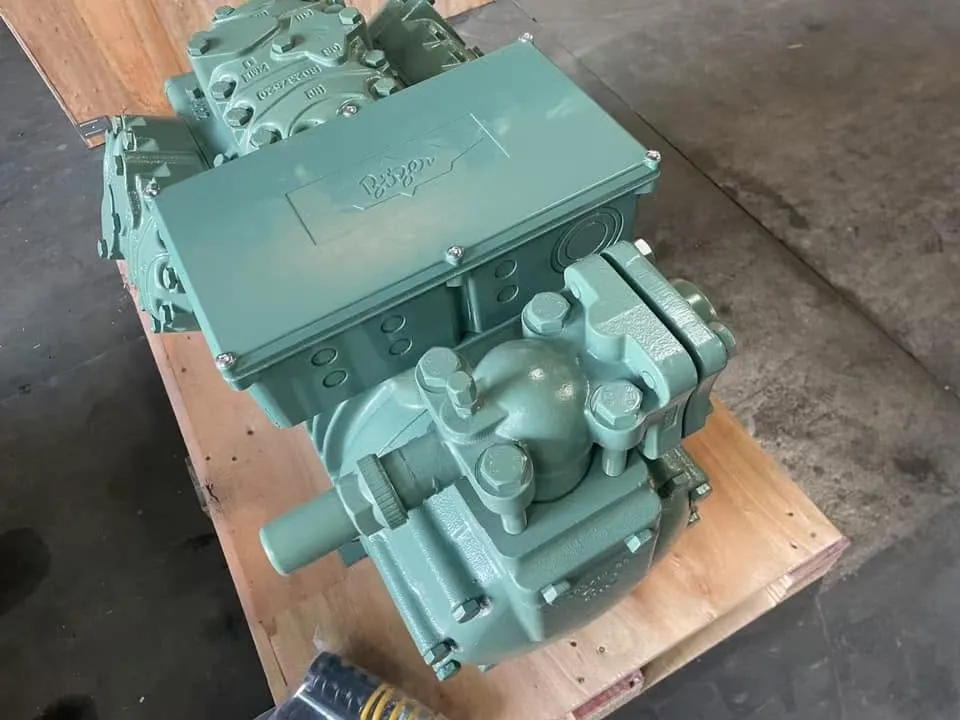

BITZER 6HE-35Y-40P Full Technical Specifications
| Item | Parameter |
|---|---|
| Brand | BITZER ECOLINE Semi-Hermetic Reciprocating Compressor |
| Model | 6HE-35Y (Standard voltage suffix: 6HE-35Y-40P) |
| Power Rating | 35 HP, 6-cylinder |
| Cylinder Structure | 6 cylinders, Bore 70 mm, Stroke 55 mm |
| Rated Speed | 50Hz: 1450 rpm; 60Hz: 1750 rpm |
| Displacement @50Hz | 110.5 m³/h |
| Displacement @60Hz | 133.4 m³/h |
| Net Weight | 235 kg |
| Application | Medium & low temperature cold storage, walk-in freezer, chiller, parallel condensing unit, heat pump, industrial refrigeration |
| Compatible Refrigerants | R404A, R507A, R134a, R407A/C/F, R22, R1234yf, R1234ze |
| Category | Detailed Content |
|---|---|
| Product Overview | The BITZER 6HE-35Y-40P is a high-efficiency semi-hermetic reciprocating refrigeration compressor from the industry-renowned ECOLINE series, engineered to provide stable, reliable, and energy-saving power for modern commercial and industrial refrigeration systems. Compared to the previous generation series, this model delivers an average 6% increase in COP refrigeration performance, with a maximum improvement of up to 12%, meeting the high efficiency and low energy consumption requirements of global refrigeration applications. |
| Core Specifications | • Brand: BITZER• Model: 6HE-35Y-40P• Cylinder Configuration: 6 cylinders, bore 70mm × stroke 55mm• Displacement: 110.5m³/h (50Hz/1450rpm); 133.4m³/h (60Hz)• Maximum Power: 36.0kW, maximum operating current 64.4A• Compatible Refrigerants: R134a, R404A, R407 series, R22, R1234yf and other common refrigerants• Net Weight: Approx. 235-241kg |
| Core Product Advantages | 1. High Efficiency & Energy Saving: Optimized valve plate and flow channel design reduces internal flow resistance and exhaust pulsation, significantly improving COP refrigeration performance and reducing long-term operating costs.2. Strong Refrigerant Compatibility: Supports multiple mainstream refrigerants including low-GWP environmentally friendly refrigerants, adapting to different regional environmental regulations and application temperature requirements.3. Stable & Durable Structure: Classic semi-hermetic piston structure with high-strength cast iron body, sturdy and wear-resistant, suitable for long-term continuous operation in complex industrial environments.4. Easy Maintenance & Operation: Standardized modular design, simple oil filling, filter replacement and routine maintenance operations, with complete global technical support and spare parts supply system. |
| Application Scenarios | This BITZER 6HE-35Y-40P compressor is widely used in global commercial and industrial refrigeration fields, including but not limited to:• Cold room and cold storage refrigeration equipment• Air-cooled and water-cooled water chiller units• Industrial process refrigeration and cooling systems• Commercial central air conditioning and heat pump systems• Low-temperature freezing and refrigerated transport equipment |
