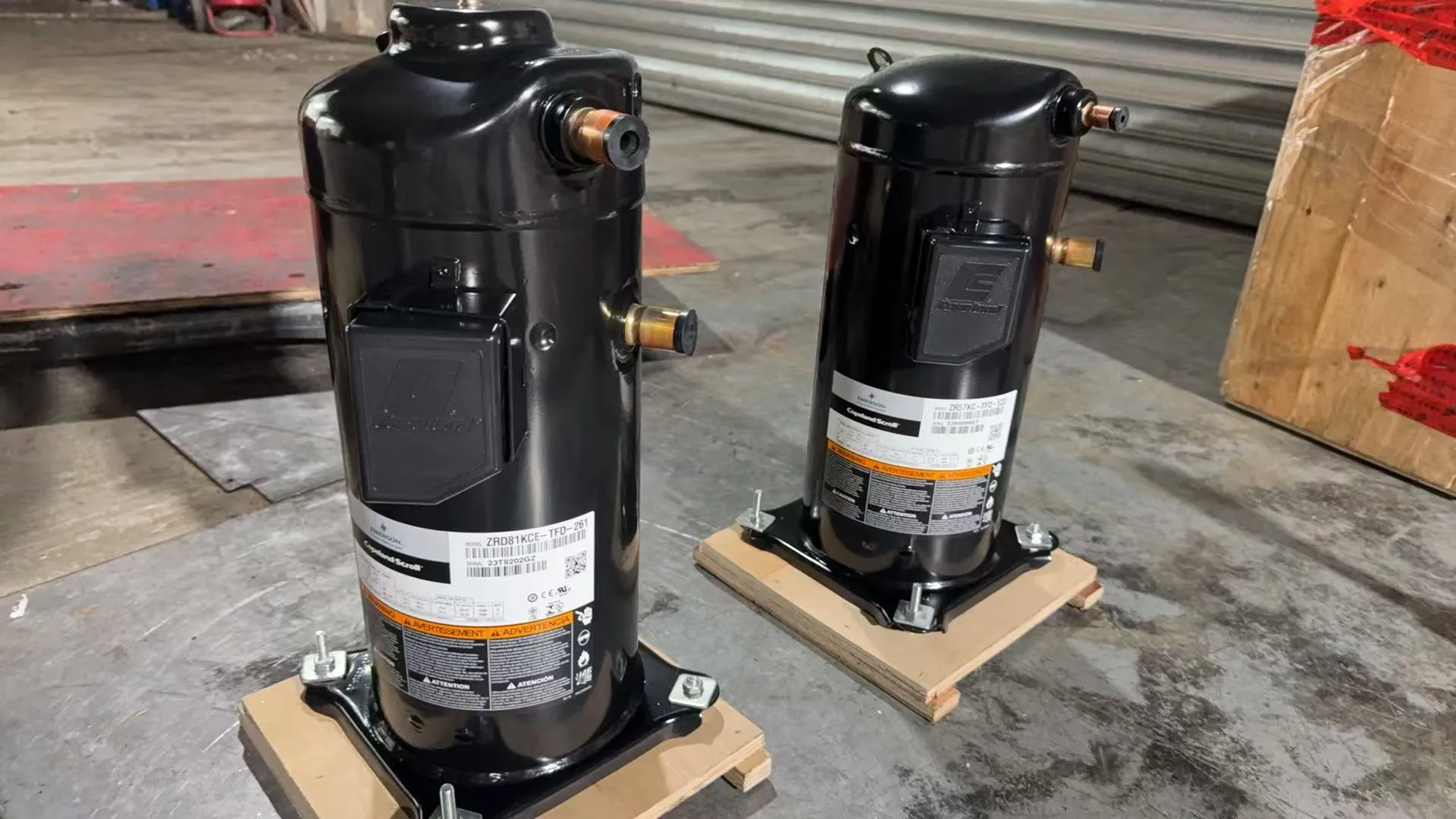

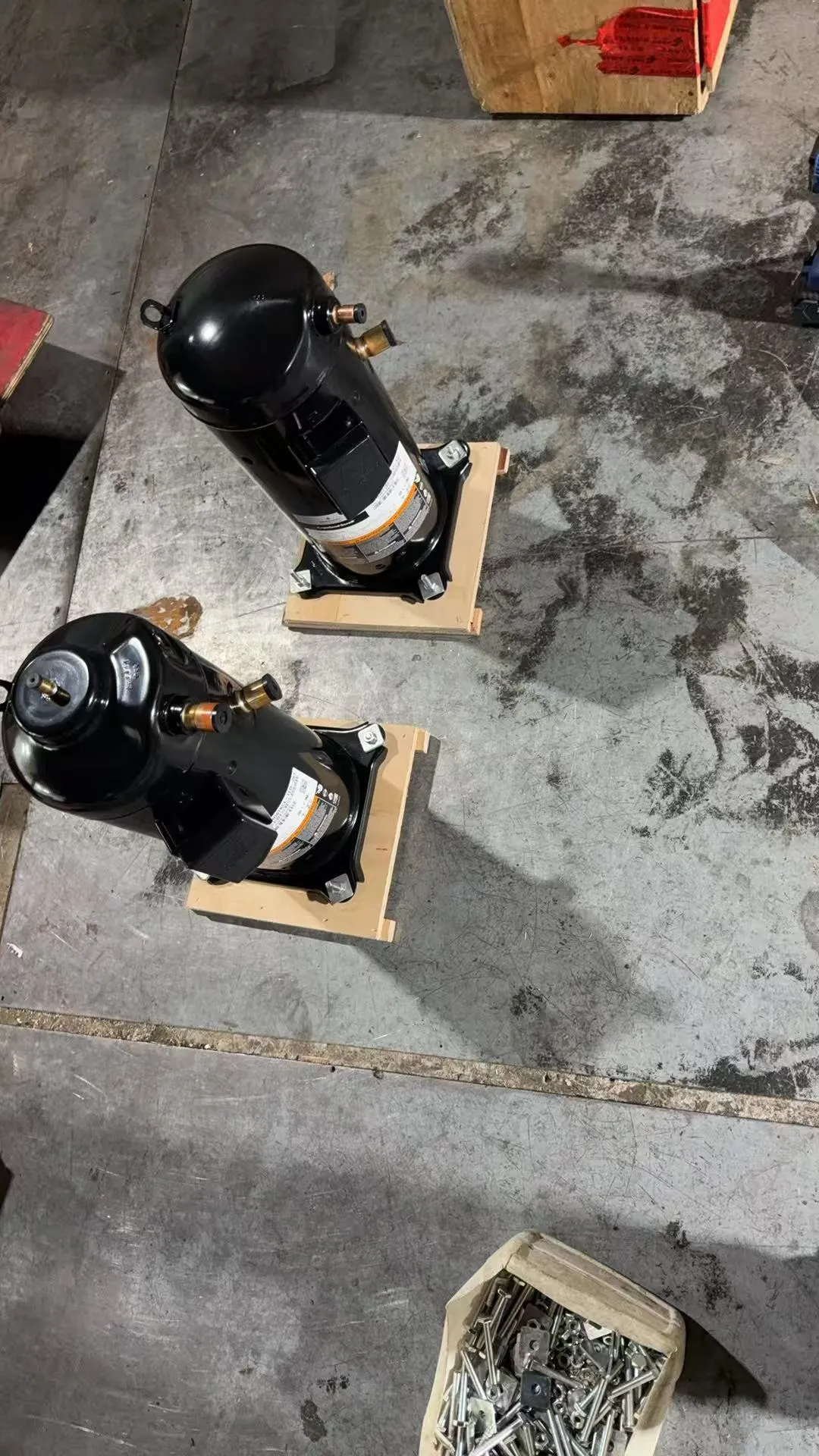

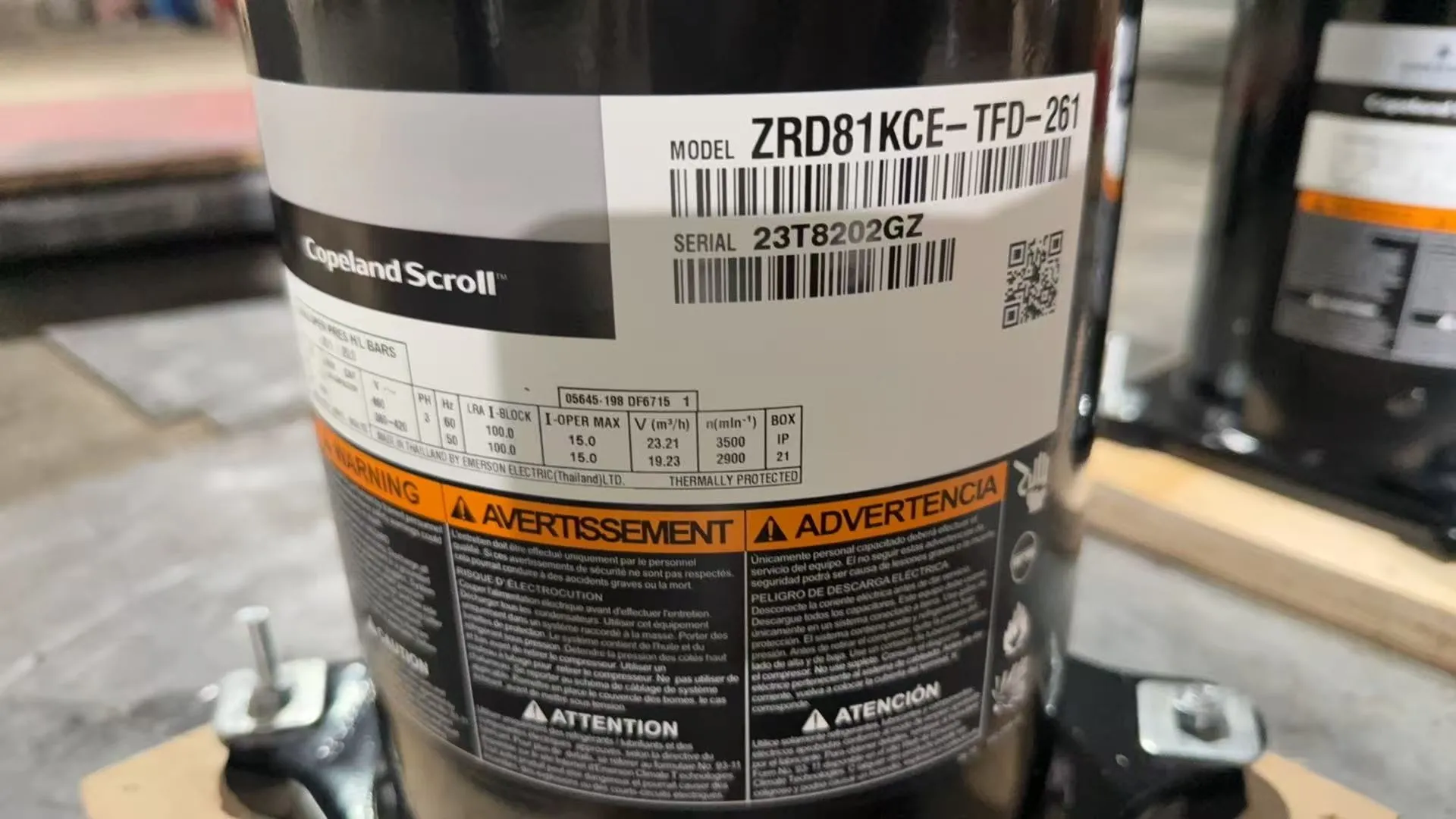

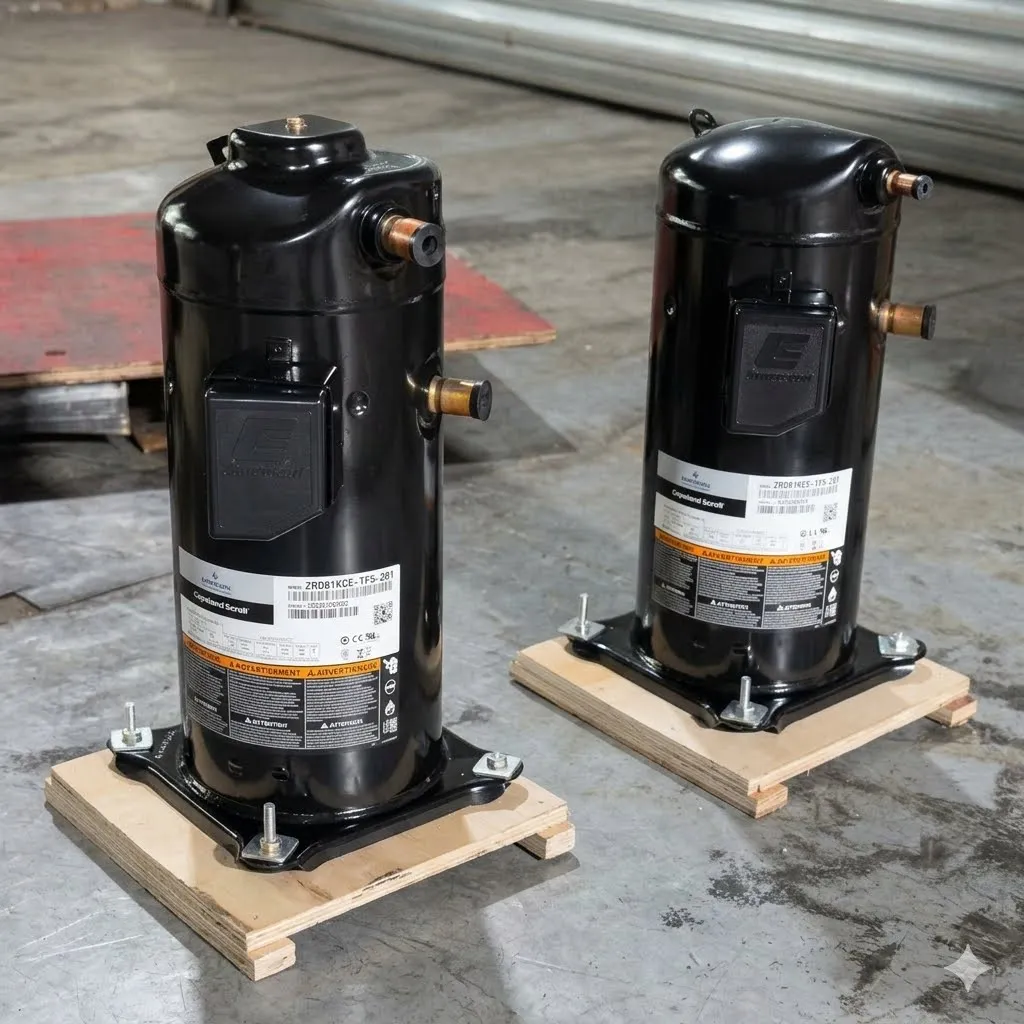

Brand: Copeland (Emerson)
Model: ZRD81KCE-TF5-281
Compressor Type: Hermetic Digital Scroll
Capacity: 81,500 BTU/h (approx. 6.8 HP)
Power Supply: 200-230V / 3 Phase / 60Hz (200-220V / 50Hz)
Refrigerant: R410A, R22
Oil Type: POE Oil (Polyolester)
Modulation Range: 10% - 100% Stepless Capacity Control
Application: Commercial Air Conditioning & Chiller Units
| Section | Parameter | Specifications & Details |
|---|---|---|
| Basic Info | Brand / Manufacturer | Copeland (Emerson) |
| Model Number | ZRD81KCE-TF5-281 | |
| Compressor Type | Hermetic Digital Scroll | |
| Condition | 100% Brand New Genuine Factory Stock | |
| Performance | Nominal Horsepower | 6.8 HP |
| Cooling Capacity | 81,500 BTU/h (Under standard ARI conditions) | |
| Capacity Modulation | 10% - 100% Stepless Linear Control | |
| Compatible Refrigerants | R410A, R407C, R22 | |
| Energy Efficiency | Premium Partial-Load Efficiency (Optimized SEER / CSPF) | |
| Electrical | Power Supply (Voltage) | 200-230V / 3 Phase / 60Hz |
| Frequency Compatibility | Backward compatible with 200-220V / 50Hz | |
| Motor Protection Code | TF5 (Internal inherent motor protection) | |
| Max Continuous Current (MCC) | 25.0 A | |
| Locked Rotor Amps (LRA) | 164.0 A | |
| Mechanical | Oil Type | POE Oil (Polyolester Oil) |
| Oil Charge Quantity | 1.89 Liters / 64 oz | |
| Suction Connection Size | 7/8" Stub Tube (Sweat / Solder Type) | |
| Discharge Connection Size | 3/4" Stub Tube (Sweat / Solder Type) | |
| Net Weight | 40.8 kg / 90 lbs | |
| Mounting Hole Pattern | 190 mm x 190 mm (7.5" x 7.5" Standard) | |
| Key Features | Energy Saving | Drastically cuts partial-load power bills via digital modulation |
| Temperature Precision | Eliminates on/off cycles, maintaining stable room temperature | |
| Reliability Design | Radial & Axial compliance for superior liquid slugging tolerance | |
| Noise & Vibration | Low sound pressure levels with smooth continuous compression | |
| Applications | Commercial HVAC | VRF / VRV multi-split systems, Rooftop packaged units |
| Industrial Cooling | Process water chillers, Precision data center cooling | |
| Logistics | Standard Package | Export heavy-duty wooden pallet with stretch wrapping |
| BOM Code Meaning (-281) | Outfitted with standard stub tubes and upper digital valve |
