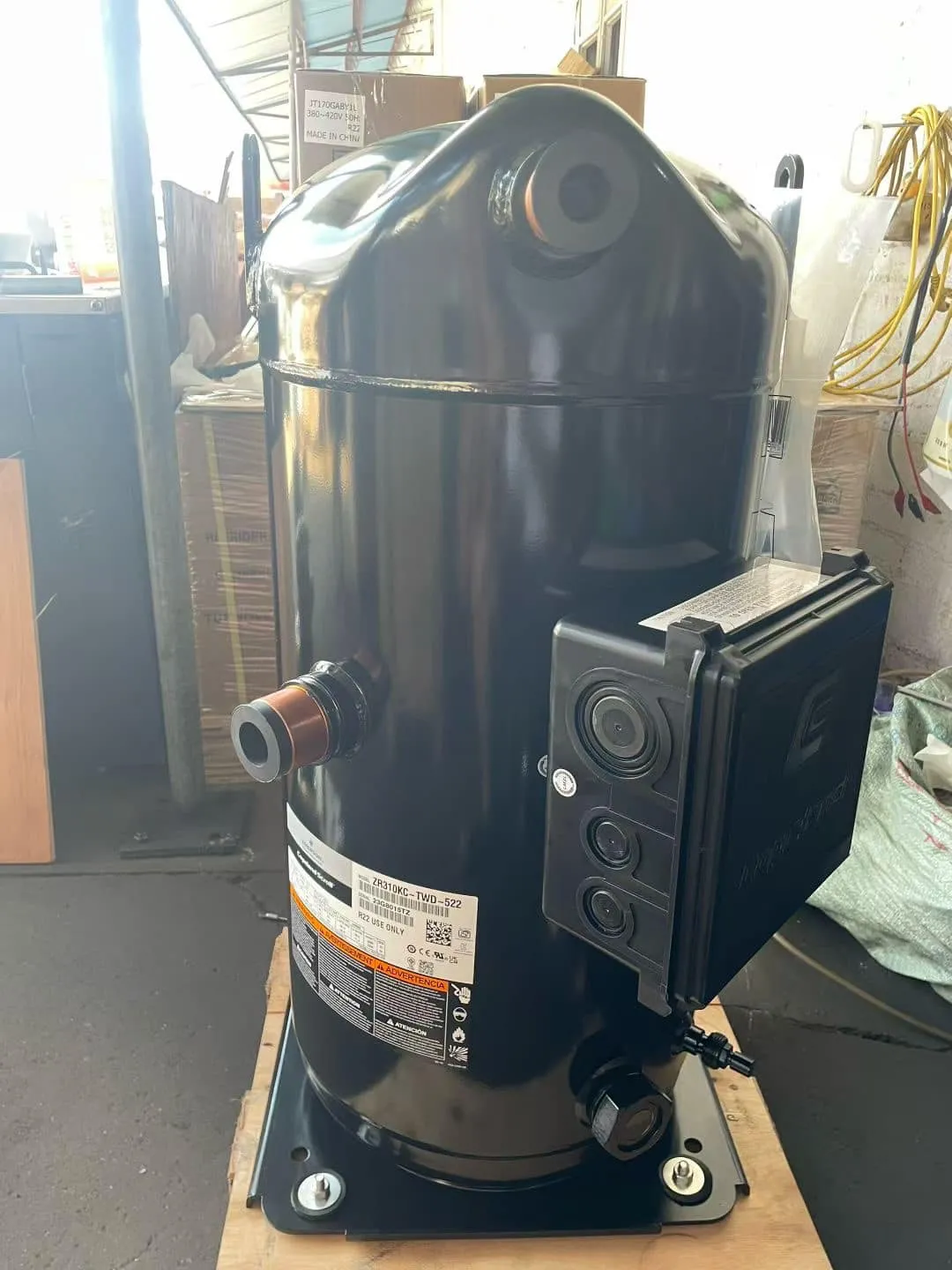

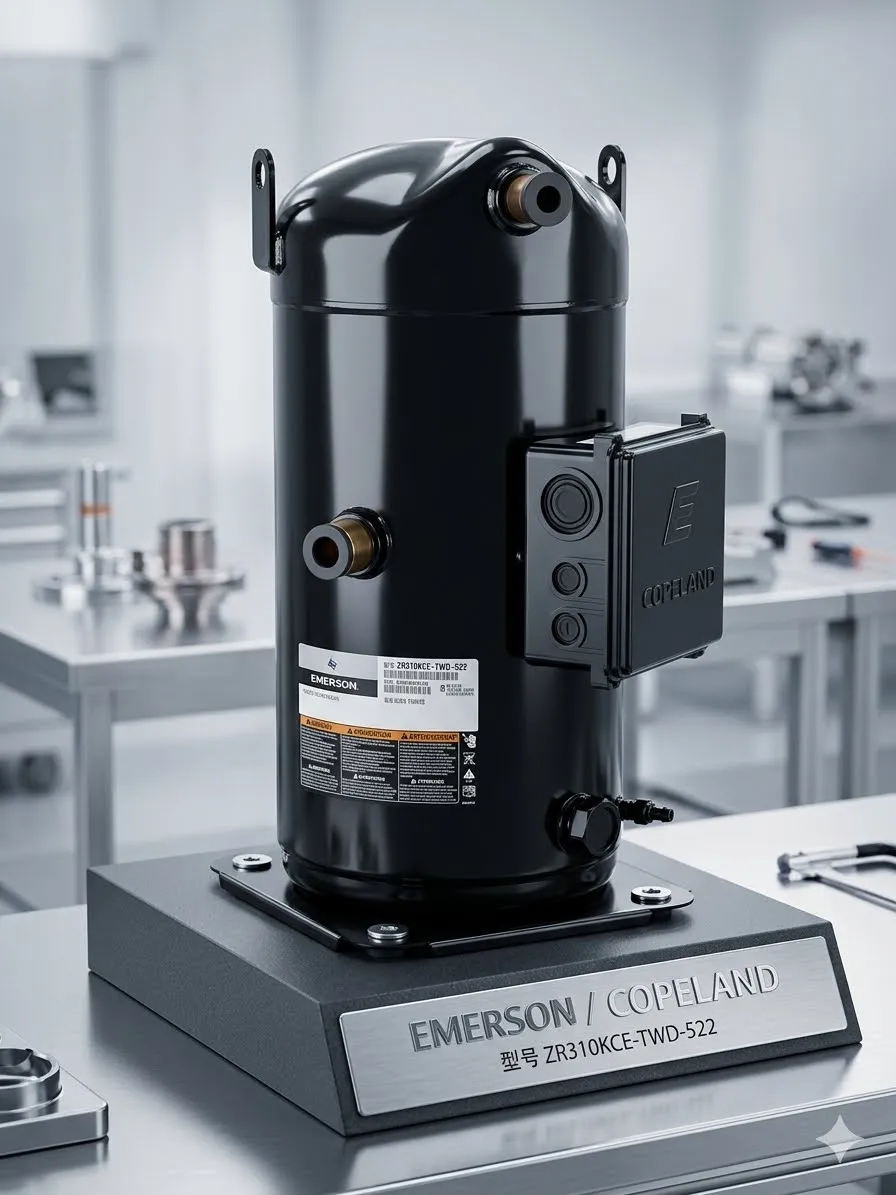

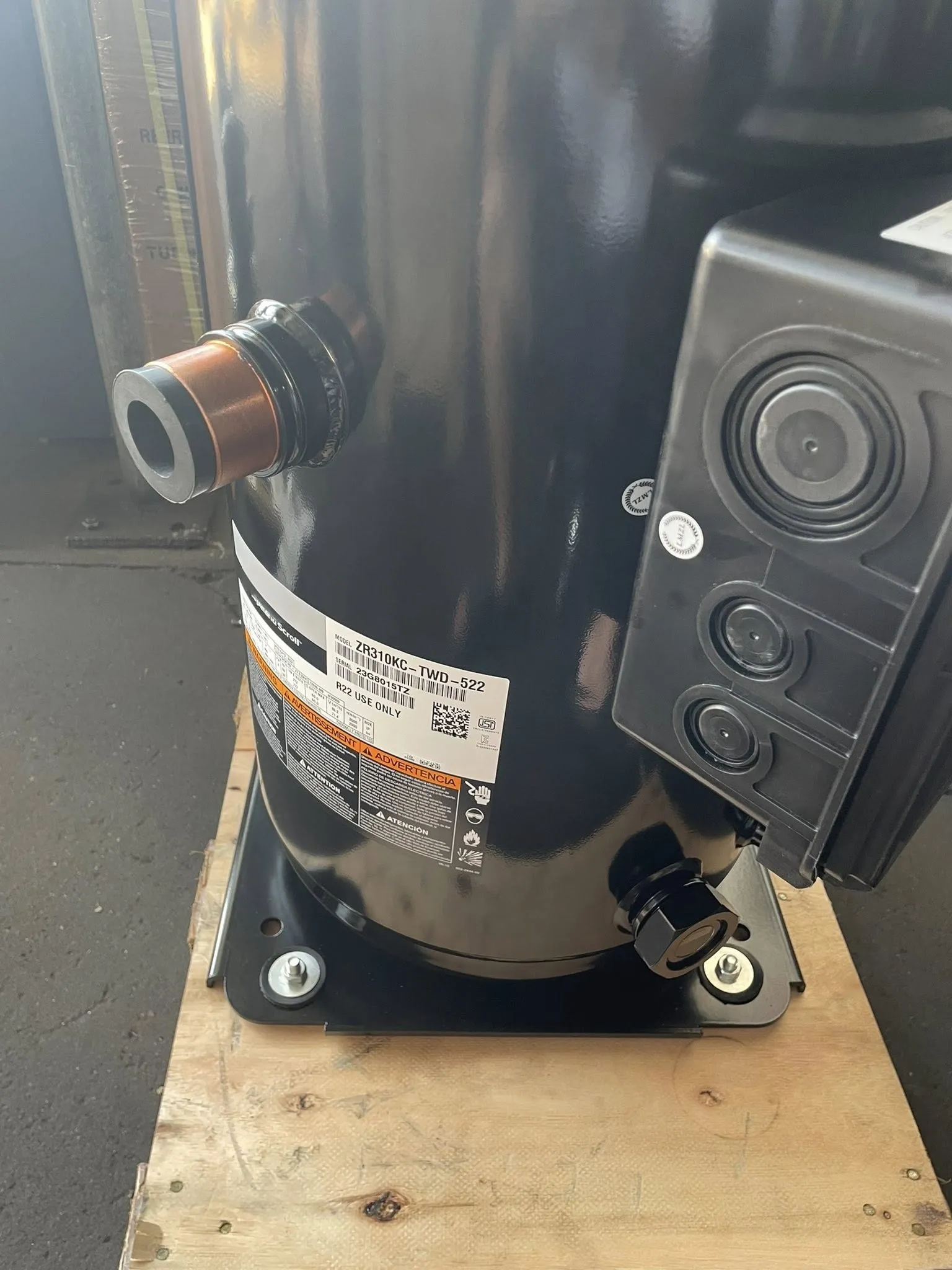

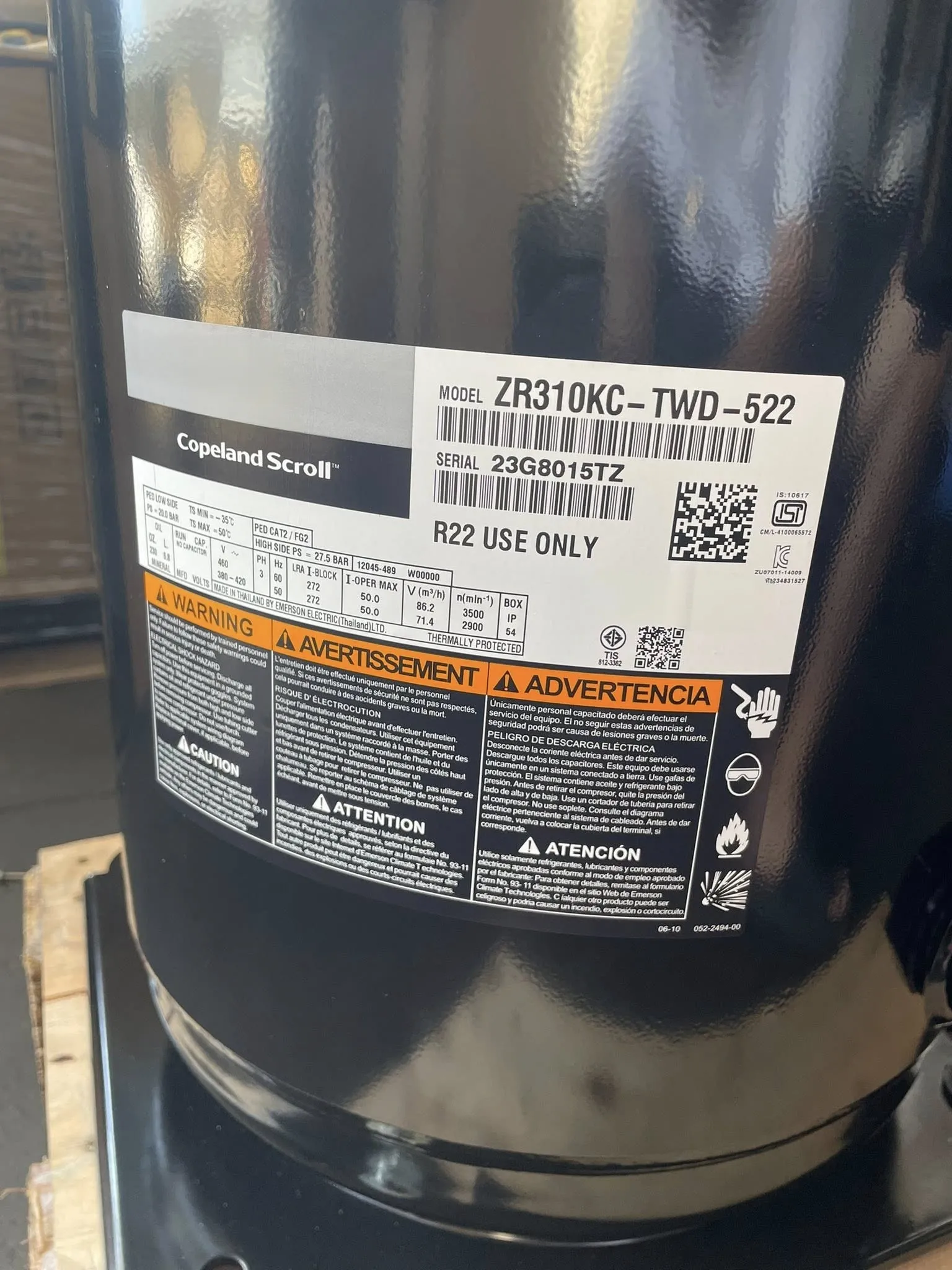

The Copeland Scroll ZR310KCE-TWD-522 is a heavy-duty, high-efficiency 25 HP compressor engineered for commercial air conditioning, industrial chillers, and large-scale HVAC systems. Optimized for R407C and R134a refrigerants, it delivers unmatched reliability, low noise operation, and outstanding energy savings.
| Parameter | Specification Details |
|---|---|
| Model | ZR310KCE-TWD-522 |
| Nominal Horsepower | 25 HP (25 Horsepower) |
| Refrigerant Compatibility | R407C, R134a, R22 |
| Power Supply | 3-Phase, 380V-420V / 50Hz | 460V / 60Hz |
| Cooling Capacity | Approx. 310,000 BTU/h (90.8 kW) |
| Displacement | 71.4 m³/h (@50Hz) |

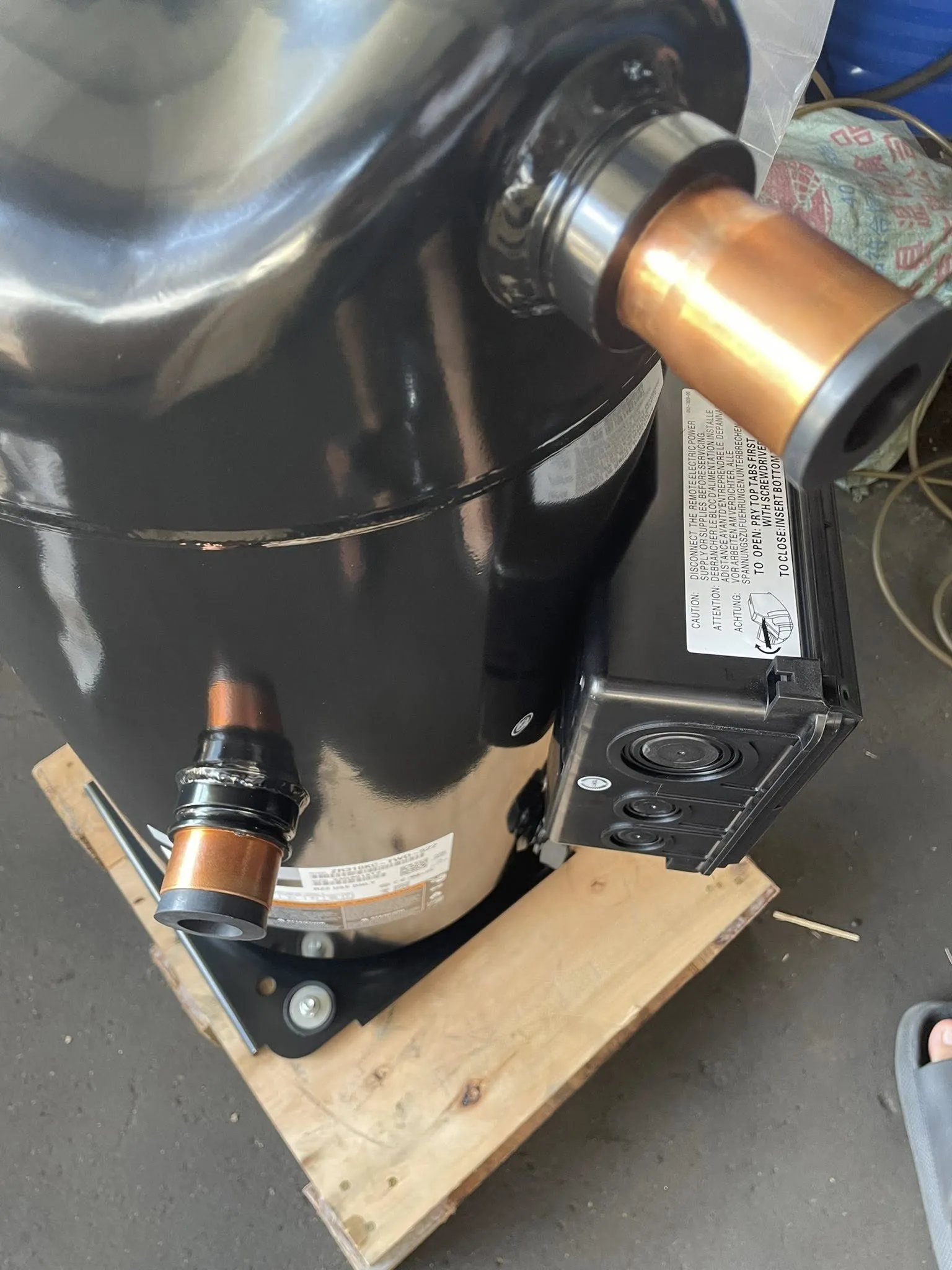

| Connection Type | Stub Tube / Brazed (Suction: 1-5/8", Discharge: 1-3/8") |
| Oil Charge & Type | 6.8 L / POE Oil |
| Net Weight | 160 kg |
Advanced Scroll Compliance: Minimizes friction and maximizes volumetric efficiency for significant power savings.
Industrial-Grade Durability: Built with fewer moving parts, reducing mechanical wear and extending service lifespan.
Low Vibration & Noise: Designed with un-contact scroll profiles and smooth internal gas flows for ultra-quiet operation.
Full Protection: Features internal overload protection (OLP) and electronic module connectivity to safeguard your equipment.
Contact us today to check wholesale availability, bulk pricing, and worldwide logistics shipping rates!
| Technical Parameter | Official Standard Data |
|---|---|
| Brand | Emerson Copeland |
| Full Model | ZR310KCE-TWD-522 |
| Nominal Power | 25 HP / 25 Horsepower |
| Compatible Refrigerants | R407C, R134a, R22 |
| Cooling Capacity | Approx. 310,000 BTU/h (90.8 kW) |
| Power Supply | 3-Phase, 380V-420V / 50Hz | 460V / 60Hz |
| Displacement | 71.4 m³/h (@50Hz) |
| Connection Type | Stub Tube / Brazed Connections |
| Suction ID (Inlet) | 1-5/8 inches (Approx. 41.3 mm) |
| Discharge ID (Outlet) | 1-3/8 inches (Approx. 34.9 mm) |
| Oil Type | POE (Polyolester Oil) |
| Initial Oil Charge | 6.8 Liters (L) |
| Mounting Footprint | 266.7 mm × 266.7 mm (Standard Hole Pattern) |
| Net Weight | 160 kg |
