Product Overview

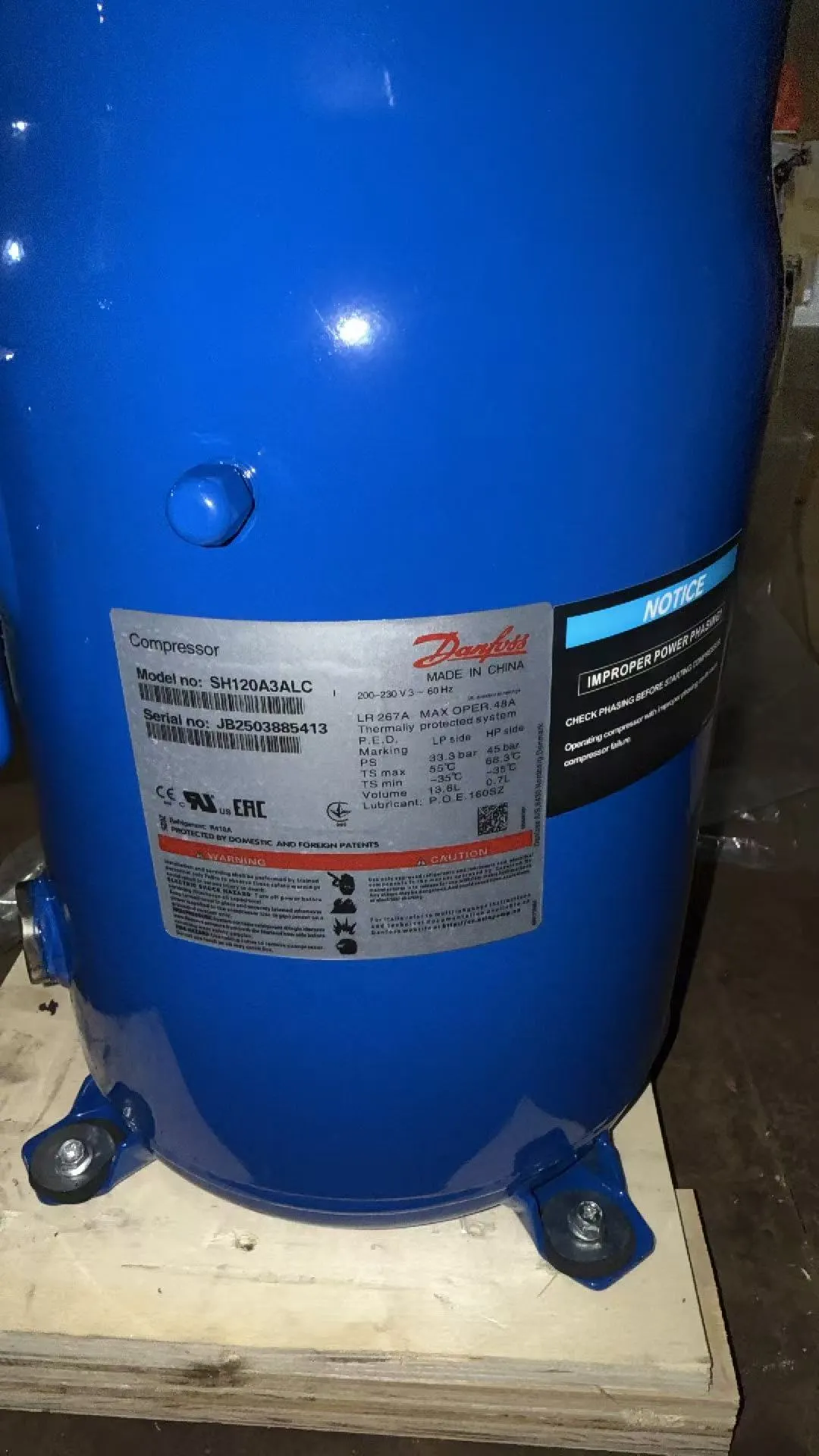

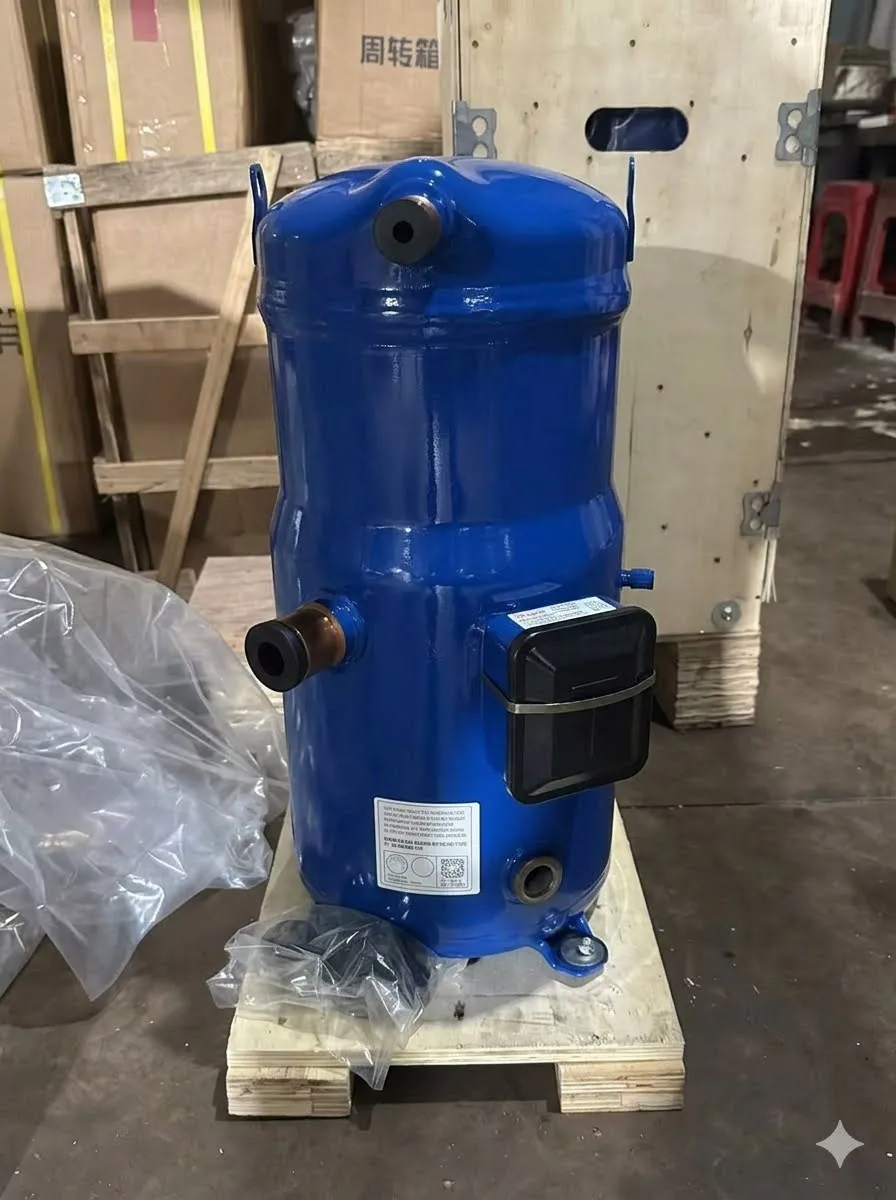

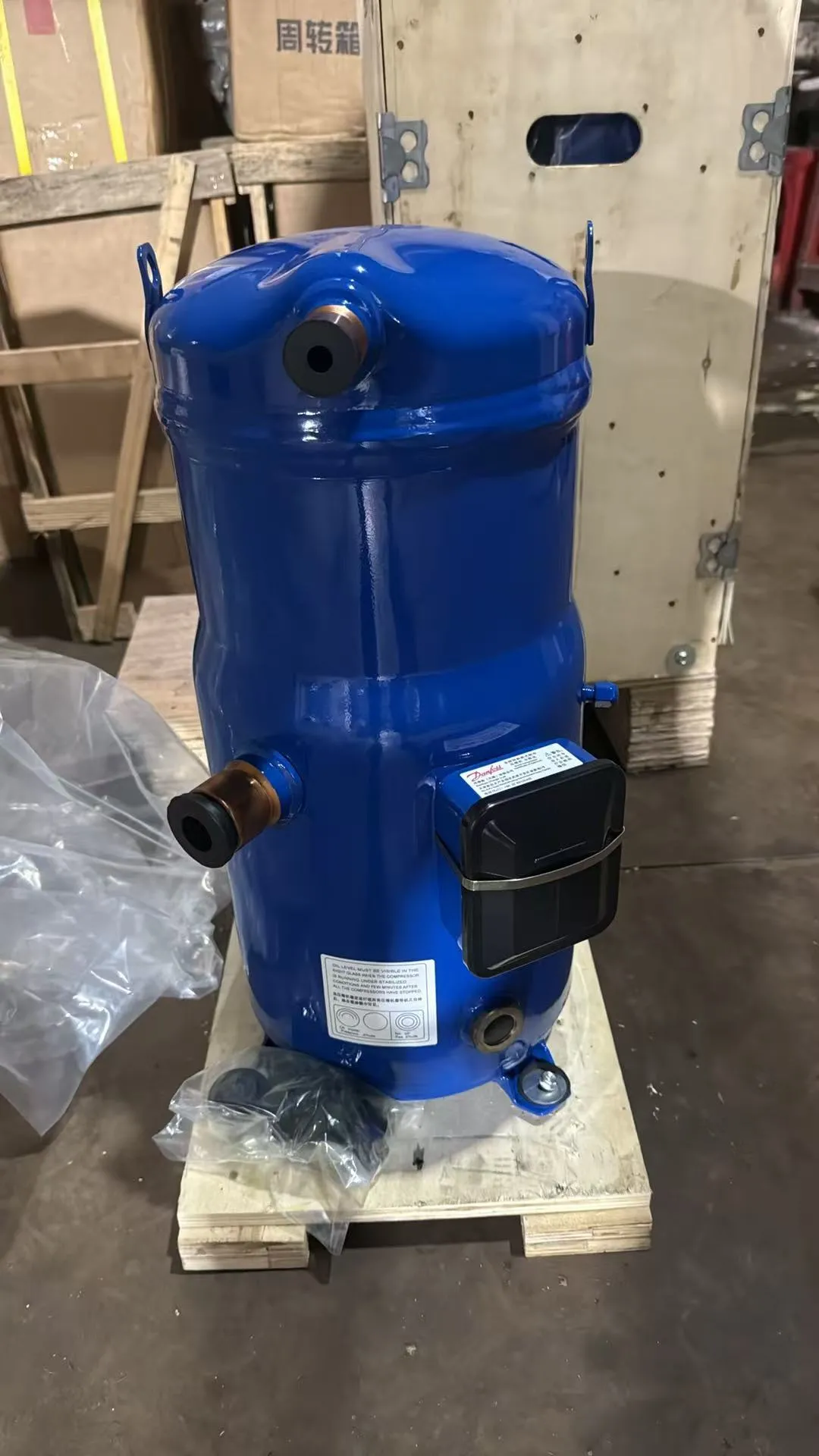

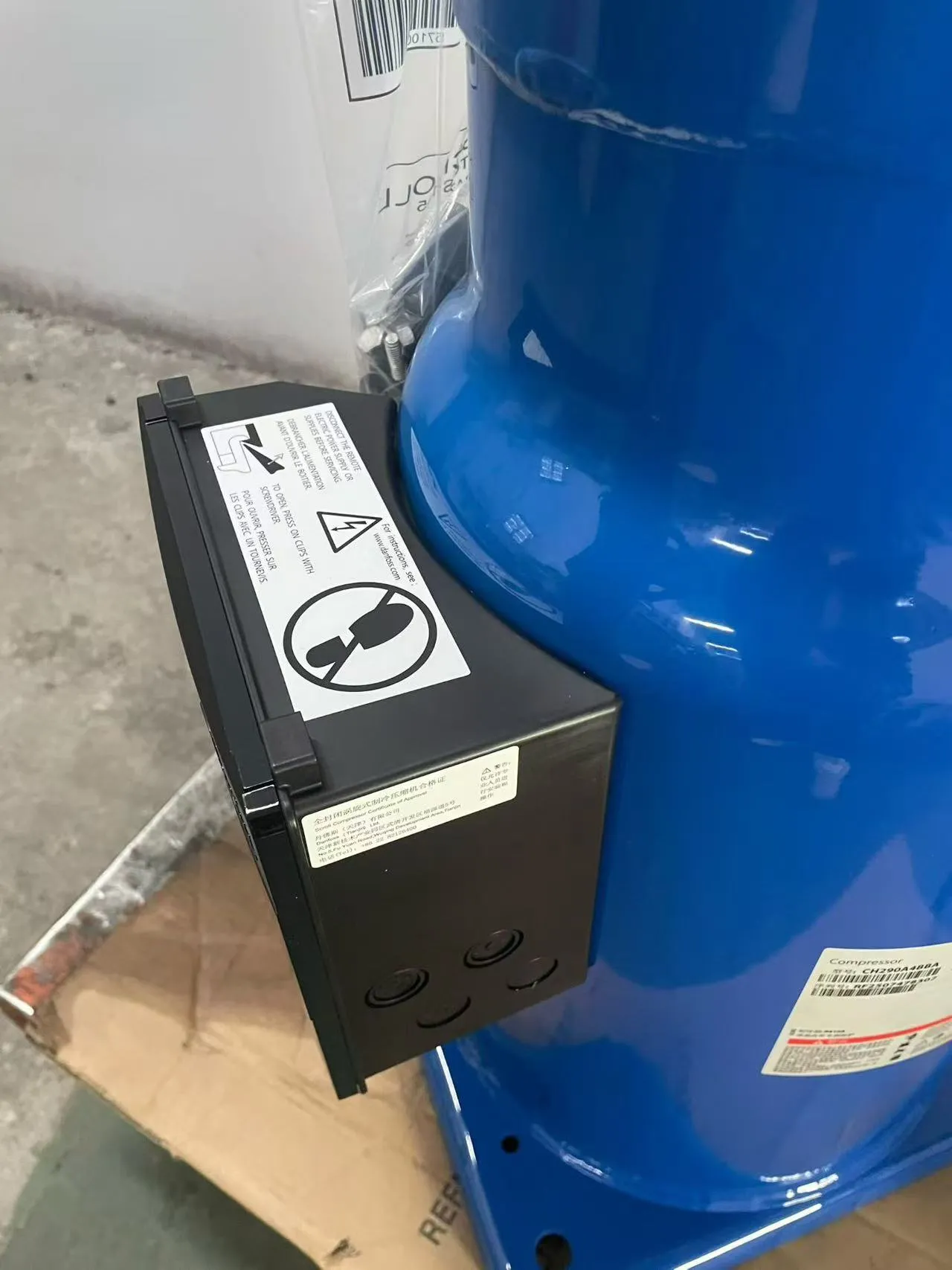

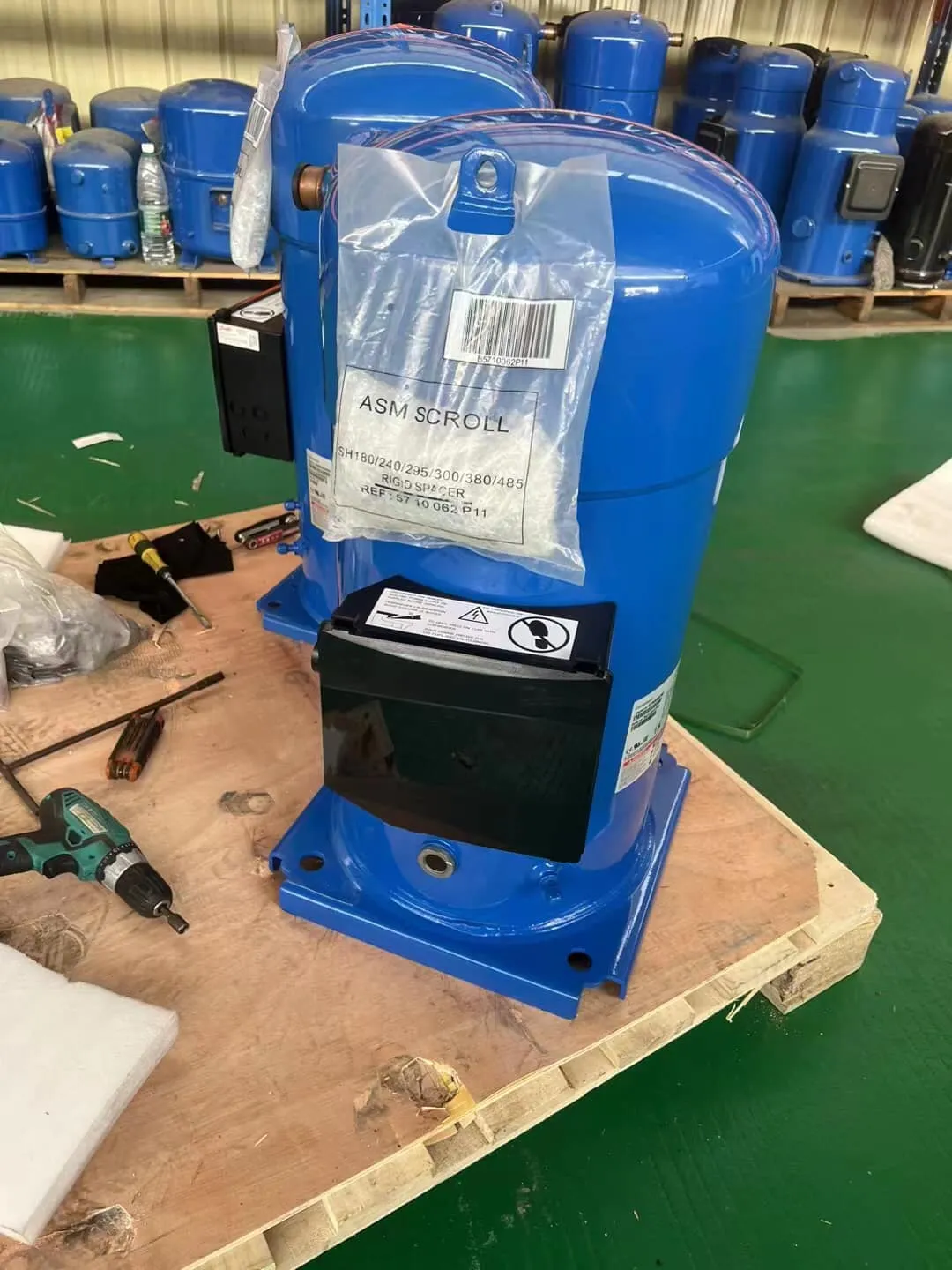

The Danfoss Performer® scroll compressor SH120A3ALC (Code No. 120H0012) is specifically engineered for commercial air conditioning, chillers, and large heat pump applications. It offers high efficiency, low noise, and unmatched reliability under demanding conditions.
Technical Specifications
• Brand: Danfoss (Performer Series)
• Model: SH120A3ALC
• Ordering Code: 120H0012 / 120H0011
• Nominal Horsepower: 10 HP / 10 Ton
• Refrigerant: R410A
• Voltage/Frequency: 200-230V / 3 Phase / 60Hz
• Cooling Capacity: Approx. 120,000 BTU/h
• Connection Type: Brazed (Suction 1-3/8", Discharge 7/8")
• Application: Commercial Central Air Conditioning / Industrial Chillers
Key Features & Benefits
• High Energy Efficiency: Optimized scroll design reduces operating costs.
• Direct Cross-Reference: Widely used as a genuine replacement parts for Daikin McQuay (Part No. 113086903) and York (Part No. 01504411001) units.
• Durable Performance: Built with high-grade internal components to ensure a prolonged operational lifespan.
| Parameter | Specification Details |
|---|---|
| Brand | Danfoss (Performer Series) |
| Model Number | SH120A3ALC |
| Ordering Code | 120H0012 / 120H0011 |
| Nominal Horsepower | 10 HP (10 Tons / 10 TR) |
| Refrigerant Type | R410A |
| Power Supply | 200-230V / 3 Phase / 60Hz |
| Cooling Capacity | Approx. 120,000 BTU/h (35.1 kW) |
| Oil Type | POE Oil |
| Connection Type | Brazed / Solder Connection |
| Suction Line Size | 1-3/8" (35 mm) |
| Discharge Line Size | 7/8" (22 mm) |
| Gross Weight | Approx. 65 kg (143 lbs) |
| Certifications | CE, UL, CCC |
Related Products
Bobiller, The Best Mate!
Our company offers a complete line of heat pump units and refrigeration equipment systems, as well as refrigeration compressors, copper fittings, expansion valves, dual-measure gauges, and other accessories and tools, so you can get everything you need for the refrigeration industry in one place. And we can provide you with customized manufacturing services.

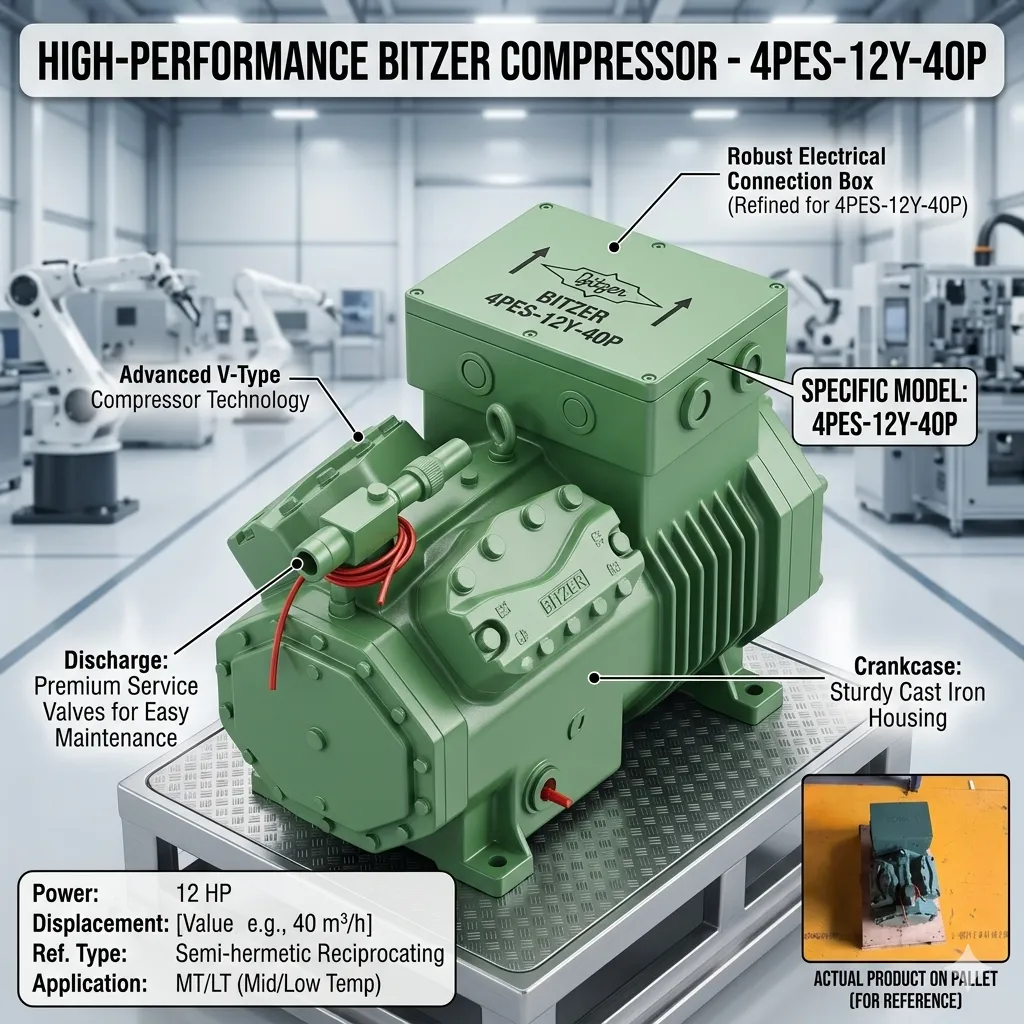

Bitzer Semi-Hermetic Compressor Wide Applications in Global Cold Chain Logistics
