| Technical Specifications | Official Standard Data |
|---|---|
| Brand | Danfoss Maneurop |

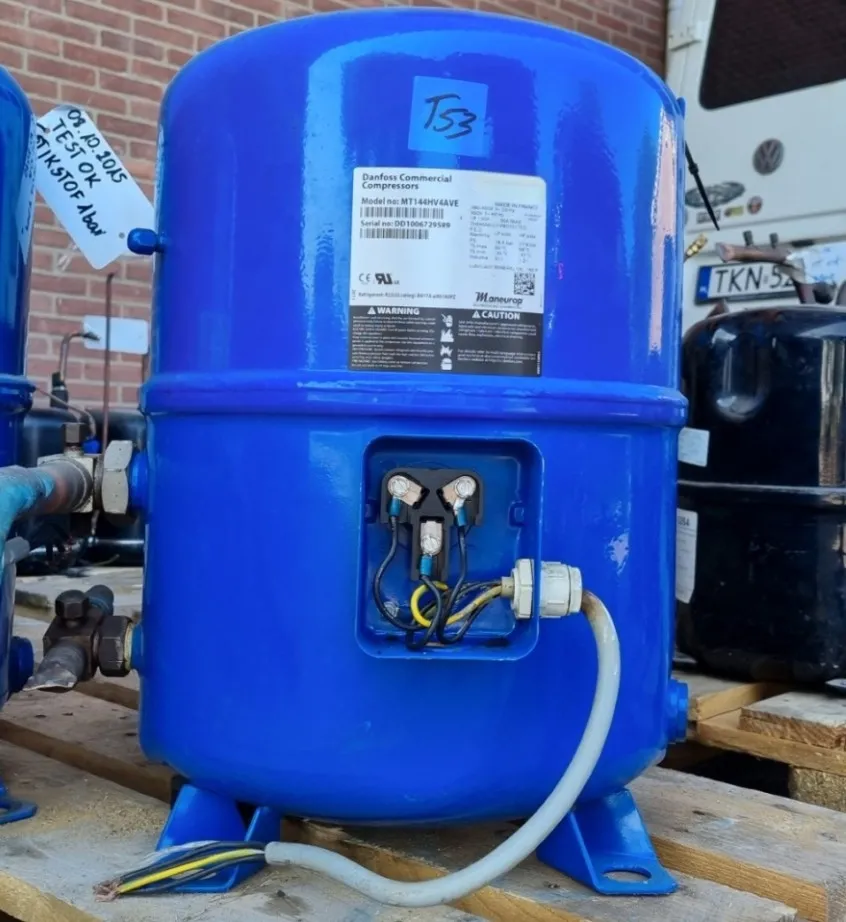

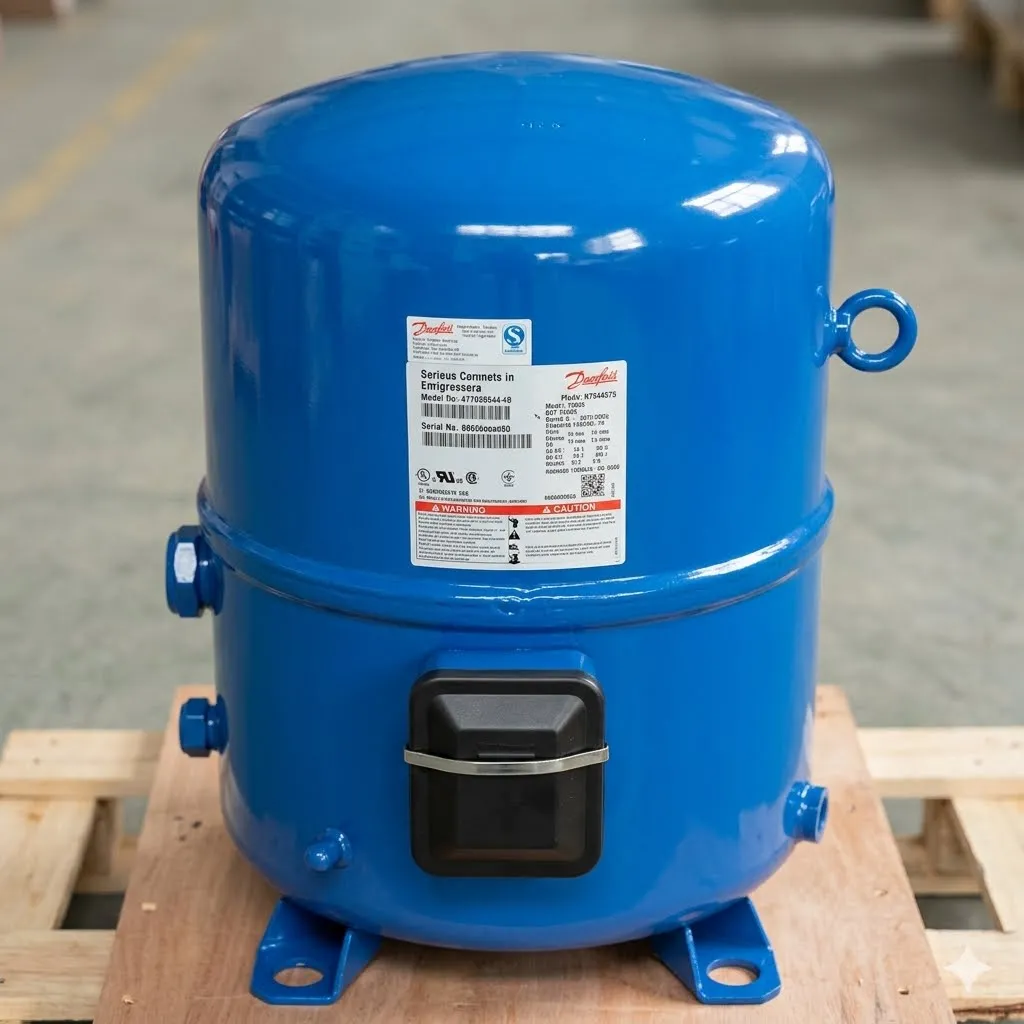

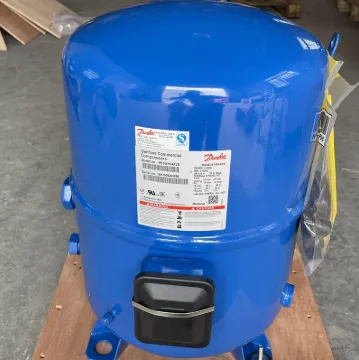

| Model | MT144HV4AVE |
| Ordering Code | MT144-4VI |
| Technology | Hermetic Reciprocating |
| Number of Cylinders | 4 |
| Nominal Horsepower | 12 HP |
| Refrigerant | R22 |
| Application Range | MBP (Medium Back Pressure) |
| Power Supply | 380V-415V / 3Ph / 50Hz (460V / 3Ph / 60Hz) |
| Displacement | 241.87 cm³ / 42.1 m³/h (@50Hz) |
| Max Continuous Current (MCC) | 36 A |
| Locked Rotor Amps (LRA) | 130 A |
| Oil Type | Mineral Oil 160P |
| Oil Charge | 3.9 L |
| Suction Connection Size | 1-3/4" Rotolock (1-1/8" ODF Sleeve) |
| Discharge Connection Size | 1-1/4" Rotolock (3/4" ODF Sleeve) |
| Net Weight | 69.0 kg |
| Feature/Section | Description & Detailed Specifications |
|---|---|
| Product Highlights | • 100% Brand New & Genuine: Factory-fresh Danfoss quality. • High Liquid Tolerance: Large internal free volume protects against liquid slugging. • Smart Motor Protection: Built-in internal overload protector prevents overheating. • Reliable 4-Cylinder Design: Provides stable mass flow and longer lifespan. |
| Target Applications | • Cold Storage Rooms: Walk-in coolers, food preservation warehouses. • Industrial Cooling: Process water chillers, commercial milk cooling tanks. • HVAC Systems: Commercial rooftop packages and air conditioning units. |
| Operating Range | • Evaporating Temperature: Medium & High Back Pressure (MBP). • Optimized Refrigerant: Exclusively designed for R22 gas. |
| Standard Package | • 1 × Danfoss Maneurop MT144HV4AVE Compressor • 1 × Set of Rubber Mounting Kits (For vibration and noise reduction) • 1 × Pre-installed Oil Sight Glass (For easy maintenance) |
| B2B Supply Advantages | • Secure Export Packing: Safely packed on wooden pallets for global transit. • Bulk Stock Availability: Minimizes your machinery and project downtime. • Wholesale Direct Pricing: Highly competitive rates for HVAC/R traders & contractors. |
