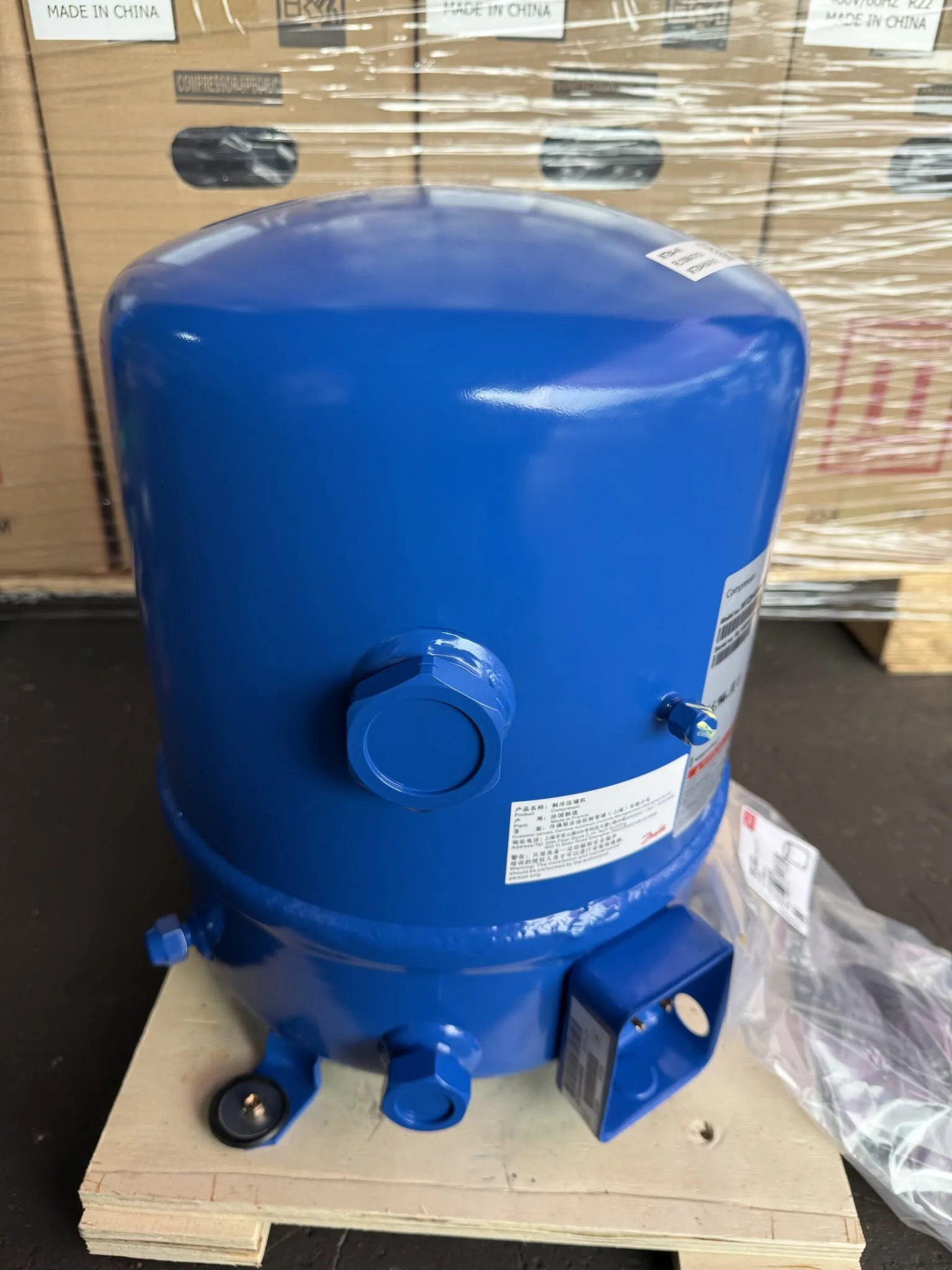

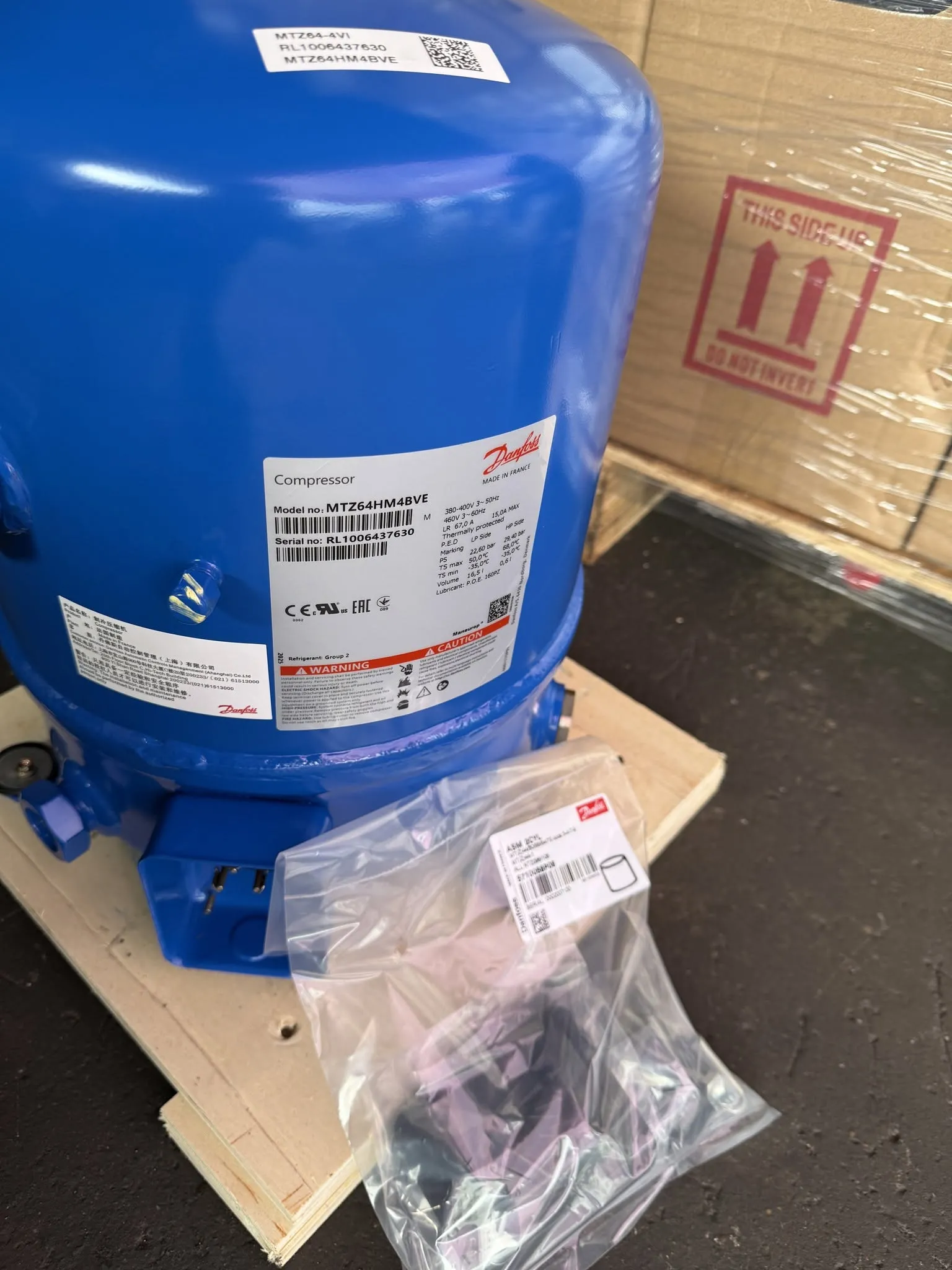

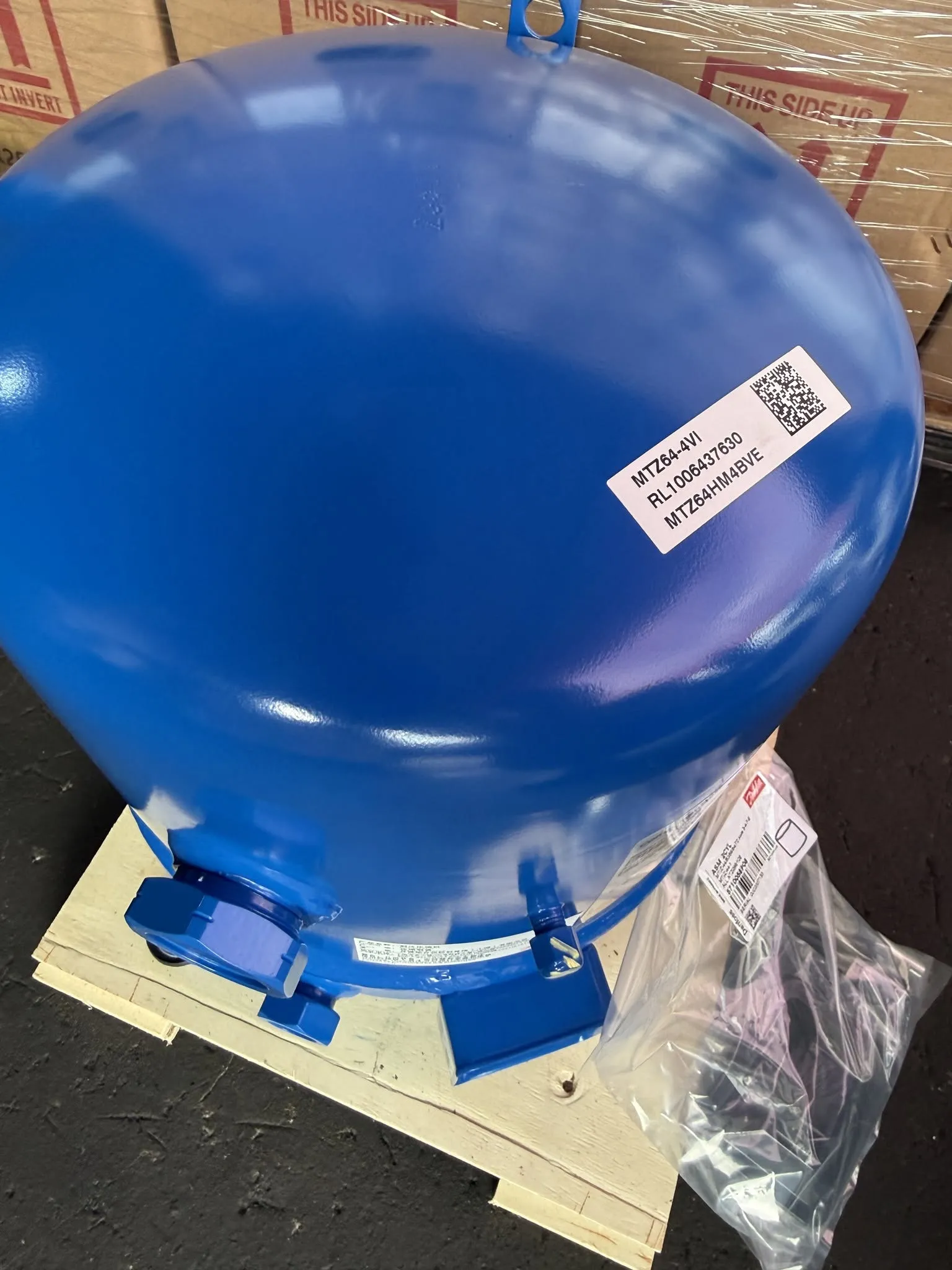

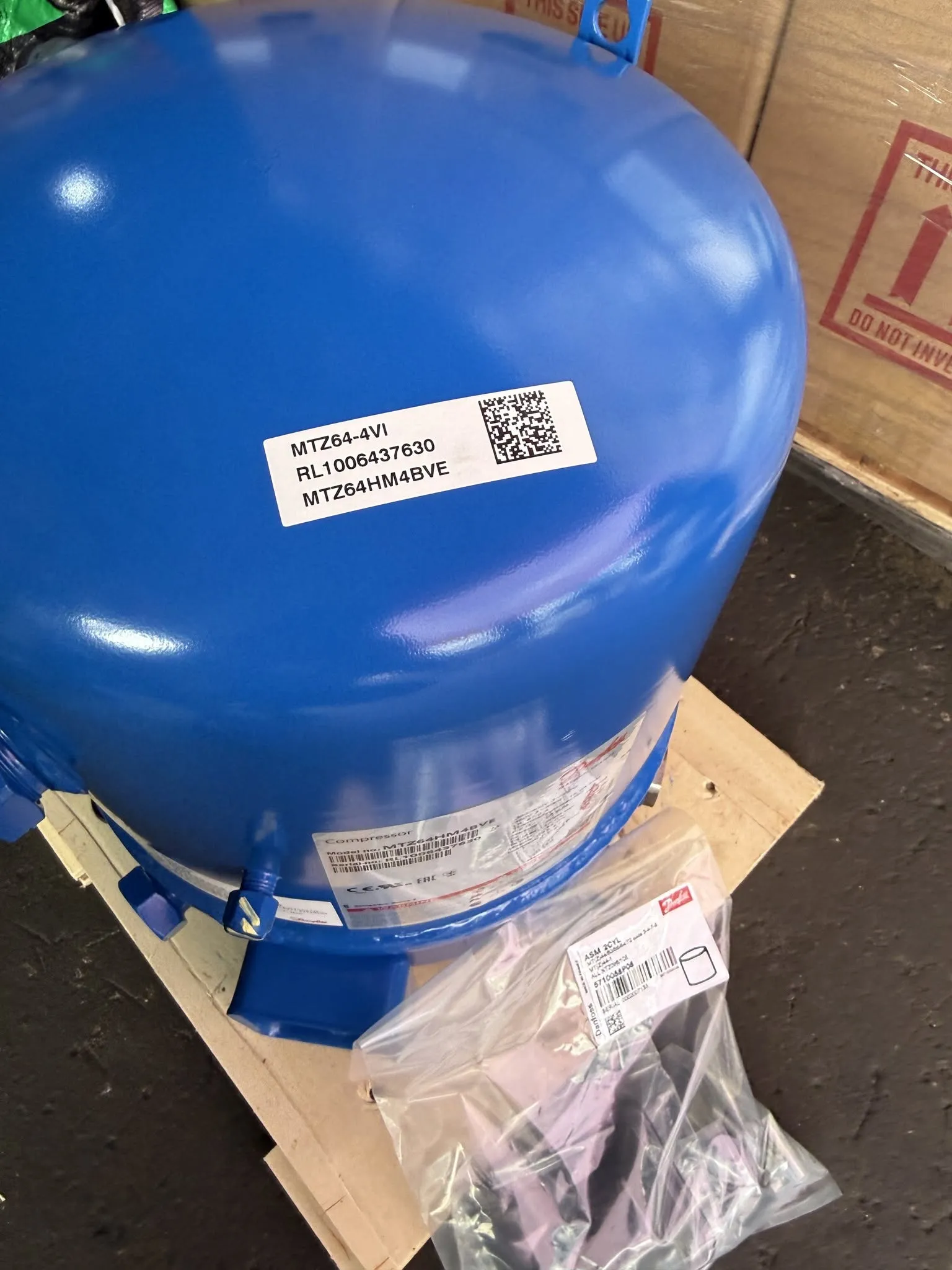

Danfoss Maneurop MTZ64HM4BVE Refrigeration Compressor
Product Overview
The Danfoss Maneurop MTZ64HM4BVE is a premium hermetic reciprocating compressor engineered for medium and low-temperature commercial refrigeration applications. Known for its massive internal free volume, this MTZ series compressor offers superior resistance against liquid slugging and ensures high reliability in demanding environments like cold rooms, supermarkets, and industrial water chillers.
Key Technical Specifications
• Brand: Danfoss Maneurop
• Model Code: MTZ64HM4BVE (or MTZ64-4VI)
• Nominal Horsepower: 5 HP
• Displacement: 107.71 cm³/rev (18.7 m³/h at 50Hz)
• Voltage/Frequency: Code 4 (380V-400V / 3 Phase / 50Hz & 460V / 3 Phase / 60Hz)
• Compatible Refrigerants: R404A, R134a, R407C, R407A, R507A
• Lubricant Type: POE oil (160PZ) pre-charged
• Connection Type: Rotalock (threaded valve connections for easy field servicing)
• Net Weight: 37 kg
Primary Applications
• Commercial walk-in cold rooms and freezers
• Supermarket display cases and food retail systems
• Industrial liquid chillers and ice making machines
• Process cooling and cold chain logistics
| Feature / Parameter | Specification Details |
|---|---|
| Brand | Danfoss Maneurop |
| Model | MTZ64HM4BVE (Alternative Code: MTZ64-4VI) |
| Nominal Horsepower | 5.0 HP |
| Displacement | 107.71 cm³/rev |
| Volumetric Flow (50 Hz) | 18.74 m³/h |
| Volumetric Flow (60 Hz) | 22.62 m³/h |
| Electrical Code / Power Supply | Code 4: 380V-400V~3ph~50Hz / 460V~3ph~60Hz |
| Maximum Continuous Current (MCC) | 15 A |
| Locked Rotor Amps (LRA) | 64 A |
| Refrigerants Compatibility | R404A, R134a, R407C, R407A, R407F, R507A |
| Oil Type & Charge | POE Oil (160PZ) │ 1.8 Liters (60.8 oz) |
| Connection Type | Rotalock (Threaded) |
| Suction Connection Size | 1-3/4" Rotalock (7/8" ODF Sleeve) |
| Discharge Connection Size | 1-1/4" Rotalock (3/4" ODF Sleeve) |
| Net Weight | 37 kg (81.6 lbs) |
Evaporating Temp -10°C: ~ 7,650 W
Evaporating Temp -5°C: ~ 9,600 W
Evaporating Temp 0°C: ~ 11,900 W
Evaporating Temp +5°C: ~ 14,500 W
100% Suction-Gas Cooled: The motor is entirely cooled by returning suction gas, drastically reducing internal heat and extending motor life.
Large Internal Free Volume: Minimizes the risk of liquid hammering when liquid refrigerant enters the compressor.
Smart Protection: Built-in internal overload protector guards the motor against overheating and overcurrent phase issues.
Versatile Application: Dual-frequency motor design perfectly operates on both 50Hz and 60Hz power grids.
1 x Danfoss Maneurop MTZ64HM4BVE Compressor
1 x Pre-charged POE Oil (1.8L)
1 x Mounting Kit (Rubber grommets, bolts, nuts, and sleeves)
