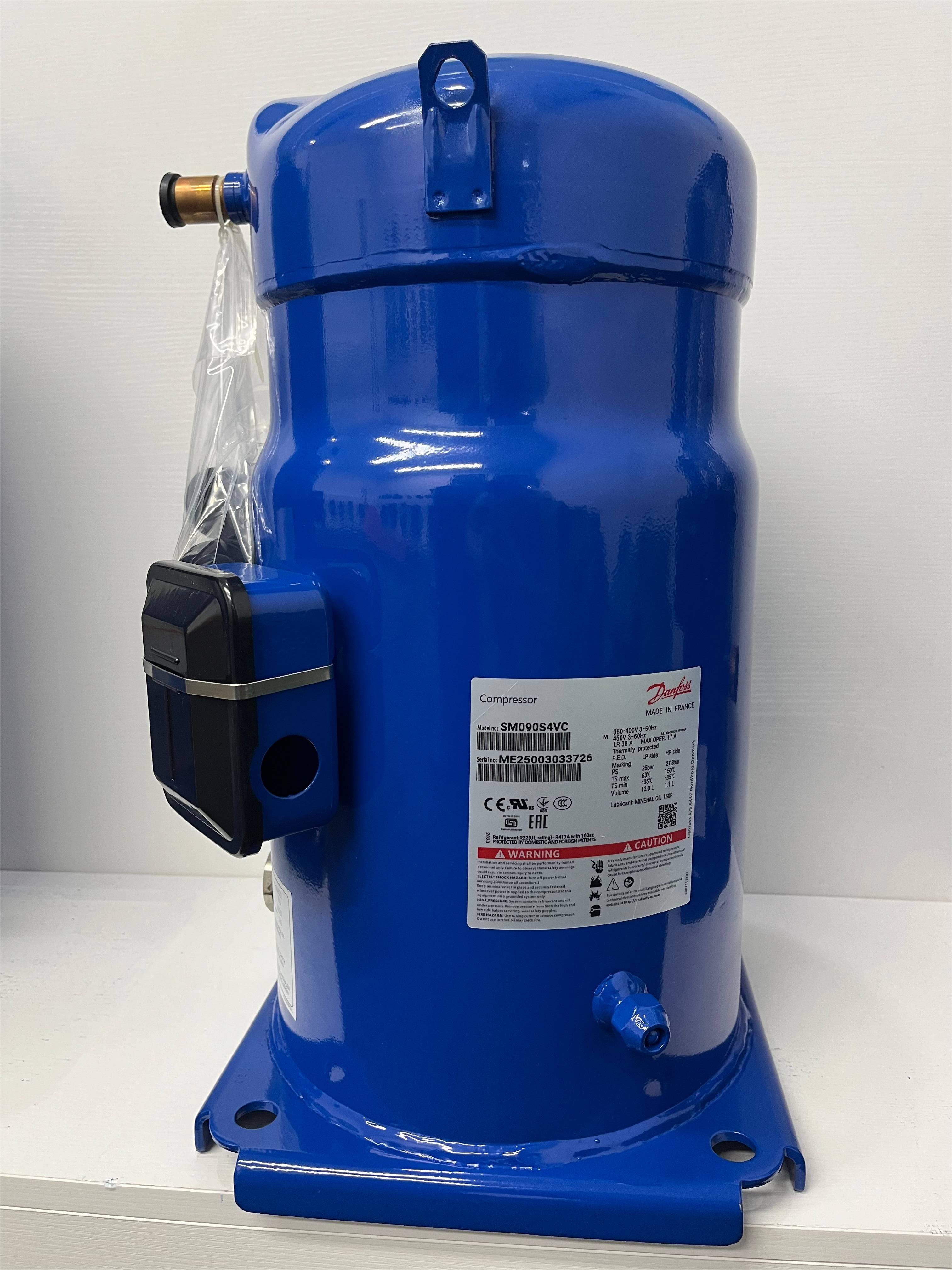

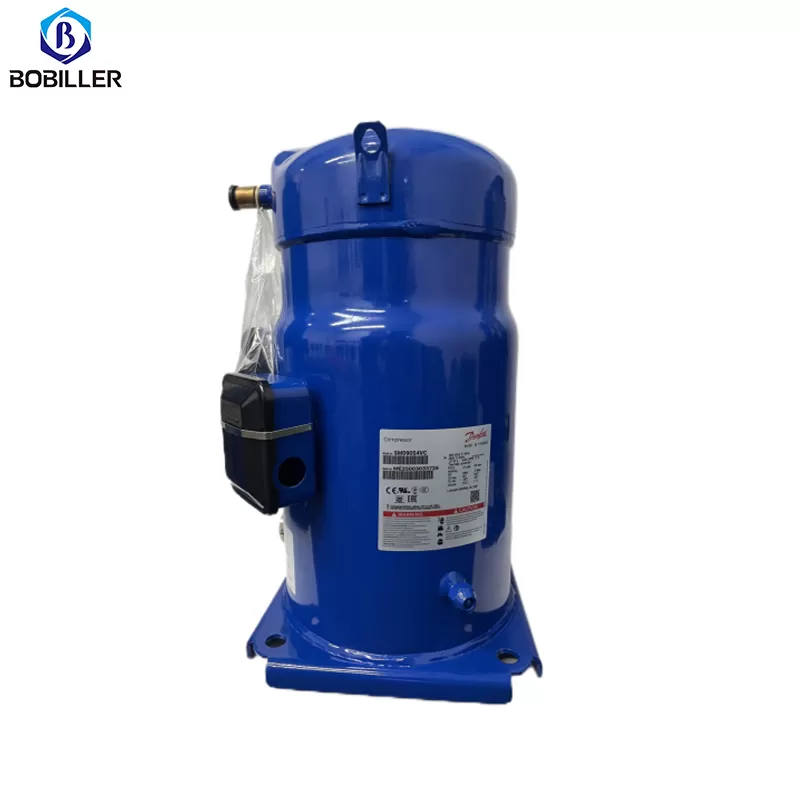

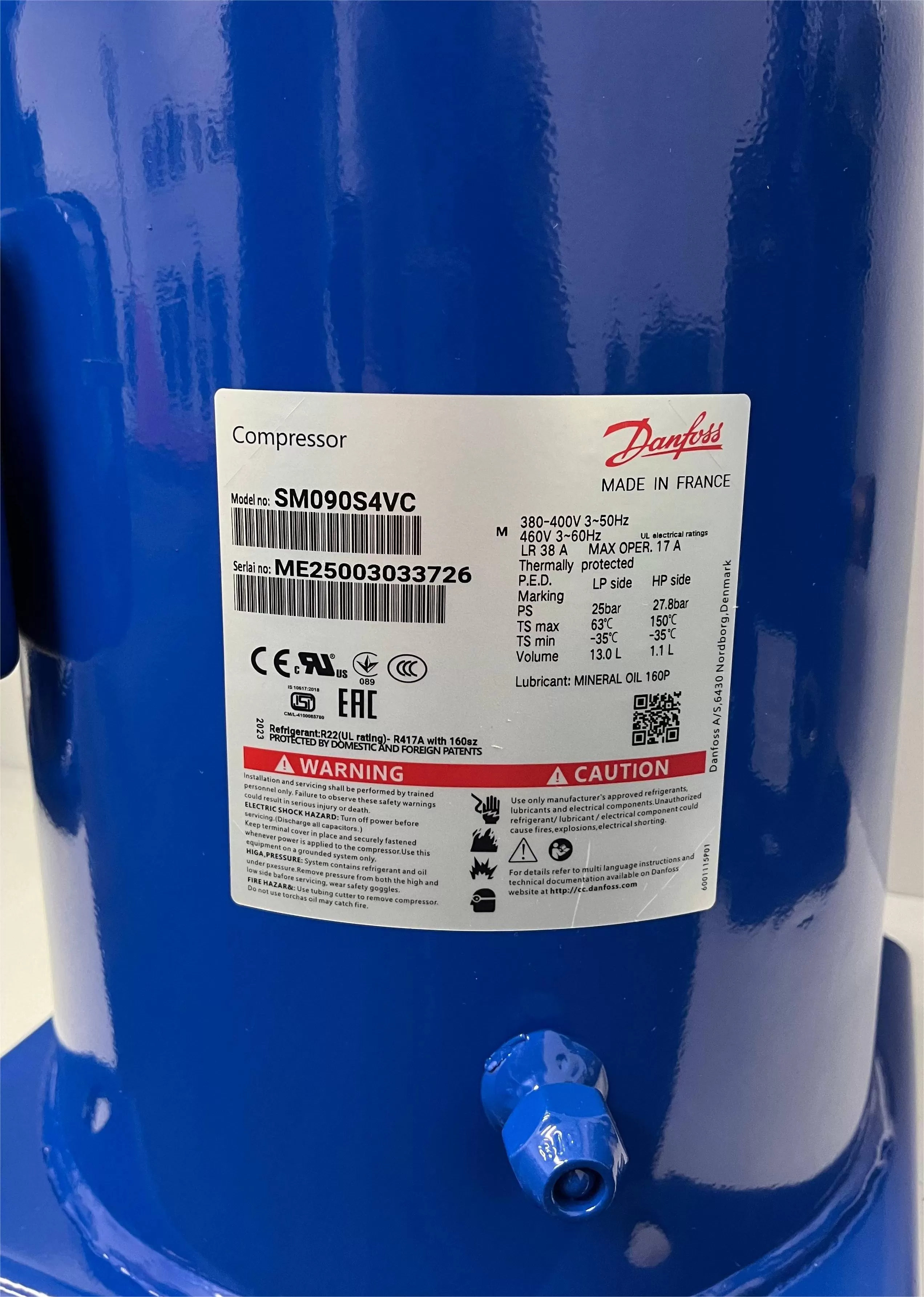

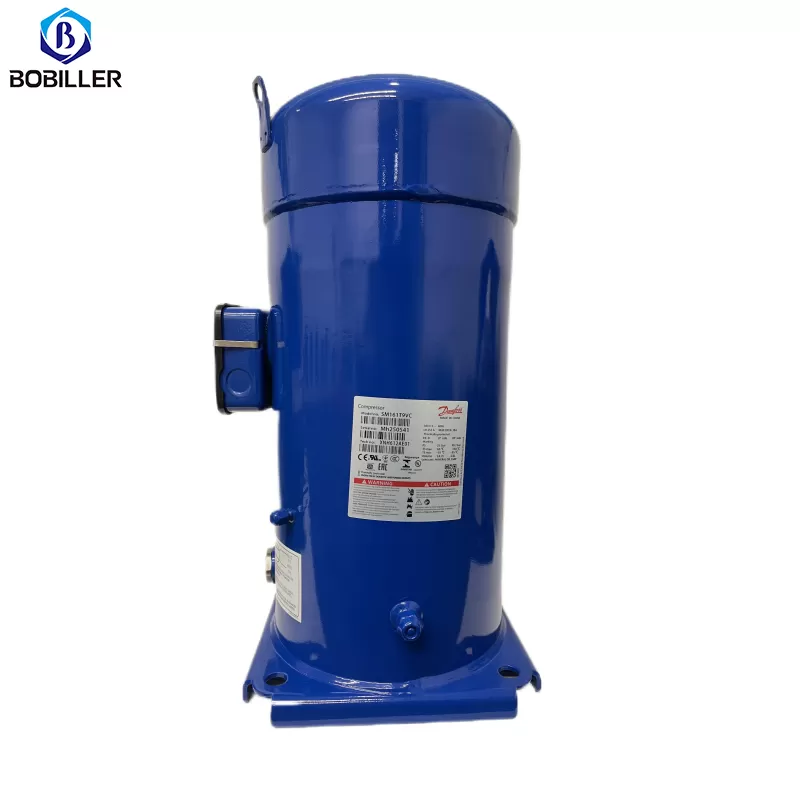

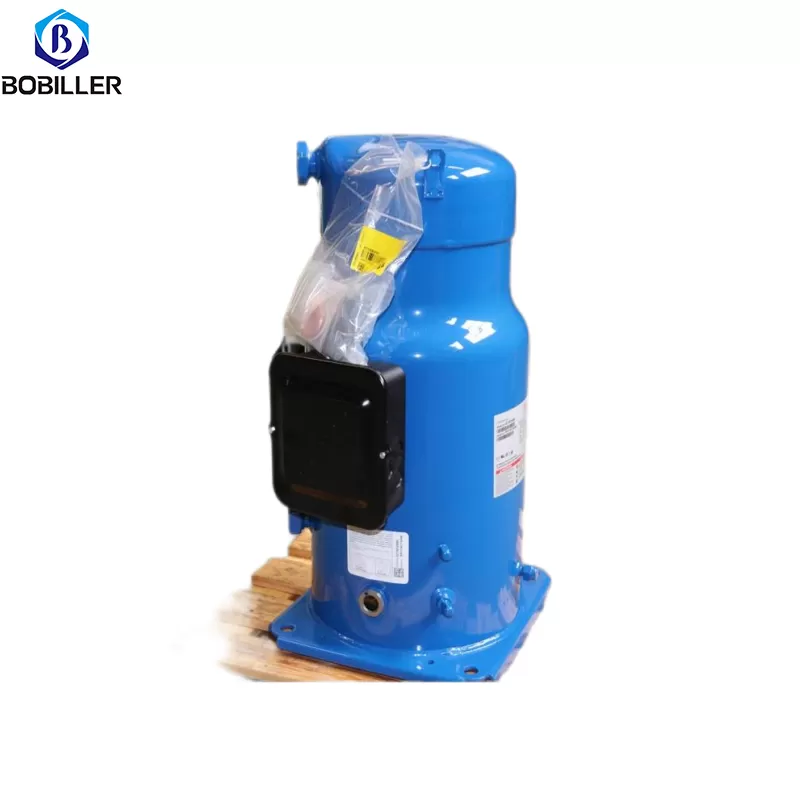

Model number : SM090S4VC
Segment usage : Air conditioning
Refrigerant : R22
Compressor power supply [V/Ph/Hz] : 400/3/50 460/3/60
Net weight : 65 kg
Gross weight : 70.53 kg
Number of starts per hour [Max] : 12
Oil charge [L] : 3.25 L
Oil reference : 160P
Oil type : Mineral
Refrigerant charge [kg] [Max] : 8.5 kg
MODEL | SM090S4VC |
Voltage | 460v |
Displacement: | 20.97m³/h |
HorsePower | 7.5HP |
EER | 11.4Btu/W |
Capacity(W/BTU/H) | 20400/69600 |
Cop(W/W) | 3.33 |
In addition to the existing SM range compressors previously available, Danfoss is completing its range with 3 compressors. The new SM112-124 and SM/SZ147 compressors benefit from a further improved design to achieve the highest efficiency.
Gas circulation, motor cooling and oil behaviour are improved by a new patented motor cap design.
Part protection and assembly reduces internal leaks and increases life durability.
Improved part isolation reduces greatly acoustic levels.
Gas intake design induces higher resistance to liquid slugging.
