Ultra-High SCOP Ratings: Engineered with premium heat exchangers and continuous-modulation technology to maintain an exceptionally high seasonal coefficient of performance, reducing carbon emissions and energy draw by up to 50%.
Advanced EVI (Enhanced Vapor Injection) Technology: Features a customized liquid-injection circuit that boosts heating capacity and reliability under freezing conditions, ensuring smooth operation even at winter temperatures as low as -25°C.
Smart Multi-Unit Cascading System: Supports modular parallel connection of up to 16 units. The intelligent control system automatically rotates operation schedules to balance workloads and optimizes energy draw based on real-time building demand.
Precision Electronic Expansion Valves (EEV): Utilizes fast-response dual EEV systems to regulate refrigerant flow with pinpoint accuracy, stabilizing target water temperatures within ±0.5°C.
Heavy-Duty Weatherproofing: The chassis is coated with industrial-grade, anti-corrosive powder paint over galvanized steel, accompanied by continuous defrosting logic to prevent ice buildup on fins.
| Engineering Metric | Standard Specification Data |
|---|---|
| Heating Capacity Range | 30 kW / 60 kW / 90 kW / 120 kW (Customizable) |
| Cooling Functionality | Optional Reversible Cycle Available |
| Compressor Brand | Copeland / Panasonic Premium Scroll |
| Throttle Device | Carel / Sanhua Electronic Expansion Valve |
| Max Outlet Water Temp | Up to 60°C (65°C for specialized domestic hot water cycles) |
| Cabinet Construction | Marine-Grade Anti-Corrosion Galvanized Steel Housing |
| Defrosting Mechanism | Intelligent Reverse-Cycle Auto Defrost |
| Certifications | CE, ErP A+++, TUV, ISO9001 Certified |
Hospitality Sector: Constant central hot water and space conditioning for hotels and resorts.
Industrial Plants: Reliable process heating/cooling for manufacturing and food processing lines.
Public Infrastructure: Energy-efficient climate control for schools, hospitals, and office towers.
Agriculture & Aqua-farming: Precision temperature loops for greenhouse cultivation and aquaculture.
Export Packing: All units are securely cradled in international-shipping-grade wooden crates or heavy-duty shockproof pallets to guarantee zero structural movement during transit.

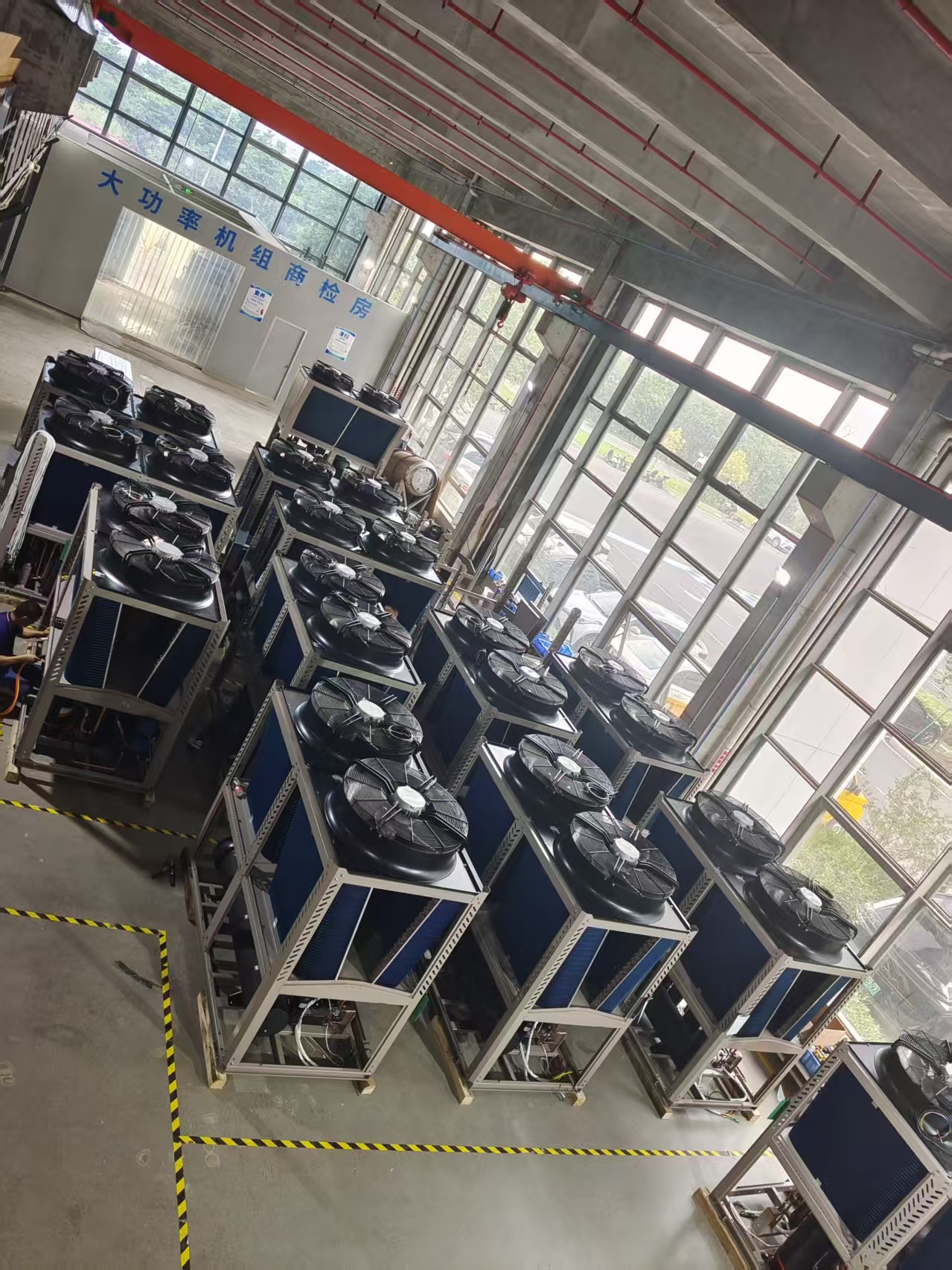

Quality Inspection: Each heat pump undergoes a mandatory 4-hour comprehensive factory runtime test, monitoring electronic currents, pressure baselines, and temperature curves before final crating.
Global Freight Service: We provide flexible shipping terms including FOB, CIF, and DDP with complete documentation support for custom clearance.
