Type :Monoblock
Gas:R32

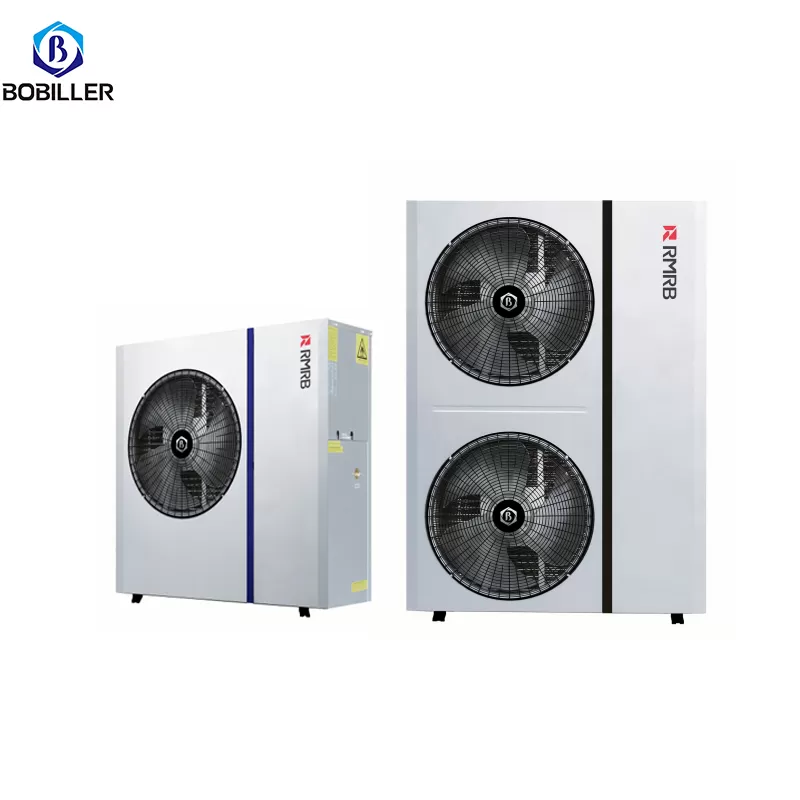

| DC Inverter Heat Pump | Monoblock | RMAW-03ZR1-V | RMAW-04ZR1-V RMAW-04ZR3-V | RMAW-05ZR1-V RMAW-05ZR3-V | RMAW-06ZR1-V RMAW-06ZR3-V | RMAW-08ZR3-V | RMAW-10ZR3-V | |

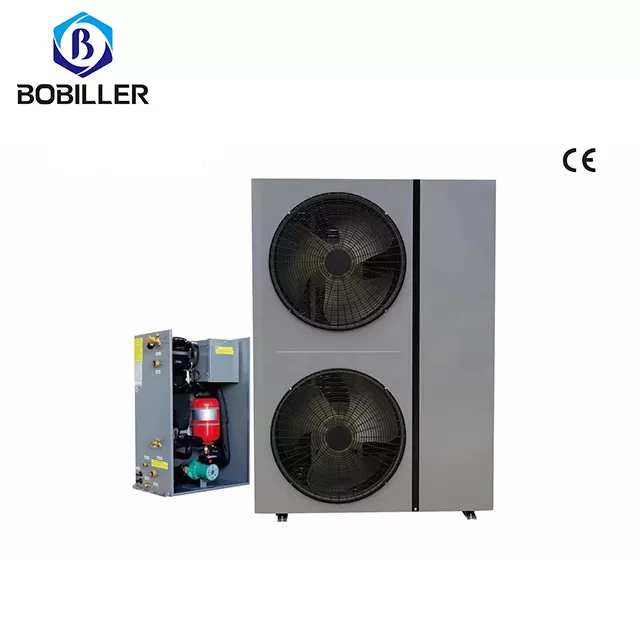

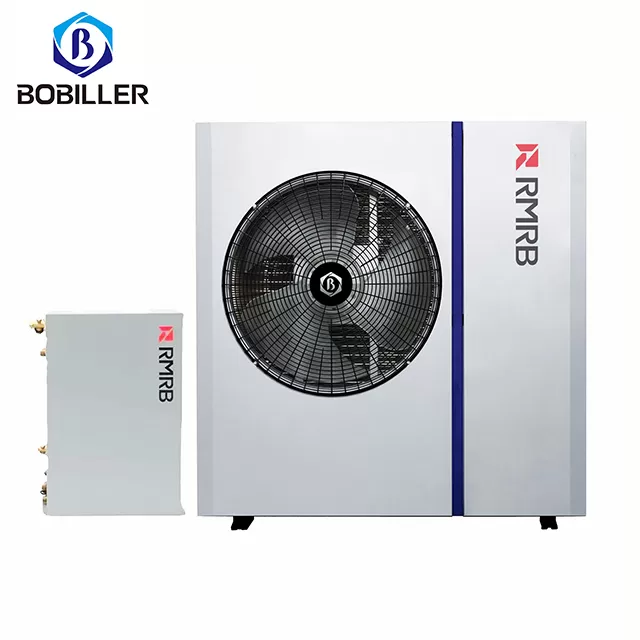

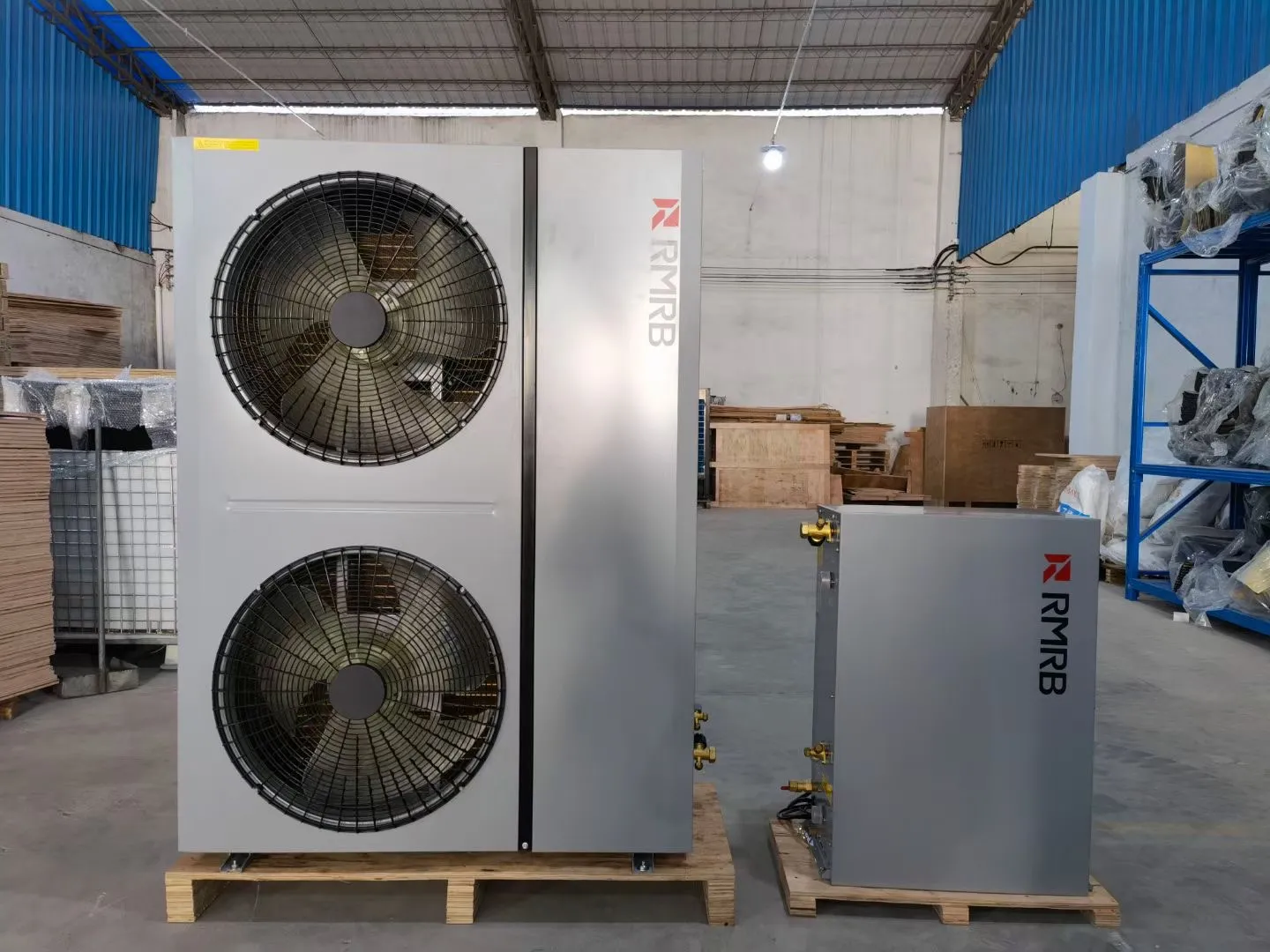

| Split | RMAW-03FR1-V | RMAW-04FR1-V RMAW-04FR3-V | RMAW-05FR1-V RMAW-05FR3-V | RMAW-06FR1-V RMAW-06FR3-V | / | / | ||
| Rated heating capacity | KW | 2.8~10.2 | 3.8~15.8 | 4.5～20.5 | 5.6~23.0 | 7.2~30.5 | 9.5~40.0 | |
| Rate hot water capacity | KW | 2.5～9.5 | 3.5～15 | 4.0~19.4 | 5.6~21.5 | 7.0~28 | 9.0~30.6 | |
| Rate cooling capacity | KW | 2.5～7.5 | 3.8～10 | 4.5~14 | 5.6~16 | 7.0~23 | 9.0~30.6 | |
| Heating power consumption | KW | 1～3 | 1.5～4.5 | 2~5.5 | 2.5~6.6 | 3~9 | 4~10 | |
| Hot water power consumption | KW | 1～3 | 1.5~4.5 | 2~5.5 | 2.5~6.6 | 3~9 | 4~10 | |
| Cooling power consumption | KW | 1～3 | 1.5～4.5 | 2~5.5 | 2.5~6.6 | 3.5~8.5 | 4~10.5 | |
| Voltage | V/Hz | 220-240V～Inverter～1N | 220-240V～Inverter～1N 380-415V～Inverter～3N | 380-415V～Inverter～3N | ||||
| Rated Current | A | 10.5 | 6.12/18.5 | 7.3/23.1 | 10.1/26.1 | 14.9 | 16.7 | |
| Rated heating water temperature | ℃ | Hot water:60℃ Heating:45℃ Cooling:12℃ | ||||||
| Rated water flow | m³/h | 1.7 | 2.7 | 3.5 | 4 | / | / | |
| Rated of waterproof | / | IPX4 | ||||||
| Control mode | / | Heating/Cooling/DHW/Heating+DHW/Cooling+DHW | ||||||
| Refrigeration and volume | / | R410A/R32 (Selectable) | R410A | |||||
| Compressor | Form | / | Double-rotor type | |||||
| Quantity | / | 1 | 1 | 1 | 1 | 1 | 1 | |
| Brand | / | Mitsubishi/ EVI Mitsubishi Inverter (Selectable) | ||||||
| Outdoor unit | Net | mm | 995*470*1000 | 995*470*1000 | 995*470*1385 | 995*470*1385 | 1200*570*1450 | 1200*570*1450 |
| Weight | Kg | 100 | 125 | 150 | 155 | 185 | 200 | |
| Nosie level | dB | ≤50 | ≤50 | ≤52 | ≤52 | ≤55 | ≤55 | |
| Fan | Form | / | Full DC fan motor | |||||
| Circulation pump | Built in | / | Wilo RS28/8 | NO | NO | |||
| Heat exchanger | / | SWEP Plate Heat Exchanger (Selectable) | ||||||
| Operation ambient temperature | ℃ | （-25℃～43℃） | ||||||
| Expansion tank | L | 2 | 2 | 5 | 5 | 5 | 5 | |
| Inlet pipe diameter | mm | DN25 | DN32 | |||||
| Outlet pipe diameter | mm | DN25 | DN32 | |||||
| Monoblock Packing size | mm | 1060*510*1135 | 1060*510*1135 | 1060*510*1135 | 1060*510*1520 | 1260*620*1515 | 1260*620*1515 | |
| Split unit | Outdoor Packing size | mm | 1120*520*1122 | 1120*520*1122 | 1120*520*1532 | 1120*520*1532 | / | / |
| Indoor Packing size | mm | 650*382*828 | 650*382*828 | 650*382*828 | 650*382*828 | / | / | |
| 20 feet container loading | pcs | 42 | 42 | 22 | 22 | 21 | 21 | |
| 40 feet container loading | pcs | 92 | 92 | 46 | 46 | 45 | 45 | |
| Auxiliary Element built-in | KW | 3 | 3 | 3 | 3 | NO | NO | |
| WI-FI function | / | YES | YES | YES | YES | YES | YES | |
| CE certificate, Energy Efficiency label | / | YES | YES | YES | YES | YES | NO | |
| High efficiency | / | erP A+++(35℃),A++(55℃) | ||||||
| RMRB Integrated (split) heat pump Suitable for house heating, refrigeration and domestic hot water | ㎡ | 60~100 | 110～150 | 150～200 | 160～220 | 220～280 | 280～350 | |
