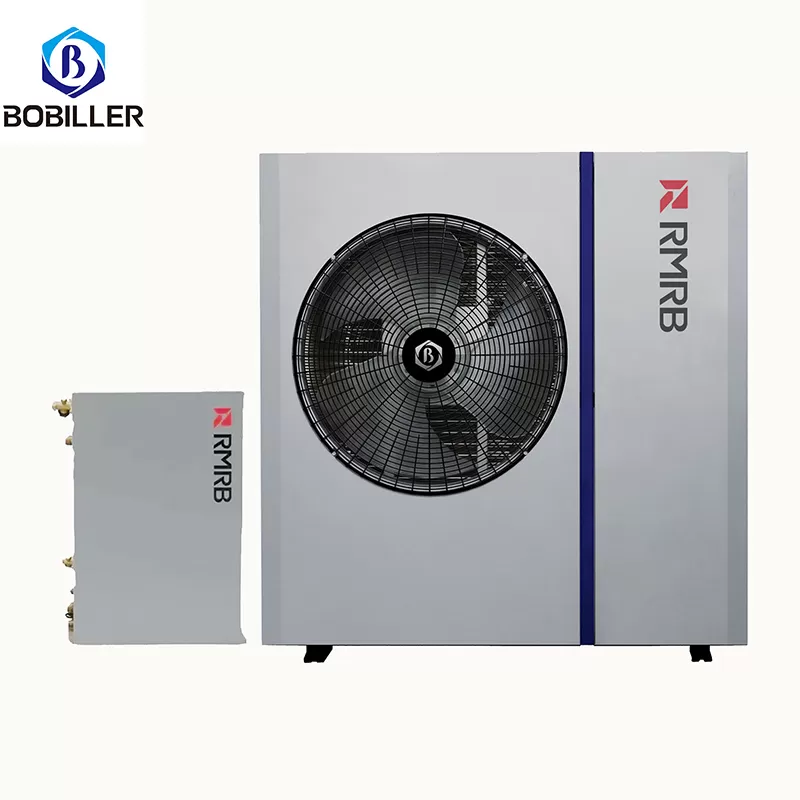

Model:RMAW-04FR1-V
Gas:R32
Model | RMAW-04FR1-V | ||
Rated heating capacity | KW | 3.8~15.8 | |
Rate hot water capacity | KW | 3.5～15 | |
Rate cooling capacity | KW | 3.8～10 | |
Heating power consumption | KW | 1.5～4.5 | |
Hot water power consumption | KW | 1.5~4.5 | |
Cooling power consumption | KW | 1.5～4.5 | |
Voltage | V/Hz | 220-240V～Inverter～1N | |
Rated Current | A | 6.12/18.5 | |
Rated heating water temperature | ℃ | Hot water:60℃ Heating:45℃ Cooling:12℃ | |
Rated water flow | m³/h | 2.7 | |
Rated of waterproof | / | IPX4 | |
Control mode | / | Heating/Cooling/DHW/Heating+DHW/Cooling+DHW | |
Refrigeration and volume | / | R32 | |
Compressor | / | Mitsubishi/ EVI Mitsubishi Inverter (Selectable) | |
Nosie level | dB | ≤50 | |
Fan | form | Full DC fan motor | |
Circulation pump Built in | Wilo RS28/8 | ||
Heat exchanger | / | SWEP Plate Heat Exchanger (Selectable) | |
Operation ambient temperature | ℃ | （-25℃～43℃） | |
Expansion tank | L | 2 | |
Inlet pipe diameter | mm | DN25 | |
Outlet pipe diameter | mm | DN25 | |
Auxiliary Element built-in | KW | 3 | |
WI-FI function | / | YES | |
High efficiency | / | erP A+++(35℃),A++(55℃) | |
