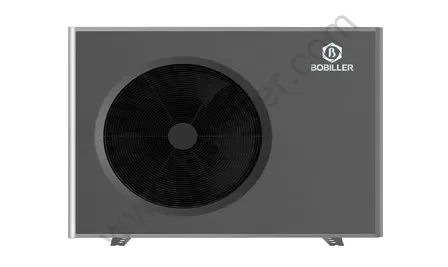

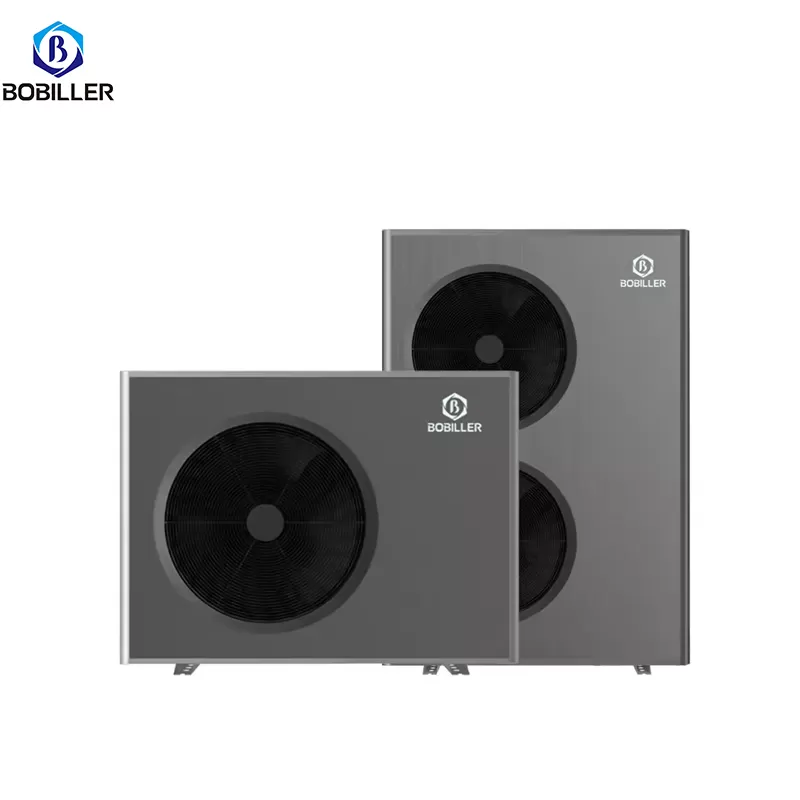

1.Air source heat pump adopting R410A/R32 refrigerant and circulating heating method,is able to keep its energy efficiency high.
2.ASHP Heating Capacity: DC Inverter 8kw 10kw 16kw 18kw 20kw 30kw heat pump.
3.Best Selling Market: Global, especially in North & East Europe, North America,ect.

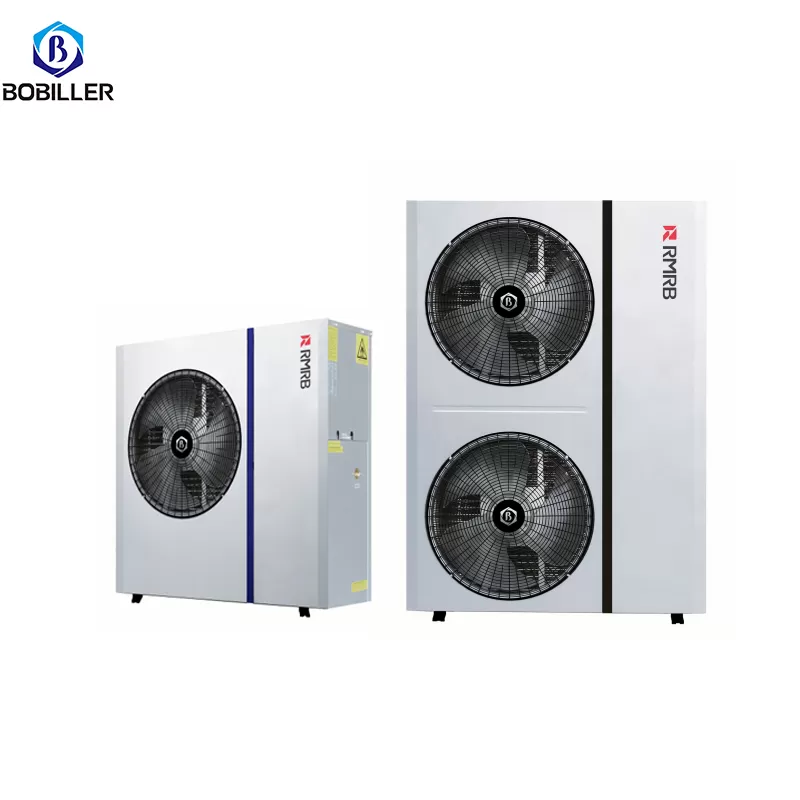

| DC Inverter Heat Pump | Monoblock | RMAW-03ZR1-V | RMAW-04ZR1-V RMAW-04ZR3-V | RMAW-05ZR1-V RMAW-05ZR3-V | RMAW-06ZR1-V RMAW-06ZR3-V | RMAW-08ZR3-V | RMAW-10ZR3-V | |
| Rated heating capacity | KW | 2.8~10.2 | 3.8~15.8 | 4.5～20.5 | 5.6~23.0 | 7.2~30.5 | 9.5~40.0 | |
| Rate hot water capacity | KW | 2.5～9.5 | 3.5～15 | 4.0~19.4 | 5.6~21.5 | 7.0~28 | 9.0~30.6 | |
| Rate cooling capacity | KW | 2.5～7.5 | 3.8～10 | 4.5~14 | 5.6~16 | 7.0~23 | 9.0~30.6 | |
| Heating power consumption | KW | 1～3 | 1.5～4.5 | 2~5.5 | 2.5~6.6 | 3~9 | 4~10 | |
| Hot water power consumption | KW | 1～3 | 1.5~4.5 | 2~5.5 | 2.5~6.6 | 3~9 | 4~10 | |
| Cooling power consumption | KW | 1～3 | 1.5～4.5 | 2~5.5 | 2.5~6.6 | 3.5~8.5 | 4~10.5 | |
| Voltage | V/Hz | 220-240V～Inverter～1N | 220-240V～Inverter～1N 380-415V～Inverter～3N | 380-415V～Inverter～3N | ||||
| Rated Current | A | 10.5 | 6.12/18.5 | 7.3/23.1 | 10.1/26.1 | 14.9 | 16.7 | |
| Rated heating water temperature | ℃ | Hot water:60℃ Heating:45℃ Cooling:12℃ | ||||||
| Rated water flow | m³/h | 1.7 | 2.7 | 3.5 | 4 | / | / | |
| Rated of waterproof | / | IPX4 | ||||||
| Control mode | / | Heating/Cooling/DHW/Heating+DHW/Cooling+DHW | ||||||
| Refrigeration and volume | / | R410A/R32 (Selectable) | R410A | |||||
| Compressor | Form | / | Double-rotor type | |||||
| Quantity | / | 1 | 1 | 1 | 1 | 1 | 1 | |
| Brand | / | Mitsubishi/ EVI Mitsubishi Inverter (Selectable) | ||||||
| Outdoor unit | Net | mm | 995*470*1000 | 995*470*1000 | 995*470*1385 | 995*470*1385 | 1200*570*1450 | 1200*570*1450 |
| Weight | Kg | 100 | 125 | 150 | 155 | 185 | 200 | |
| Nosie level | dB | ≤50 | ≤50 | ≤52 | ≤52 | ≤55 | ≤55 | |
| Fan | Form | / | Full DC fan motor | |||||
| Circulation pump | Built in | / | Wilo RS28/8 | NO | NO | |||
| Heat exchanger | / | SWEP Plate Heat Exchanger (Selectable) | ||||||
| Operation ambient temperature | ℃ | （-25℃～43℃） | ||||||
| Expansion tank | L | 2 | 2 | 5 | 5 | 5 | 5 | |
| Inlet pipe diameter | mm | DN25 | DN32 | |||||
| Outlet pipe diameter | mm | DN25 | DN32 | |||||
| Monoblock Packing size | mm | 1060*510*1135 | 1060*510*1135 | 1060*510*1135 | 1060*510*1520 | 1260*620*1515 | 1260*620*1515 | |
| 20 feet container loading | pcs | 42 | 42 | 22 | 22 | 21 | 21 | |
| 40 feet container loading | pcs | 92 | 92 | 46 | 46 | 45 | 45 | |
| Auxiliary Element built-in | KW | 3 | 3 | 3 | 3 | NO | NO | |
| WI-FI function | / | YES | YES | YES | YES | YES | YES | |
| CE certificate, Energy Efficiency label | / | YES | YES | YES | YES | YES | NO | |
| High efficiency | / | erP A+++(35℃),A++(55℃) | ||||||

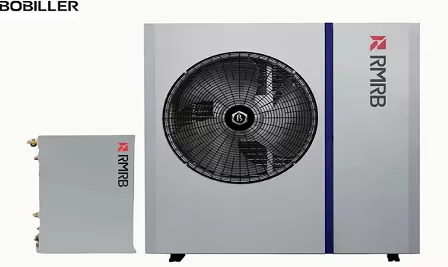

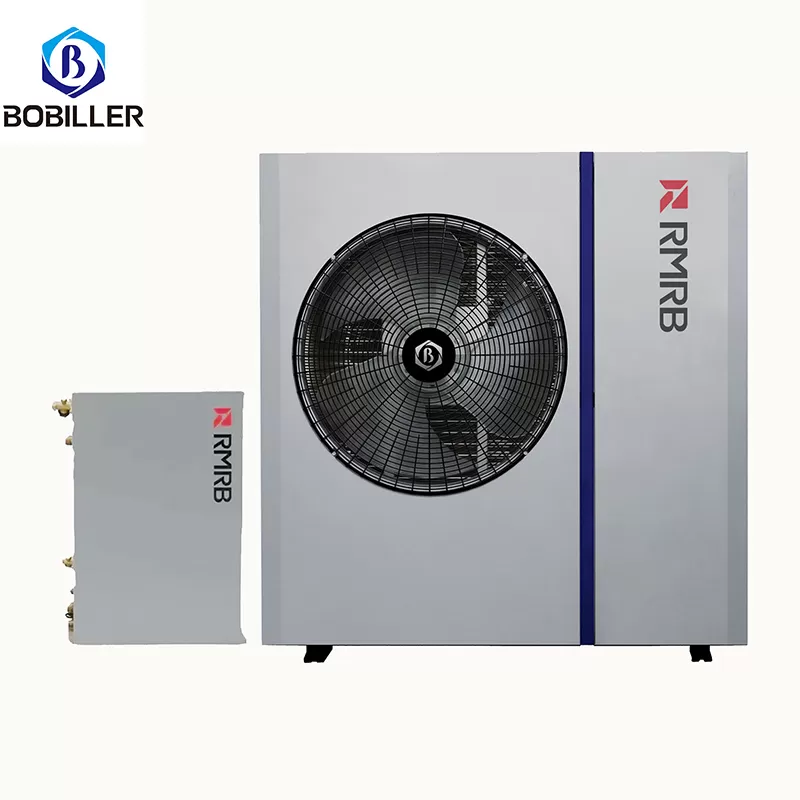

| RMRB Integrated (split) heat pump Suitable for house heating, refrigeration and domestic hot water | ㎡ | 60~100 | 110～150 | 150～200 | 160～220 | 220～280 | 280～350 | |
Uses R-32 with low global warming potential (GWP).
Automatically adjusts capacity for optimal energy efficiency.
Provides effective heating and cooling without combustion.
Reduces energy consumption and carbon emissions significantly.
Operates at low noise levels (as low as 37.8 dB(A)).
Suitable for residential, commercial, and industrial use.
WiFi-enabled for remote management and monitoring.
Choose R32 DC Inverter Heat Pumps for efficient, sustainable heating and cooling solutions.
Q:What can you buy From us ?
A:Heat pump water heaters,monoblock heat pump ,swimming pool heat pump,commerical heat pump and so on .
Q:How about your delivery time for DC inverter heat pump?
A:Generally,it will take 20-30 working days.
Q:What is your terms of delivery?
A:FOB,CFR,CIF,EXW.
Q:Where are heat pump export to till now?
A:Currently the products has been exported to Western Europe, Estern Europe, North America,South America, Southeast Asia,
Africa, Oceania, Mid East, Eastern Asia.
