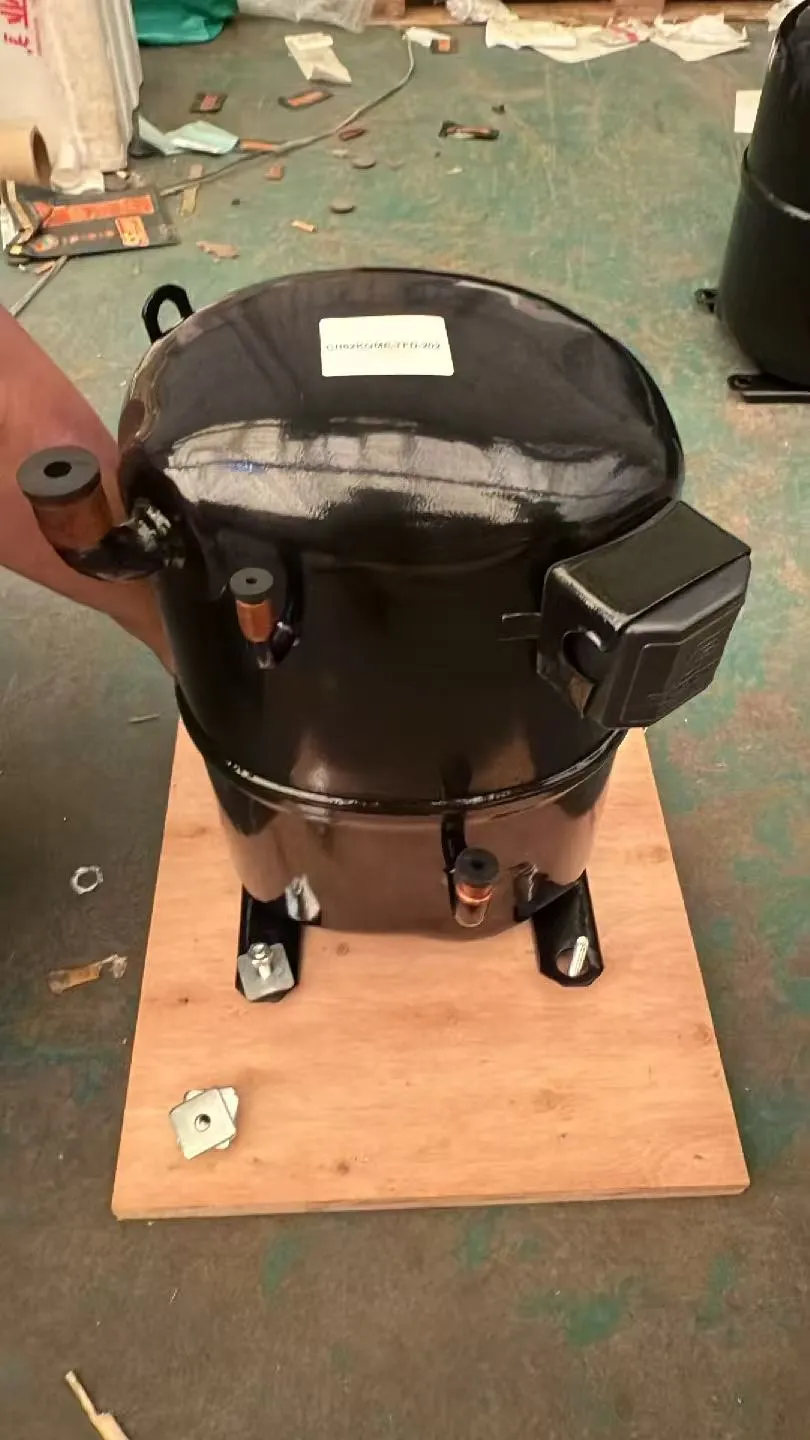

Copeland CR62KQM-TFD-202 Technical Specifications
• Brand: Copeland (Emerson)
• Nominal Horsepower: 5 HP
• Compressor Type: Hermetic Reciprocating
• Refrigerant: R22
• Voltage/Phase/Frequency: 380-420V / 3 Phase / 50Hz or 380-460V / 3 Phase / 60Hz
• Cooling Capacity (50Hz): Approx. 51,500 BTU/hr (15,093 W)
• Cooling Capacity (60Hz): Approx. 61,300 BTU/hr (5 Tons)
• Rated Load Amps (RLA): 8.8 A
• Locked Rotor Amps (LRA): 55 A
• Net Weight: 36 kg (approx. 79 lbs)
• Applications: Commercial unitary air conditioners, rooftop units, cold storage refrigeration, and heat pump systems.
• Key Features: High ambient temperature reliability (up to 55°C), robust internal motor protection, and excellent liquid slugging tolerance.
Exceptional Reliability: Features a time-tested reciprocating design with heavy-duty internal components, offering an extended service life and minimal maintenance requirements.
Superior High-Ambient Performance: Specifically built to operate efficiently in harsh climates and high-ambient temperatures up to 55°C.
Advanced Liquid Handling: Equipped with robust internal suspension and valving systems that provide excellent tolerance against liquid slugging and system oil migration.
Built-In Motor Protection: Internal line break overloads protect the motor from overheating, electrical overcurrent, and phase loss.
Brand: Copeland (Emerson)

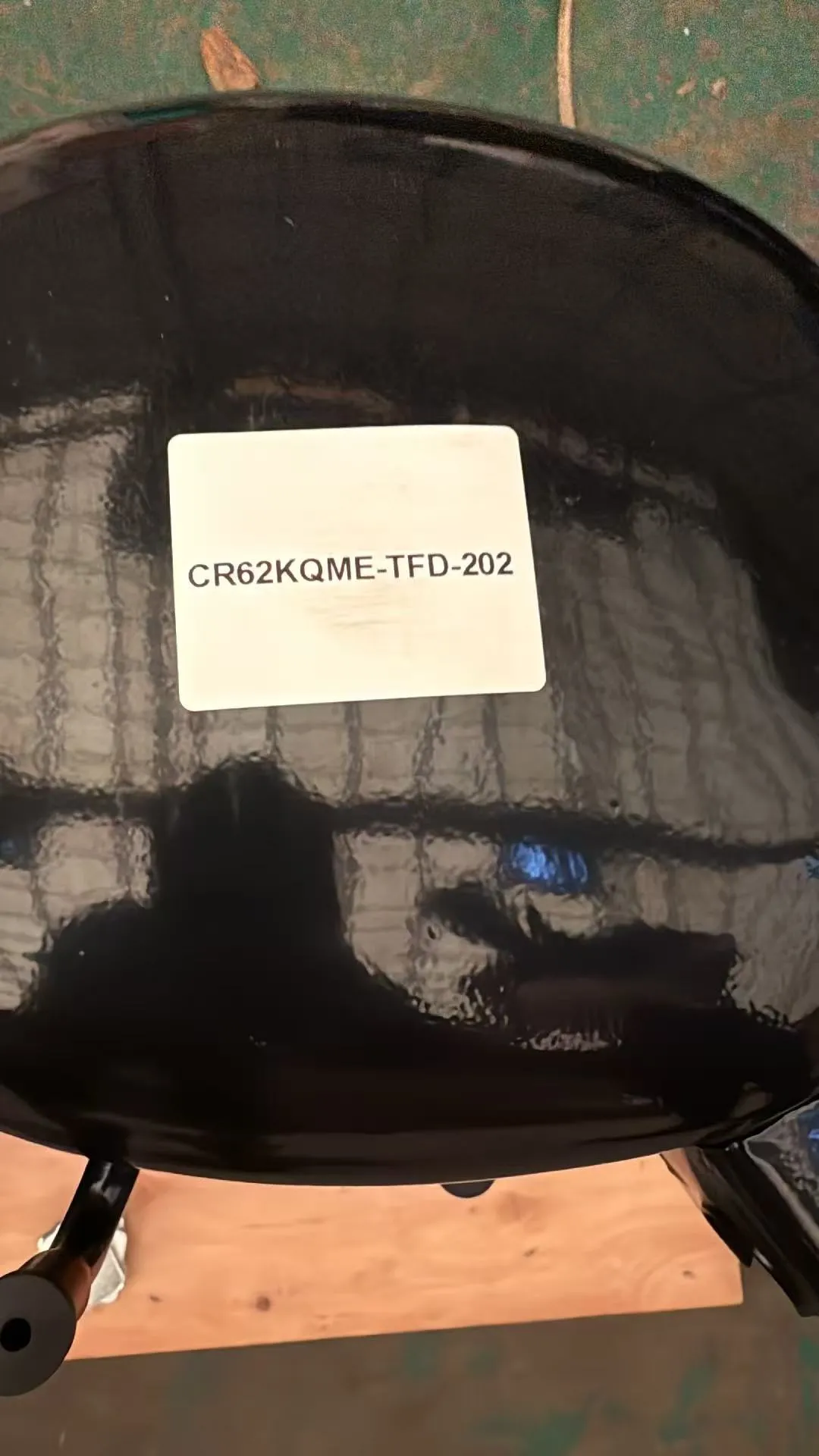

Model Number: CR62KQM-TFD-202
Compressor Type: Hermetic Reciprocating
Nominal Horsepower: 5.0 HP
Refrigerant Type: R22
Oil Type: Mineral Oil (MO)
Power Supply: 380-420V / 3 Phase / 50Hz or 380-460V / 3 Phase / 60Hz
Cooling Capacity at 50Hz: 51,500 BTU/hr (15,093 W)
Cooling Capacity at 60Hz: 61,300 BTU/hr (17,965 W / 5 Tons)
Rated Load Amps (RLA): 8.8 A
Locked Rotor Amps (LRA): 55.0 A
Evaporating Temperature Range: -23.3°C to 12.8°C (-10°F to 55°F)
Suction Line Size (Stub): 7/8 inch
Discharge Line Size (Stub): 1/2 inch
Product Net Weight: 36 kg (79.4 lbs)
Commercial Unitary Air Conditioners
Commercial Rooftop Air Conditioning Packages
Industrial and Commercial Water Chiller Systems
Walk-in Cold Storage and Refrigeration Units
High-Efficiency Residential and Commercial Heat Pumps
