High Efficiency & Reliability: Advanced scroll compliance technology offers unmatched tolerance to liquid slugging and debris.
Low Noise & Vibration: Engineered with a smooth continuous scroll mechanism, ensuring ultra-quiet operation compared to traditional reciprocating piston compressors.
Global Standard Voltage (TFD): Rated for 380V-420V / 3 Phase / 50Hz and 460V / 3 Phase / 60Hz, matching mainstream industrial power grids perfectly.
Standard Brazing Version (BOM 558): Features standard solder/brazed connections for leak-proof installation, equipped with a heavy-duty electrical terminal box.
Brand: Copeland (Emerson)

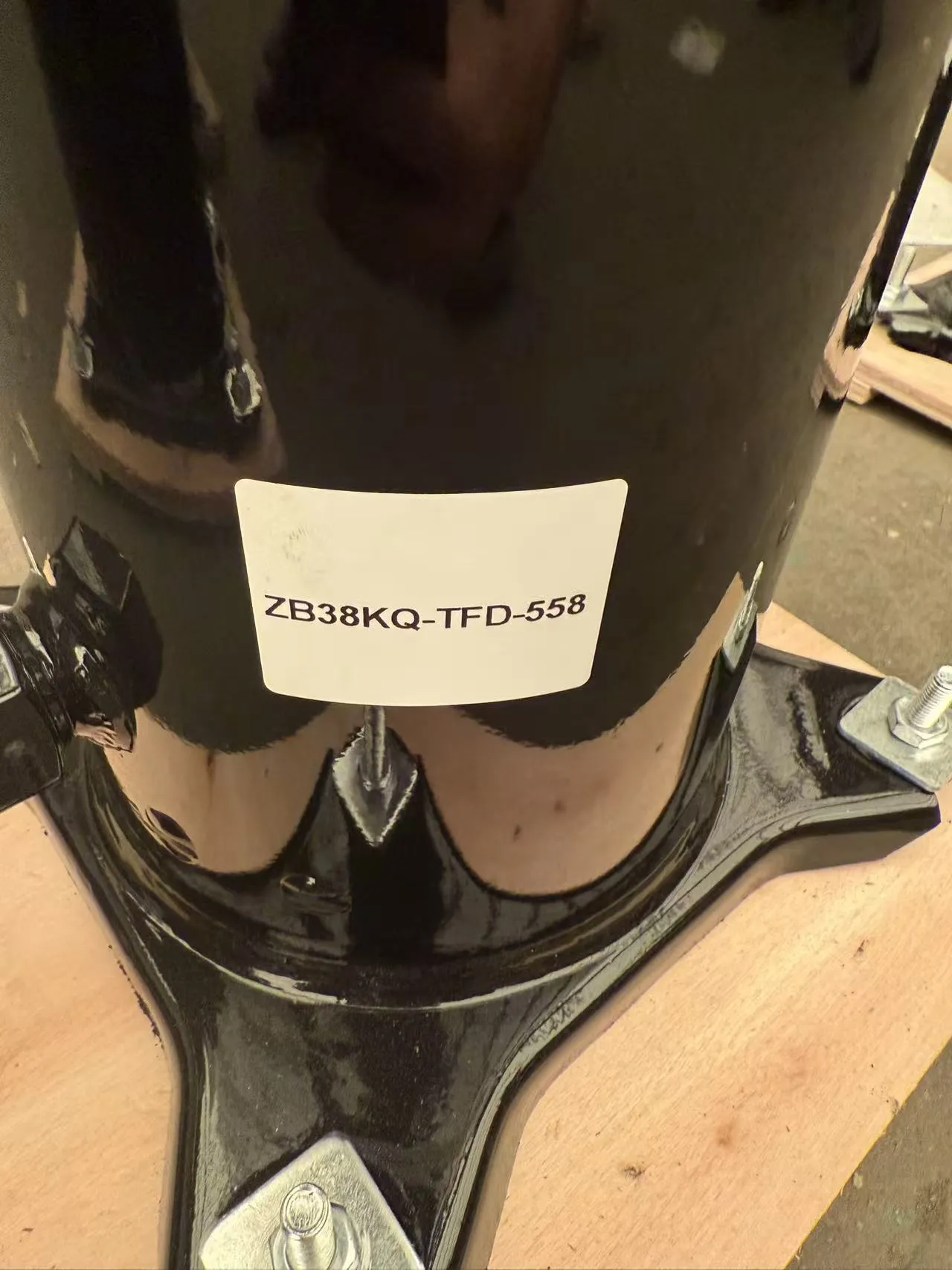

Model Number: ZB38KQ-TFD-558
Nominal Horsepower: 5.0 HP
Displacement (50Hz): 14.4 m³/h
Power Supply: 380V-420V / 3 Ph / 50Hz (460V / 3 Ph / 60Hz)
Approved Refrigerants: R404A, R507, R22, R134a, R407C
Lubricant (Oil Type): Pre-charged with 1.9L POE Synthetic Oil
Connection Type: Brazed / Solder Joints (Suction: 7/8", Discharge: 1/2")
Net Weight: Approx. 37.6 kg
Application Range: Medium & Low Temperature (-20°C to +10°C Evaporating)
Commercial Walk-in Freezers & Cold Storage Rooms
Supermarket Display Cases & Cold Beverage Racks
Food Processing & Catering Refrigeration Units
Industrial Water Chillers & Glycol Cooling Systems

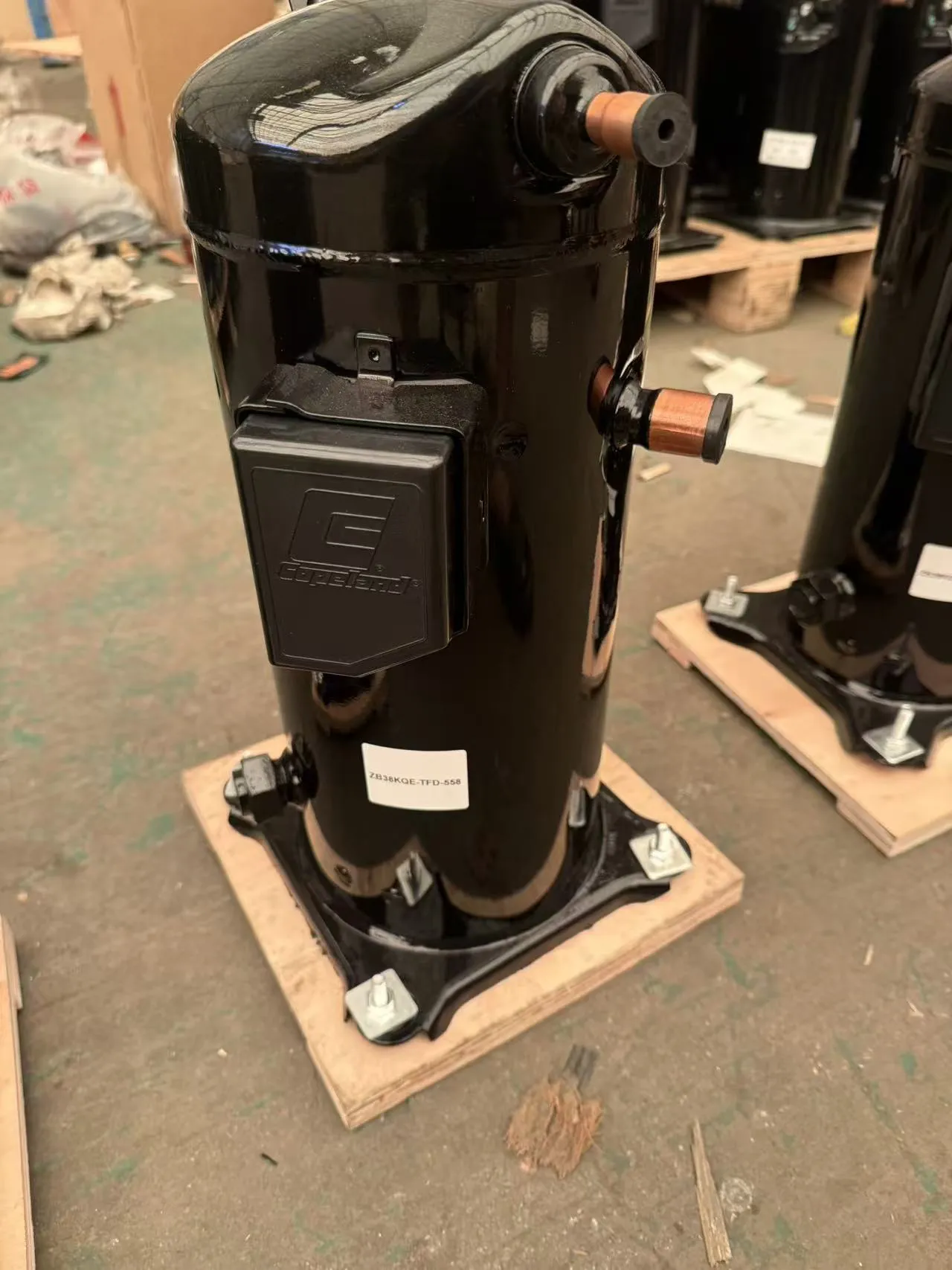

The Copeland Scroll™ ZB38KQ-TFD-558 represents the highest standard in hermetic scroll technology for medium-to-low temperature refrigeration applications. Engineered by Copeland (formerly Emerson), this 5 HP compressor delivers unparalleled seasonal efficiency, whisper-quiet operation, and proven durability under demanding commercial and industrial workloads.
Standard Configuration (BOM 558)
The specific Bill of Materials (BOM) code 558 designates this unit as a standard brazing configuration:
• Connection Form: Straight solder/sweat stubs for quick and fully sealed welding.
• Electrical Housing: Includes a robust terminal box with high-grade internal electrical connections and wiring schematics printed on the inner lid.
• Mounting Kit: Shipped with industrial rubber grommets for effective vibration isolation.
Technical Parameters & Performance Data
• Compressor Family: ZB Series (Optimized for Medium/Low Temp Refrigeration)
• Motor Voltage Code (TFD): 380V-420V / 3 Phase / 50Hz (or 460V / 3 Phase / 60Hz)
• Nominal Motor Horsepower: 5.0 HP
• Displacement at 50Hz: 14.4 m³/h
• Displacement at 60Hz: 17.4 m³/h
• Maximum Continuous Current (MCC): 11.2 A
• Locked Rotor Amperage (LRA): 65.5 A
• Lubrication: Factory pre-charged with 1.9 Liters of premium POE (Polyolester) Synthetic Oil
• Suction Connection Size: 7/8 inch (Brazing)
• Discharge Connection Size: 1/2 inch (Brazed)
• Net Weight: 37.6 kg (Gross weight with packaging: ~41.5 kg)
Operating Envelope & Limits
• Evaporating Temperature Range: -20°C to +10°C (-4°F to +50°F)
• Maximum Allowable Pressure (High Side): 32.0 bar
• Maximum Allowable Pressure (Low Side): 22.6 bar
Why Choose the Copeland ZB38KQ Scroll Compressor?
1. Axial & Radial Scroll Compliance: Allows the scroll elements to separate in the presence of liquid refrigerant or debris, significantly preventing mechanical damage and increasing life expectancy.
2. Fewer Moving Parts: Designed with fewer internal components than traditional reciprocating compressors, radically reducing friction, wear, and mechanical failure rates.
3. Multi-Refrigerant Compatibility: Perfectly suited for HFC and HCFC refrigerants, including R404A, R507, R134a, R407C, and traditional R22.
4. Energy Efficiency: Provides significant savings on utility bills due to low power consumption and high Coefficient of Performance (COP).
Related Products
Bobiller, The Best Mate!
Our company offers a complete line of heat pump units and refrigeration equipment systems, as well as refrigeration compressors, copper fittings, expansion valves, dual-measure gauges, and other accessories and tools, so you can get everything you need for the refrigeration industry in one place. And we can provide you with customized manufacturing services.

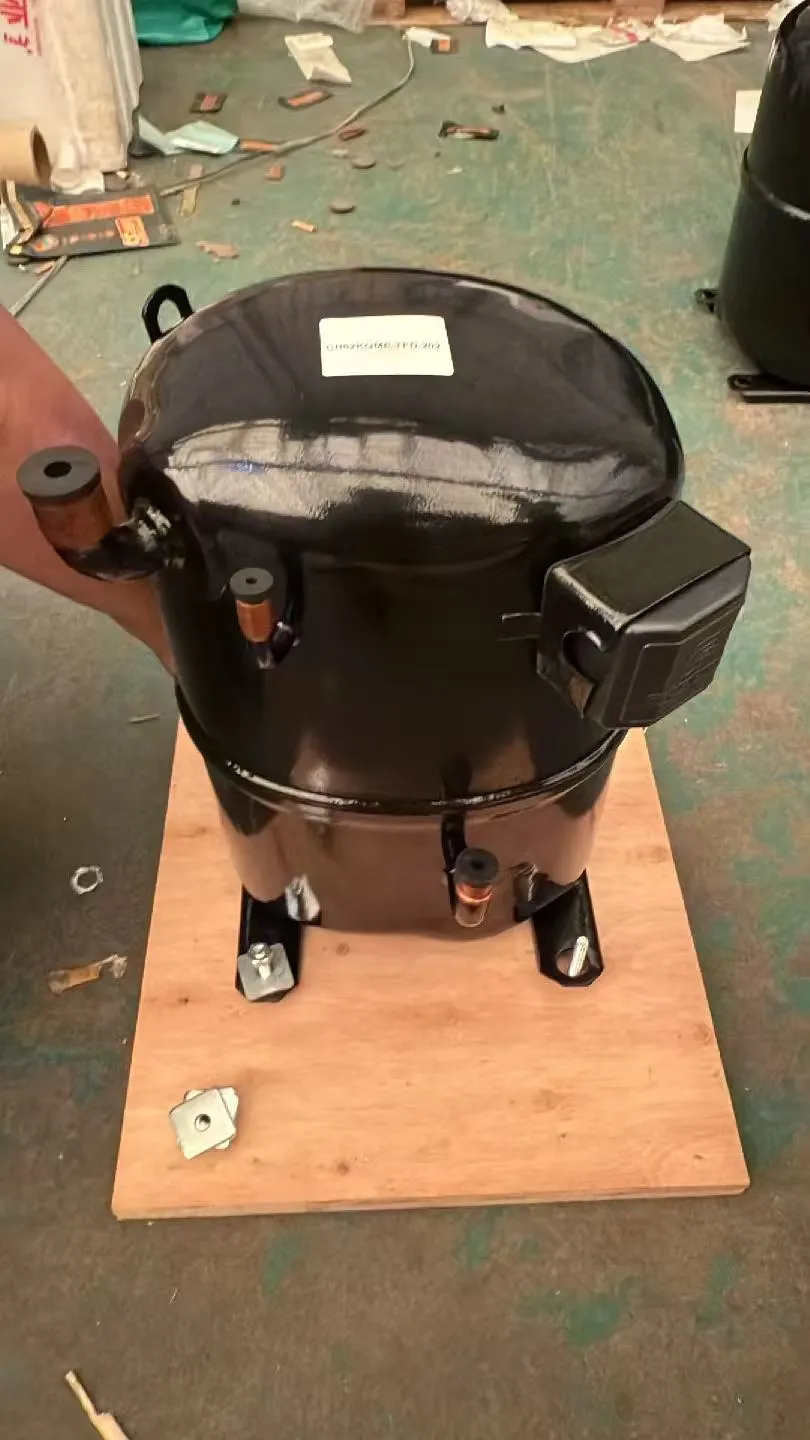

Copeland CR Series Hermetic Reciprocating Compressors — 1.5 to 6 HP R22 / R407C
