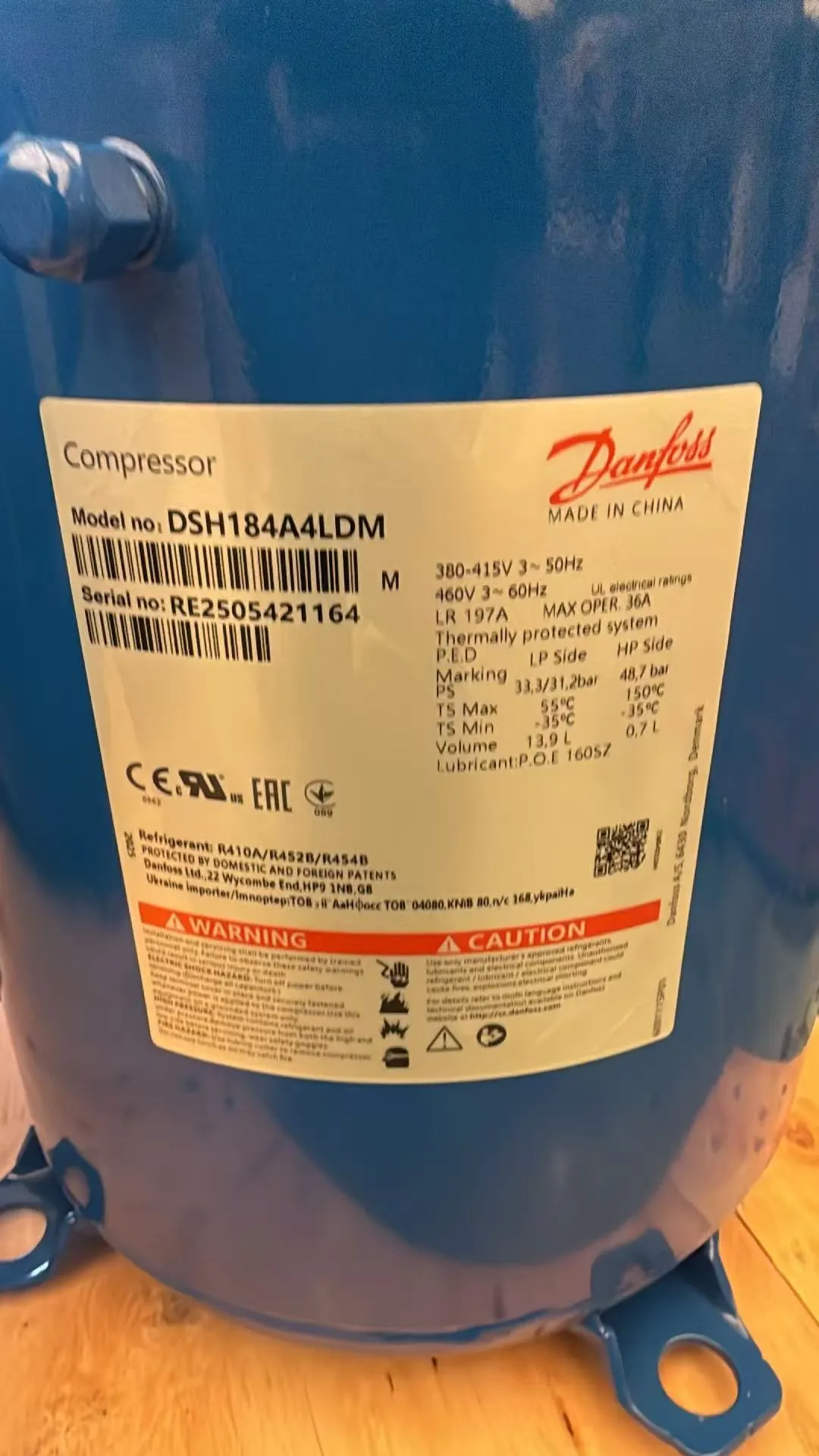

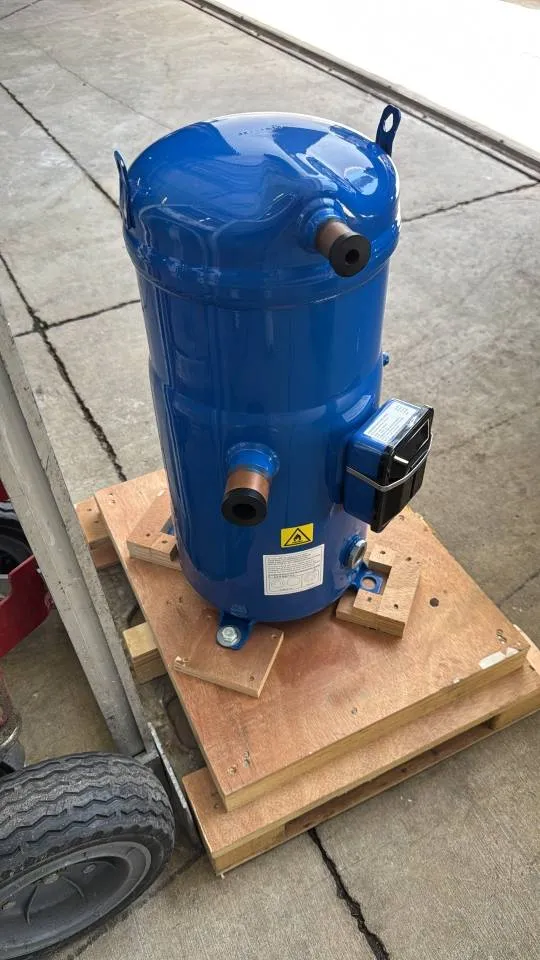

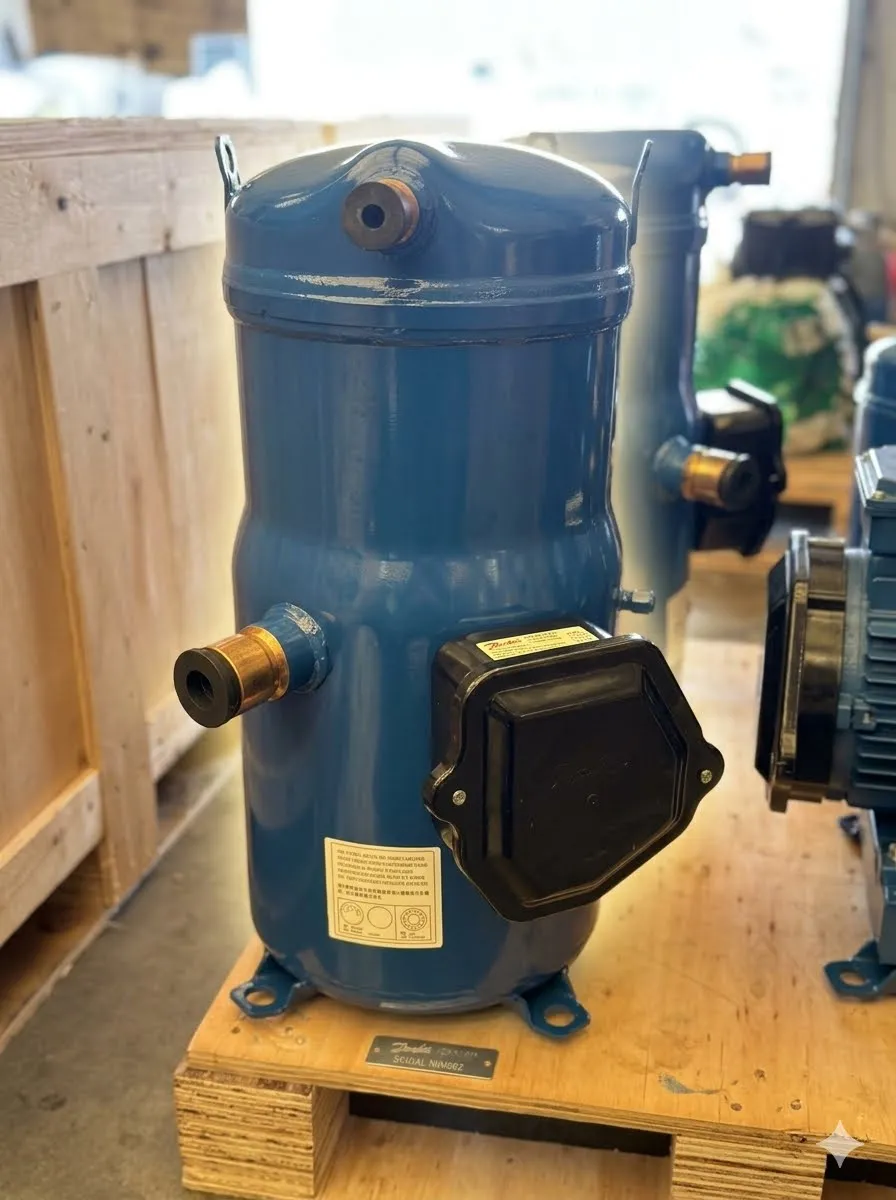

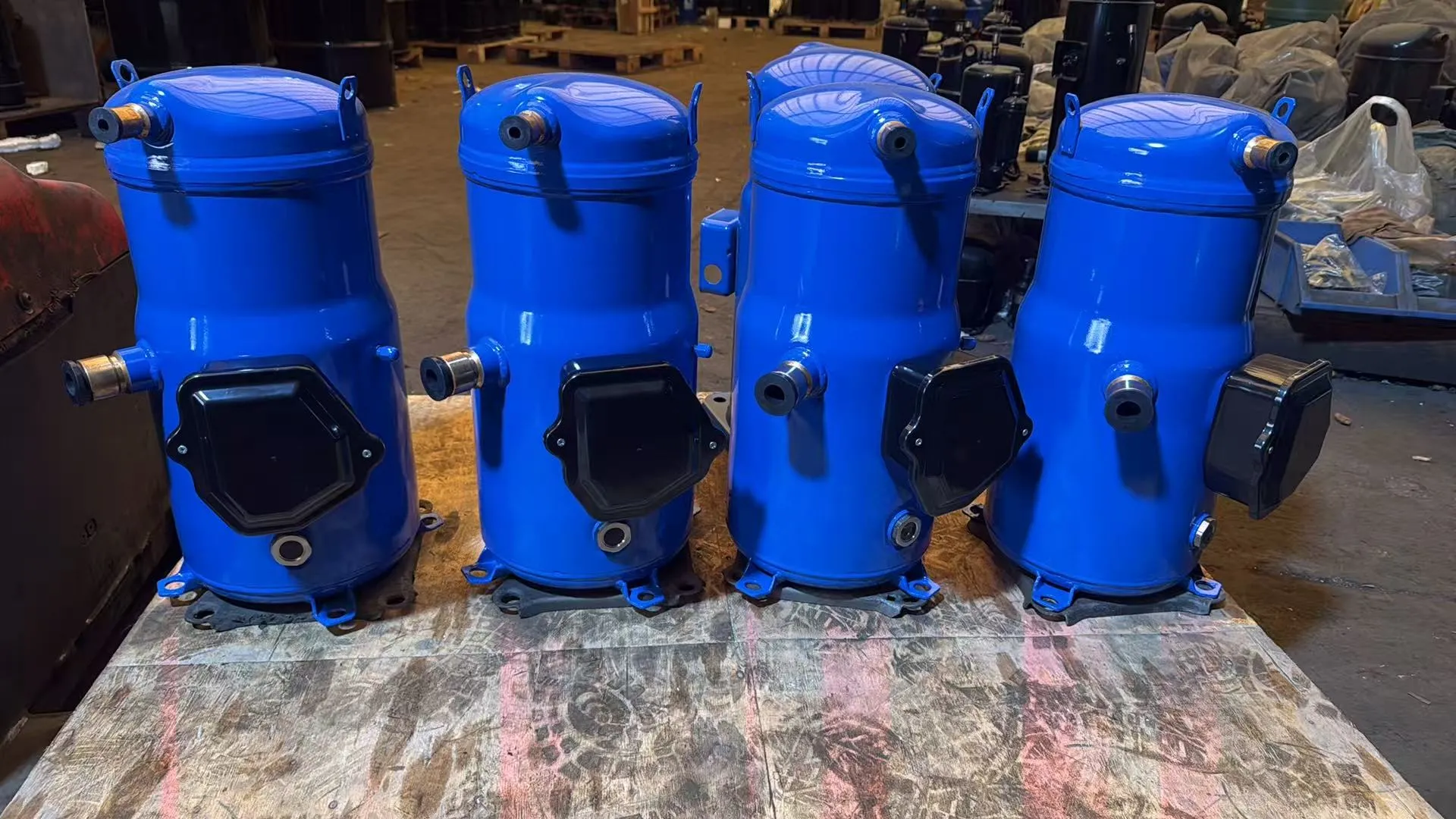

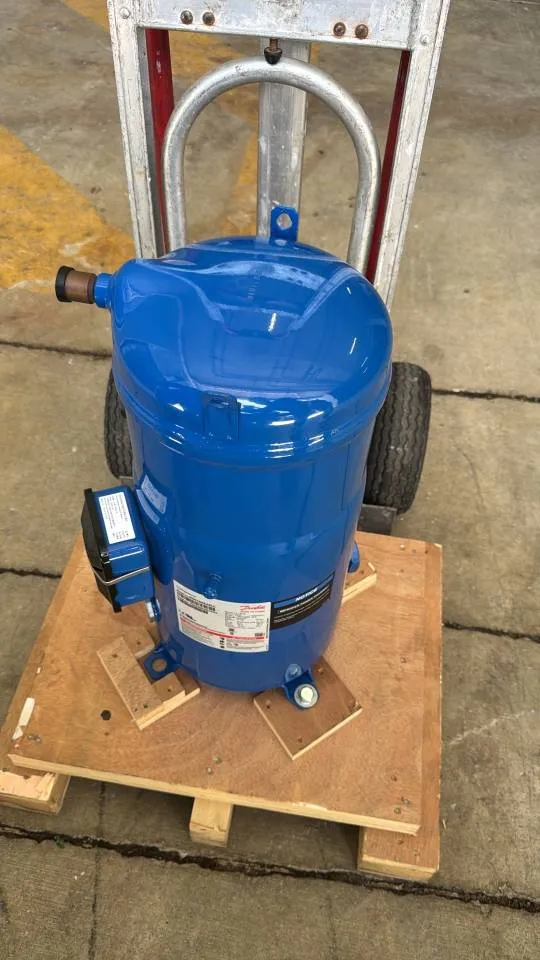

Brand: Danfoss
Model: DSH184A4ALD / DSH184A4ALC
Power: 15 HP (15 Horsepower)
Refrigerant: R410A, R452B, R454B
Power Supply: 380-415V / 3Phase / 50Hz & 460V / 3Phase / 60Hz
Displacement: 29.6 m³/h (50Hz) / 35.8 m³/h (60Hz)
Cooling Capacity: 53.16 kW / 181,400 Btu/h
Oil Type: POE Oil (160SZ, 3.6L)
Connection: Brazed (Suction 1-3/8", Discharge 7/8")
Net Weight: 72 KG
Equipped with Intermediate Discharge Valves (IDVs) for higher seasonal energy efficiency.
Low vibration and low noise design, perfect for commercial chillers and modular AC systems.
100% original and brand new with reliable quality control.
| Item | Details |
|---|---|
| Product Name | Danfoss Hermetic Scroll Compressor DSH184A4ALD |
| Horsepower | 15 HP (15 Horsepower) |
| Core Technology | Built-in Intermediate Discharge Valves (IDVs) for peak efficiency |
| Product Condition | 100% Brand New and Original Danfoss Brand |
| Primary Application | Commercial Rooftop AC, Modular Chillers, VRF Systems, Process Cooling |
| Technical Parameter | Specification Data |
|---|---|
| Brand | Danfoss (Performer Series) |
| Model Code | DSH184A4ALD / DSH184A4ALC / DSH184A4LDM |
| Refrigerants | R410A, R452B, R454B (Multi-refrigerant optimized) |
| Power Supply (50Hz) | 380-415V / 3 Phase / 50Hz (Displacement: 29.6 m³/h) |
| Power Supply (60Hz) | 460V / 3 Phase / 60Hz (Displacement: 35.8 m³/h) |
| Cooling Capacity | 53.16 kW / 181,400 Btu/h (@60Hz) |
| COP (Energy Efficiency) | 3.25 W/W |
| Oil Type & Volume | POE Oil (160SZ) / 3.6 Liters |
| Suction Connection | 1-3/8 inch (Brazed Type) |
| Discharge Connection | 7/8 inch (Brazed Type) |
| Net Weight | 72 KG (Approx. 158.7 lbs) |
| Motor Protection | Internal Bimetallic Overload Protector |
| Key Feature | What You Get (Buyer Benefits) |
|---|---|
| Next-Gen IDV Design | Automatically adapts to pressure changes, saving up to 15% on energy bills. |
| Robust Liquid Handling | High tolerance to liquid slugging with a lead-free premium bearing design. |
| Low Noise & Vibration | Acoustic optimization minimizes mechanical vibration in commercial zones. |
| Drop-in Compatibility | Perfect dimensional match to directly replace older Danfoss SH184 models. |
| Logistics Item | Policy & Service Options |
|---|---|
| Package Type | Standard industrial single pack / Secure heavy-duty wooden pallet |
| Stock Status | Large stock available in warehouse for immediate global dispatch |
| Lead Time | Shipped within 3-7 days after payment confirmation |
| Shipping Methods | Express (DHL / FedEx / UPS), Air Freight, Sea Freight (LCL/FCL) |
