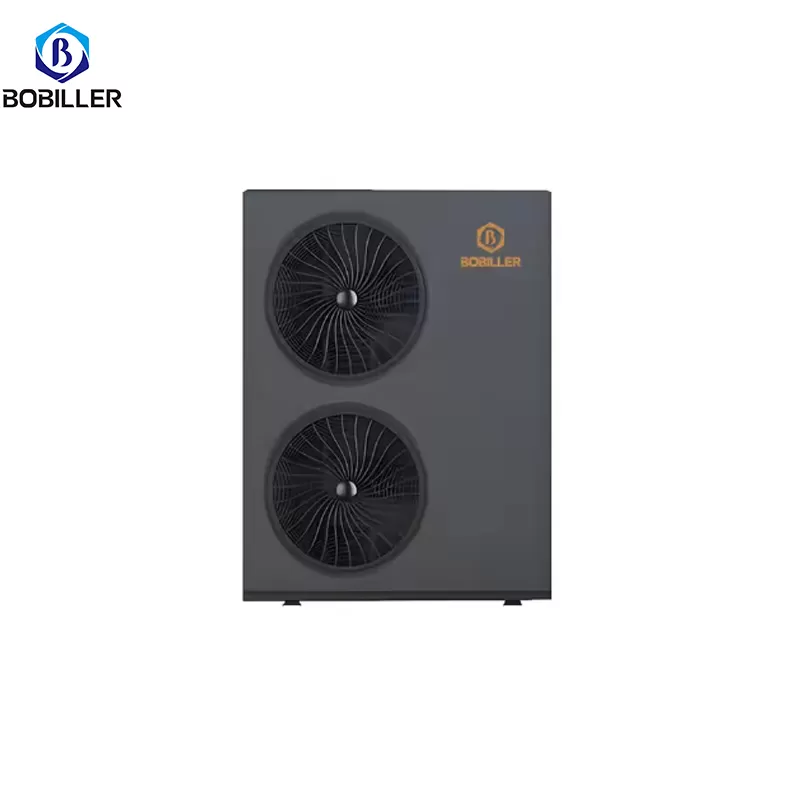

| Full-Inverter, Heating & Cooling, sheet metel & ABScasing, R32, COP up to 13 | ||||||||||
| Features: 1. Fully Inverter with R32 gas. High-end Mitsubishi. 2. Heating & Cooling function. 3. DC Inverter Fan motor. Ultra quiet operation. 4. Hot gas defrosting. 5. Intelligent logic to offer constant pool temperature. 6. Electronic Expansion Valve | R32 | |||||||||
| Model No. | 5kW | 7kW | 9kW | 12kW | 15kW | 21kW | 32kW | 21kW | 32kW | |
| * Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out | ||||||||||
| Heating Capacity (kW) | 7.6~1.7 | 9.5~2.3 | 13~3.0 | 17~3.8 | 21~4.8 | 28~6.8 | 35~8.8 | 28~6.8 | 35~8.8 | |
| Power Input (kW) | 1.12~0.11 | 1.40~0.15 | 1.91~0.19 | 2.5~0.24 | 3.09~0.30 | 4.12~0.43 | 5.15~0.56 | 3.97~0.43 | 5.15~0.56 | |
| COP | 15.8~6.8 | 15.8~6.8 | 16~6.8 | 15.8~6.8 | 15.8~6.8 | 15.8~6.8 | 15.8~6.8 | 15.8~6.8 | 15.8~6.8 | |
| * Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out | ||||||||||
| Heating Capacity (kW) | 6.1~1.4 | 7.6~1.9 | 9.8~2.3 | 13.5~3 | 16.5~3.8 | 23~5.5 | 25.5~6.4 | 23~5.5 | 25.5~6.4 | |
| Power Input (kW) | 1.24~0.18 | 1.55~0.25 | 1.96~0.30 | 2.76~0.39 | 3.37~0.5 | 4.7~0.72 | 5.2~0.84 | 4.7~0.72 | 5.2~0.84 | |
| COP | 7.6~4.9 | 7.6~4.9 | 7.6~5 | 7.6~4.9 | 7.6~4.9 | 7.6~4.9 | 7.6~4.9 | 7.6~4.9 | 7.6~4.9 | |
| * Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out | ||||||||||
| Cooling Capacity (kW) | 4.2~1.0 | 5.3~1.3 | 7.2~1.7 | 9.4~2.1 | 11.6~2.7 | 14.9~3.8 | 19.3~4.9 | 14.9~3.8 | 19.3~4.9 | |
| Power Input (kW) | 1.11~0.15 | 1.4~0.19 | 1.89~0.25 | 2.47~0.31 | 3.05~0.4 | 3.92~0.57 | 5.08~0.73 | 3.92~0.57 | 5.08~0.73 | |
| EER | 6.6~3.8 | 6.7~3.8 | 6.7~3.8 | 6.7~3.8 | 6.7~3.8 | 6.7~3.8 | 6.7~3.8 | 6.7~3.8 | 6.7~3.8 | |
| * General data | ||||||||||
| Power supply | 220~240V/1/50 | 380~415V/3/50 | ||||||||
| Max Power Input (kW) | 1.55 | 1.78 | 2.2 | 2.6 | 3.2 | 4.45 | 4.76 | 6.43 | 6.93 | |
| Max Current (A) | 7.3 | 8.3 | 10.2 | 12 | 14.7 | 20.4 | 30 | 7.9 | 11.3 | |
| Water Flow Volume (m3/h) | 2.5 | 3.5 | 4.5 | 5.5 | 6.5 | 9 | 12 | 9 | 12 | |
| Refrigerant | R32 | |||||||||
| Heat Exchanger | Titanium | |||||||||
| Air Flow Direction | Horizontal | |||||||||
| Kind of defrost | by 4 way valve | |||||||||
| Working temp. range (℃) | -15~43 | |||||||||
| Casing Material | SHEET METEL | |||||||||
| Water Proof Level | IPX4 | |||||||||
| Noise level 1m dB(A) | 39~49 | 40~52 | 42~53 | 43~55 | 45~56 | 47~58 | 49~59 | 47~58 | 49~59 | |
| Noise level 10m dB(A) | 20~29 | 20~32 | 22~33 | 23~35 | 25~36 | 27~38 | 29~39 | 27~38 | 29~39 | |
| Net Weight (kg) | 42 | 43 | 53 | 54 | 58 | 88 | 98 | 88 | 98 | |
| Gross Weight (kg) | 53 | 54 | 64 | 65 | 69 | 99 | 110 | 99 | 110 | |
| Net Dimensions (mm) | 864*349*592 | 925*364*642 | 1084*399*737 | |||||||
| Package Dimensions (mm) | 930*400*640 | 990*435*760 | 1146*460*862 | |||||||
