| Parameter / Item | Technical Specification Details |
|---|---|
| Model / Capacity | 300 Liters (79.2 Gallons) |
| Tank Orientation | Vertical Floor-Standing |
| Inner Tank Material | Food-grade SUS304 Stainless Steel / Heavy-duty Enameled Steel |
| Outer Shell Material | Painted Galvanized Steel / High-quality Color Steel |
| Insulation Layer | 50mm - 60mm High-Density Polyurethane (PU) Integral Foaming |
| Max Working Pressure | 0.6 MPa / 6 Bar (0.9 MPa / 9 Bar customizable) |
| Hydraulic Test Pressure | 1.2 MPa / 12 Bar |
| Inlet / Outlet Connection | 1" or 1.25" Female Thread (Customizable) |
| Sensor & Vent Ports | 1/2" Female Thread |
| Drain Port | 3/4" Female Thread |
| Base Support | Moisture-proof bottom pallet included |

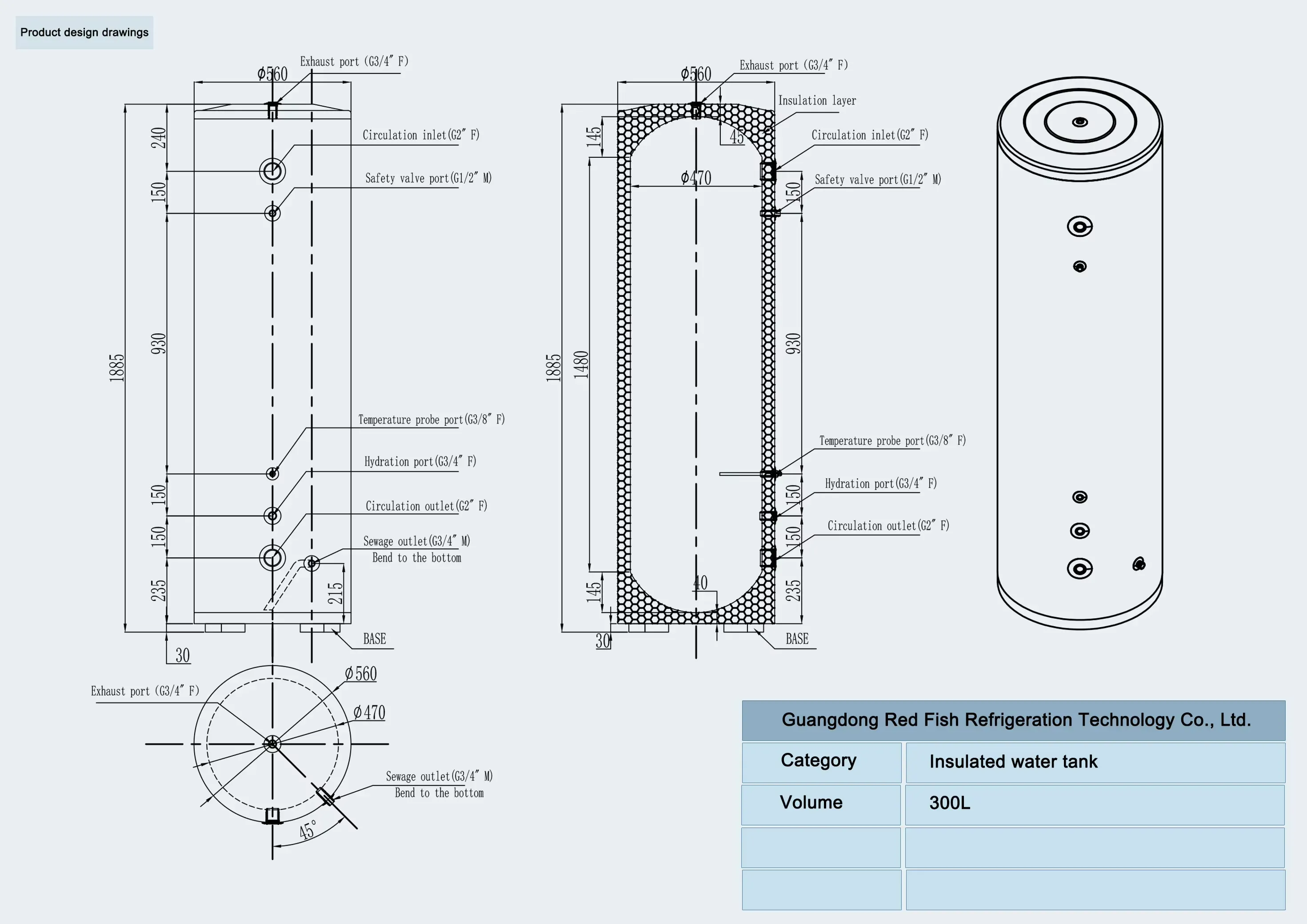

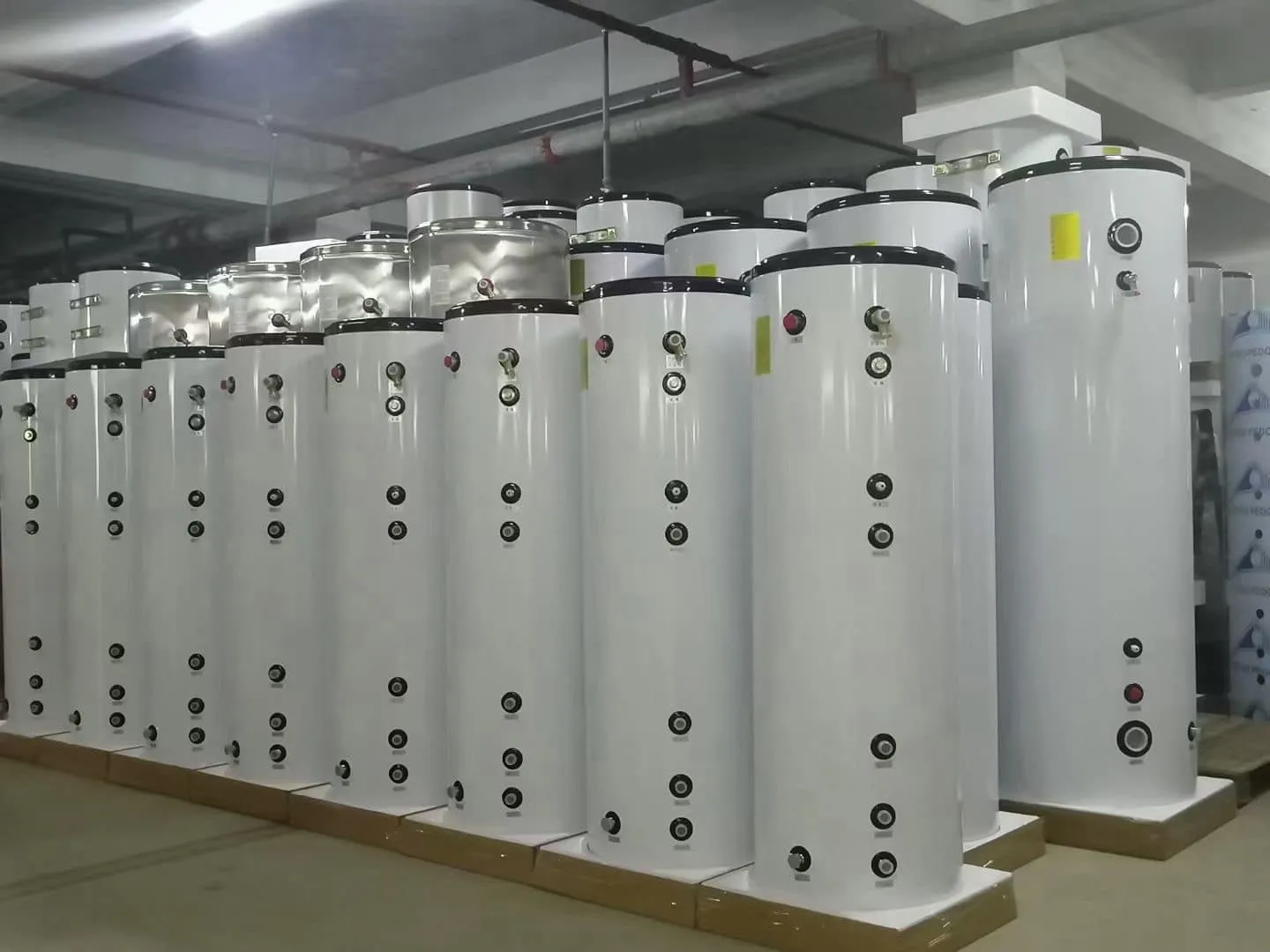

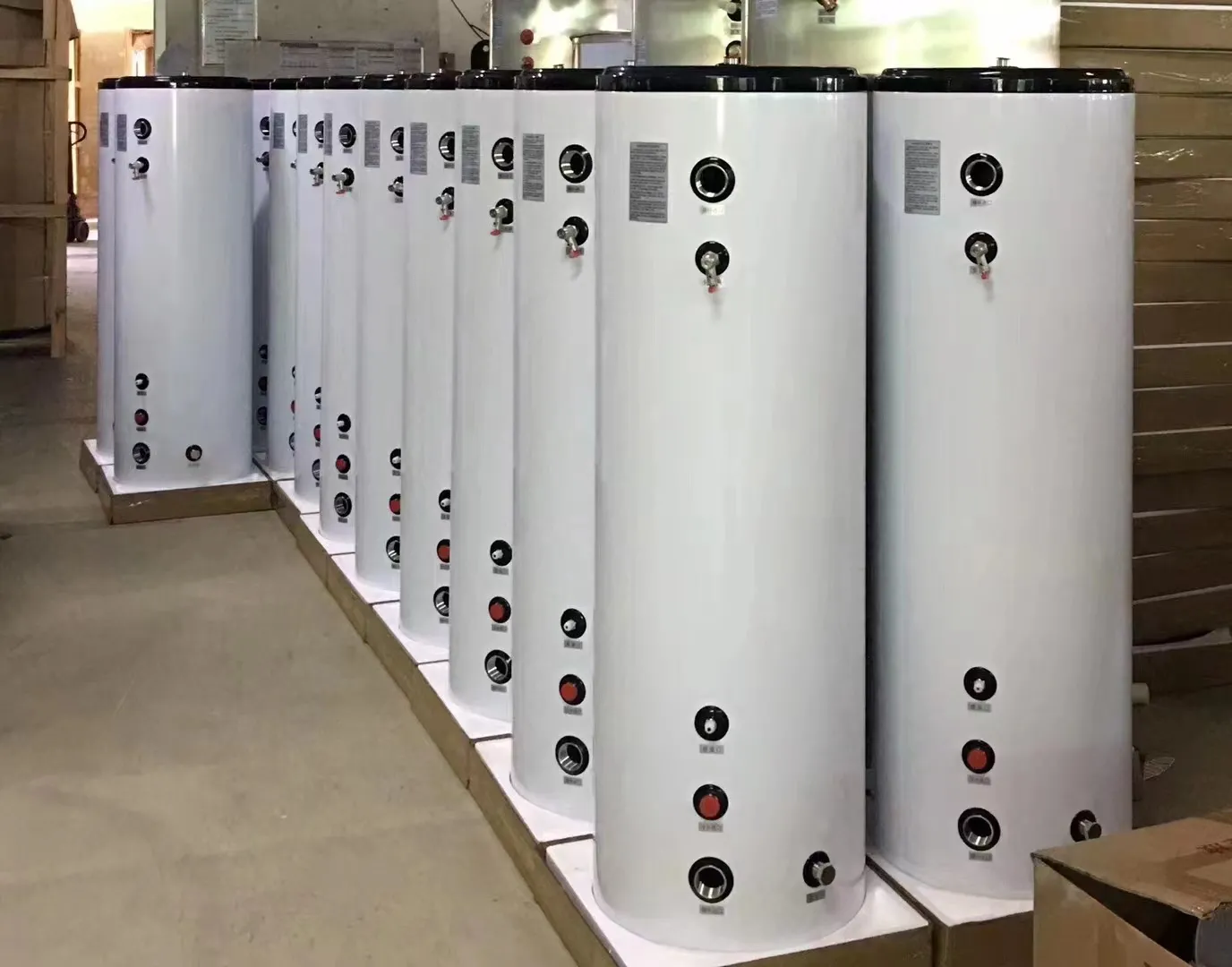

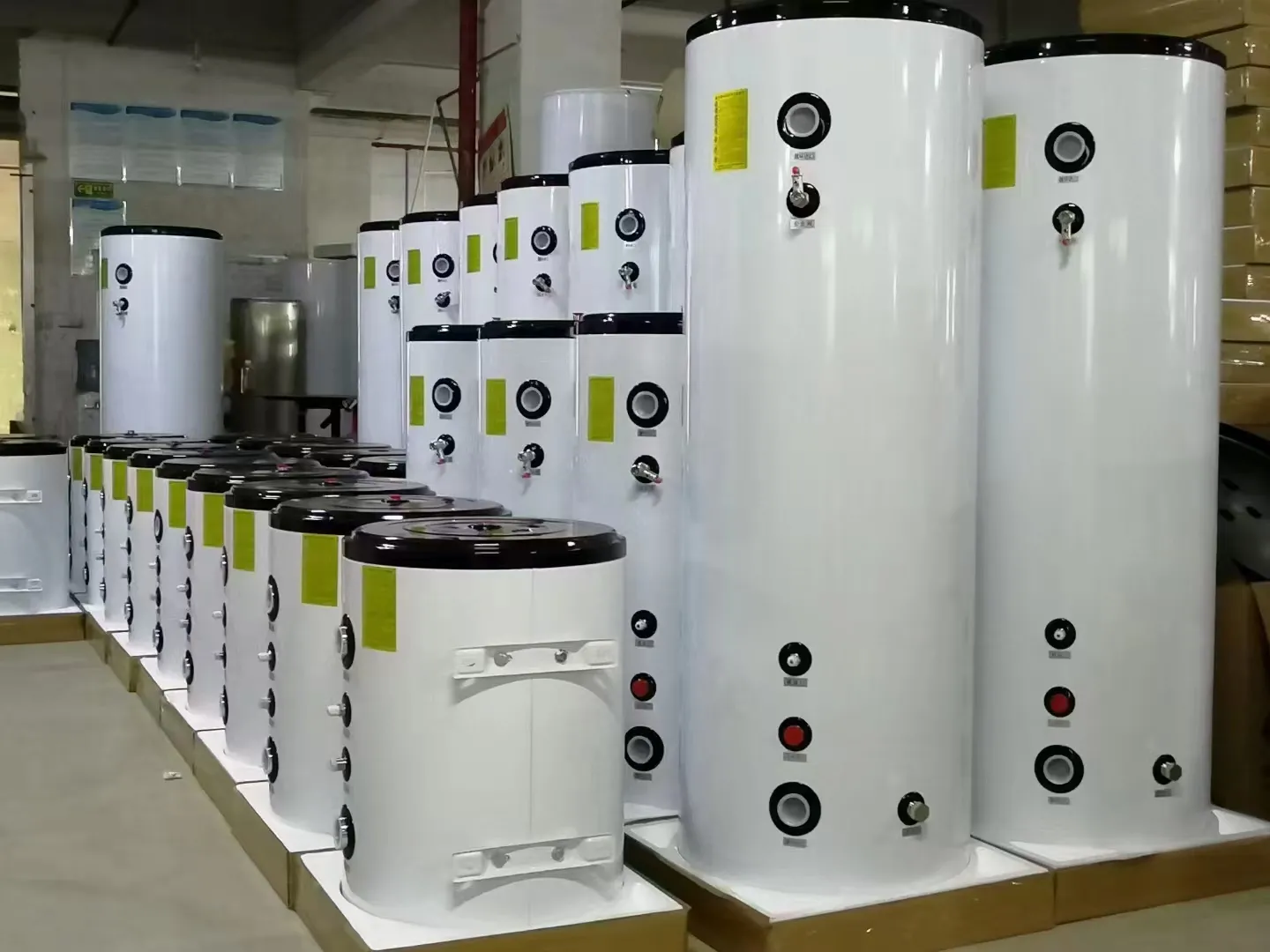

⚡ Factory Direct Supply: 300L Premium Pressurized Vertical Buffer Tank ⚡
Our premium 300 Liters pressurized vertical buffer tanks are engineered to increase the water volume of hydronic heating and cooling systems. By optimizing thermal storage, these tanks effectively prevent frequent compressor cycling, stabilize system temperatures, and significantly extend the lifespan of your heat pump or chiller system.
| Parameter / Item | Technical Specification Details |
|---|---|
| Model / Nominal Capacity | 300 Liters (79.2 Gallons) |
| Tank Type & Orientation | Vertical Floor-Standing |
| Inner Tank Material | Food-grade SUS304 Stainless Steel / Heavy-duty Enameled Steel |
| Outer Shell Material | Painted Galvanized Steel / Premium Anti-corrosion Color Steel |
| Insulation Layer | 50mm - 60mm High-Density Polyurethane (PU) Integral Foaming |
| Max Working Pressure | 0.6 MPa / 6 Bar (0.9 MPa / 9 Bar customizable) |
| Hydraulic Test Pressure | 1.2 MPa / 12 Bar |
| Inlet / Outlet Connection | 1" or 1.25" Female Thread (Customizable) |
| Sensor & Vent Ports | 1/2" Female Thread |
| Drain Port | 3/4" Female Thread |
| Base Support | Moisture-proof bottom pallet included for easy forklift transport |
| Core Feature | Engineering & Commercial Benefits |
|---|---|
| Anti-Cycling Design | Drastically reduces compressor start/stop frequency for 3HP to 5HP systems, significantly reducing energy consumption and equipment wear. |
| Thermal Insulation | Premium polyurethane foam layer ensures minimal standby heat or cold loss, maintaining stable water temperature under extreme weather conditions. |
| Hydraulic Separation | Acts as a highly efficient low-loss header to balance flow rates and eliminate hydraulic interference between primary and secondary loops. |
| System Integration | Multi-port configuration allows flawless connection to air-source heat pumps, central air conditioning chillers, solar thermal fields, and biomass boilers. |
Best Matched Equipment: Ideal for 3HP / 5HP air-to-water heat pumps, commercial water chillers, and underfloor radiant heating systems.
Full B2B Customization: We fully support customized port configurations (e.g., DN40 Flange, customized thread sizes), custom tank dimensions, and private brand logo labeling.
