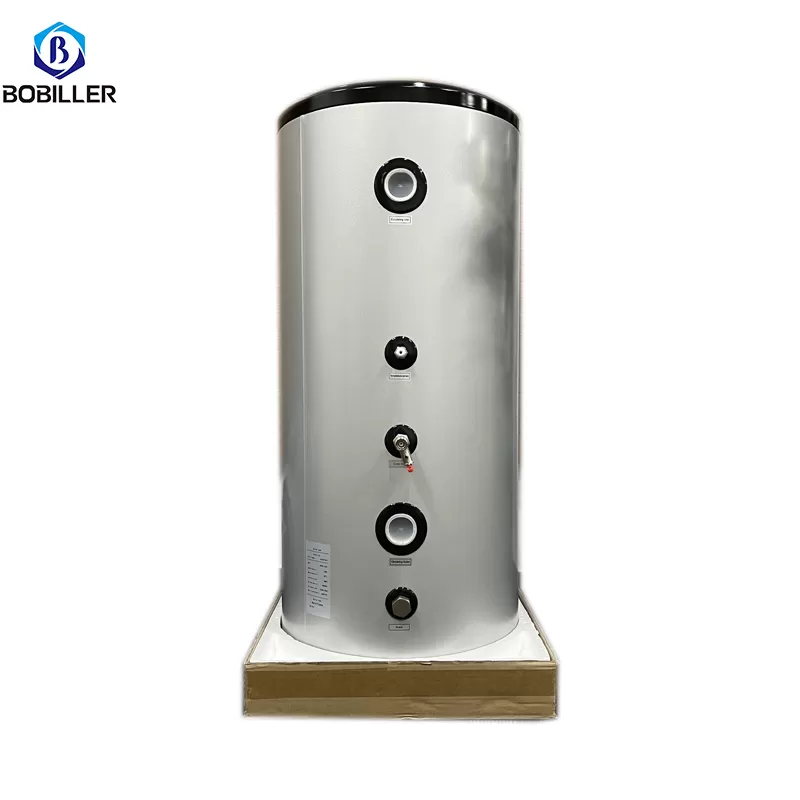

Series:40-500L
Materail :SUS 304
SUS304 Inner tank is strong and durable, long service life.
Fast heating, long-lasting heat storage, safe and efficient
| Model | B-40L | B-60L | B-80L | B-100L | B-150L | B-200L | B-250L | B-300L | B-400L | B-500L |
| Tank type | Buffer tank | Buffer tank | Buffer tank | Buffer tank | Buffer tank | Buffer tank | Buffer tank | Buffer tank | Buffer tank | Buffer tank |
| Capacity (L) | 40 | 60 | 80 | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
| Liner material | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 |
| Liner thickness (mm) | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.2 | 1.4 | 1.4 | 1.5 | 1.5 |
| Shell material | Color steel plate | Color steel plate | Color steel plate | Color steel plate | Color steel plate | Color steel plate | Color steel plate | Color steel plate | Color steel plate | Color steel plate |
| Shell thickness | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Coil material | / | / | / | / | / | / | / | / | / | / |
| Coil Type | / | / | / | / | / | / | / | / | / | / |
| Coil Specifications | / | / | / | / | / | / | / | / | / | / |
| Coil thickness (mm) | / | / | / | / | / | / | / | / | / | / |
| Coil area (㎡) | / | / | / | / | / | / | / | / | / | / |
| Cold water import | / | / | / | / | / | / | / | / | / | / |
| Hot water outlet | / | / | / | / | / | / | / | / | / | / |
| Circular import | G6/4" F | G6/4" F | G6/4" F | G6/4" F | G6/4" F | G6/4" F | G6/4" F | G2" F | G2" F | G2" F |
| Circular outlet | G6/4" F | G6/4" F | G6/4" F | G6/4" F | G6/4" F | G6/4" F | G6/4" F | G2" F | G2" F | G2" F |
| Water return | / | / | / | / | / | / | / | / | / | / |
| Water filling | / | / | / | / | / | / | / | / | / | / |
| Exhaust vent | G1/2" F | G1/2" F | G1/2" F | G1/2" F | G1/2" F | G1/2" F | G1/2" F | G3/4" F | G3/4" F | G3/4" F |
| Electric heater | / | / | / | / | / | / | / | / | / | / |
| Electric heating | / | / | / | / | / | / | / | / | / | / |
| Electric heating controller | / | / | / | / | / | / | / | / | / | / |
| Temperature probe | / | / | / | / | / | / | / | / | / | / |
| Temperature pressure gauge | / | / | / | / | / | / | / | / | / | / |
| Anode rod mouth | / | / | / | / | / | / | / | / | / | / |
| P/TP valve port | / | / | / | / | / | / | / | / | / | / |
| Safety valve | G1/2" M | G1/2" M | G1/2" M | G1/2" M | G1/2" M | G1/2" M | G1/2" M | G1/2" M | G1/2" M | G1/2" M |
| Sewage outlet | G3/4" M | G3/4" M | G3/4" M | G3/4" M | G3/4" M | G3/4" M | G3/4" M | G3/4" M | G3/4" M | G3/4" M |
| Working pressure (bar) | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Insulation | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane |
| Insulation layer thickness (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 45 | 45 | 50 | 50 |
| Product size (mm) | φ470*555 | φ470*705 | φ470*915 | φ470*1085 | φ470x1520 | φ520x1585 | φ560x1600 | φ560x1880 | φ700x1600 | φ700x1840 |
| Packaging size (mm) | 540*540*570 | 540*540*720 | 540*540*990 | 540*540*1100 | 540*540*1530 | 595*595*1590 | 630*630*1670 | 630*630*1950 | 780*780*1670 | 780*780*1950 |
